The free throttle switch can only be used
when the control lever is in the neutral posi-
tion.
During operation the digital electronic con-
trol-active indicator changes from continu-
ously lit to blinking. When the indicator starts
blinking, the throttle begins to open after the
control lever is moved at least 22.5.
After using the free throttle switch, return the
control lever to the neutral position. The free
throttle switch will return automatically to its
set position. The digital electronic control-ac-
tive indicator will change from blinking to
continuously lit and the digital electronic con-
trol will then engage forward and reverse
normally.
EMU35872
Throttle friction adjuster
A friction device provides adjustable resis-
tance to movement of the control lever, and
can be set according to operator preference.
To increase resistance, turn the adjuster
clockwise. To decrease resistance, turn the
adjuster counterclockwise.
EWM01770
● If the friction is too small, the control le-
ver could move freely and cause an ac-
cident.
● Do not overtighten the friction adjuster.
If there is too much resistance, it could
be difficult to move the control lever,
which could result in an accident.

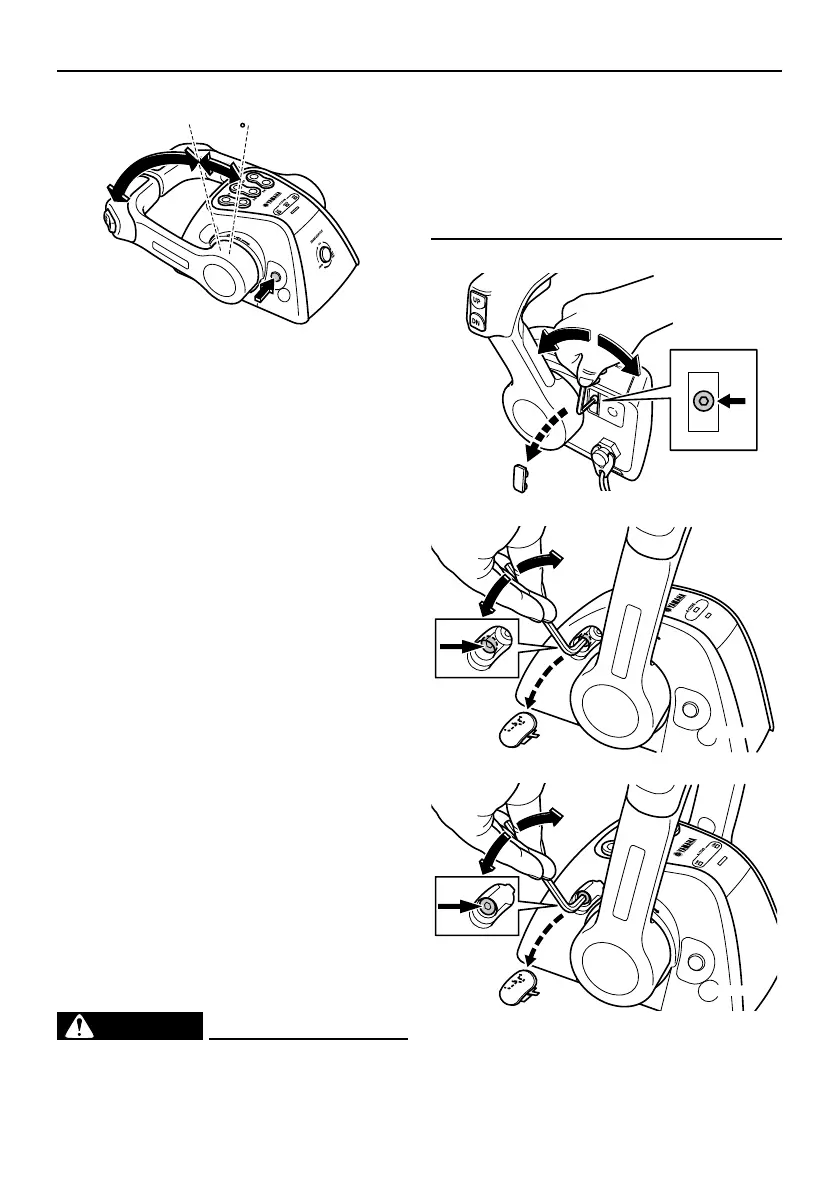

Single type
Single type
Twin type
1. Fully open
2. Fully closed
3. Free accelerator
