Instruments and indicators
EMU41781

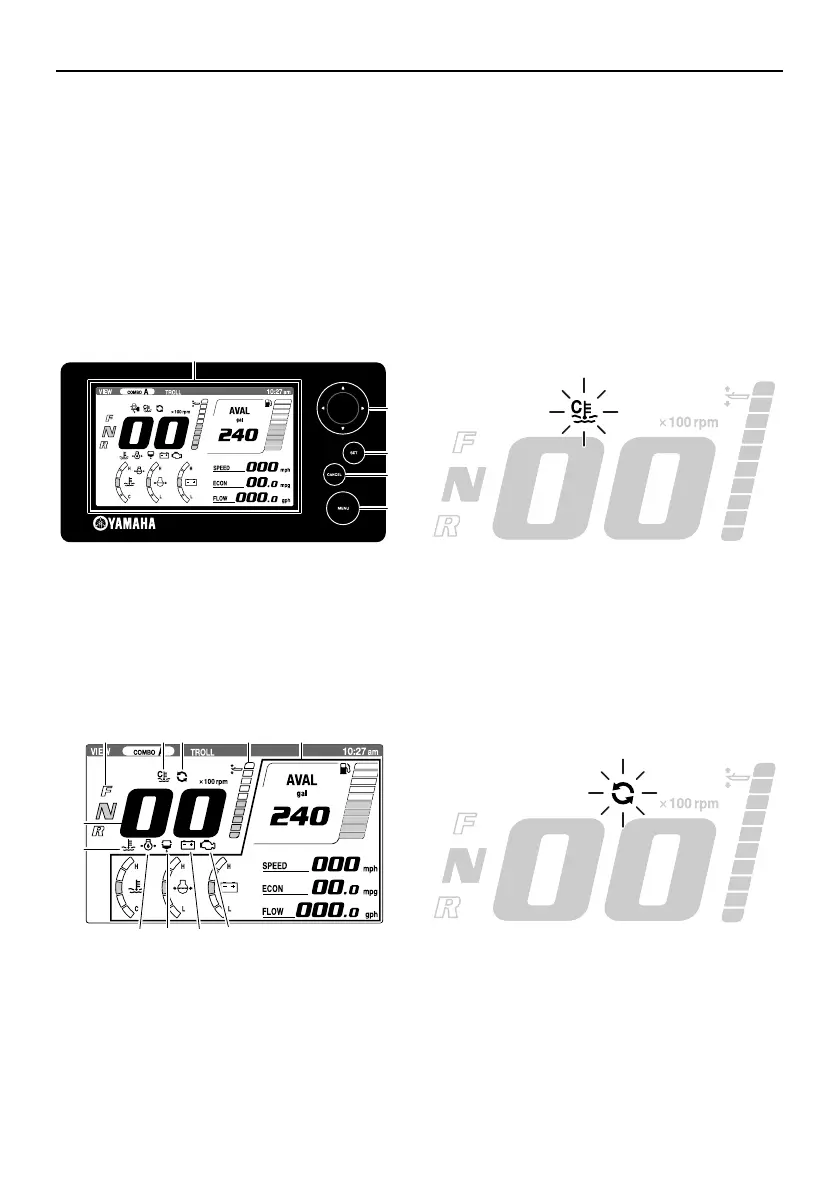

6Y9 Multifunction Color Gauge
The 6Y9 Multifunction Color Gauge (herein-
after called the Multi-Display) shows engine
status and alert information. The display of
optional items can be changed. This manual
mainly covers the alert display. For informa-
tion on other settings or changing the dis-
play, see the 6Y9 Multifunction Color Gauge
owner’s manual.
EMU41650
Engine warm-up indicator
This indicator appears while the engine is
being warmed up and goes off when warm-
ing-up is finished.
EMU42090
Engine synchronization indicator
In multiple engine types, this display appears
while the engines are under engine synchro-
nization control. It goes off when engine syn-
chronization control is released.
EMU41680
Overheat alert
If the engine temperature rises too high while
cruising, the pop-up window will appear.
1. Arrow keys
2. Set button
3. Cancel button
4. Menu button
5. Display
1. Shift position display
2. Engine warm-up indicator
3. Engine synchronization indicator
4. Trim meter
5. Optional items
1
2
3
4
5
ZMU07233
4321 5
6
7
8
9
11
10
ZMU07258
6. Engine trouble-alert indicator
7. Low battery voltage-alert indicator
8. Water separator-alert indicator
9. Low oil pressure-alert indicator
10. Overheat-alert indicator
11. Tachometer
ZMU07236
ZMU07237
