Operation
52
EMU36941

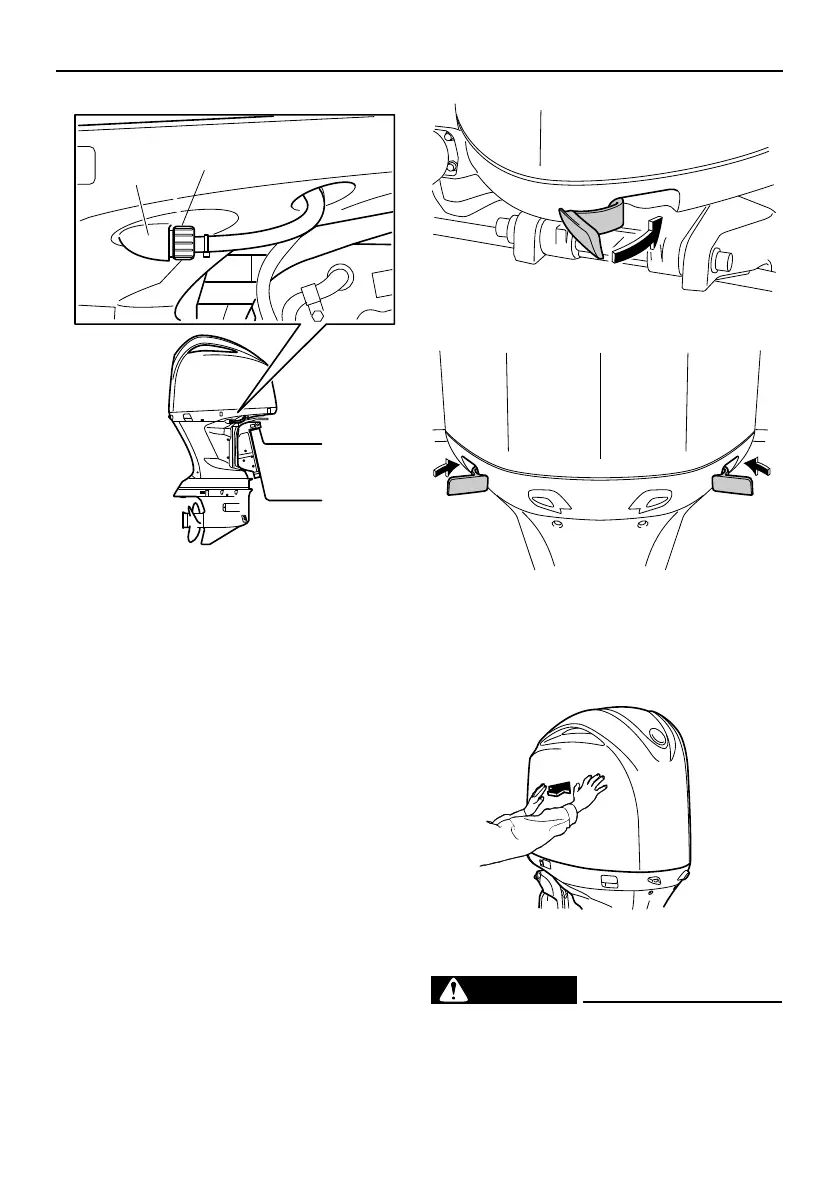

Install cowling
1. Be sure that all cowling lock levers are
released.
2. Be sure that the rubber seal is seated all
the way around the engine.
3. Place the cowling on top of the seal.
4. Check to be sure it fits properly in the
rubber seal.
5. Move the levers to lock the cowling as
shown. NOTICE: If the top cowling is
not installed correctly, water spray
under the top cowling can damage
the engine, or the top cowling can
blow off at high speeds.
[ECM01991]
After installing, check the fitting of the top
cowling by pushing it with both hands. If the
top cowling is loose, have it repaired by your
Yamaha dealer.
EMU35243
Checking power trim and tilt system
EWM01930
● Never get under the lower unit while it
is tilted, even when the tilt support lever
is locked. Severe injury could occur if
1. Fitting
2. Flushing device
6AW-9-25-1E0 52 ページ ２０１０年３月１６日 火曜日 午後５時４５分
