Components
33
EMU35851

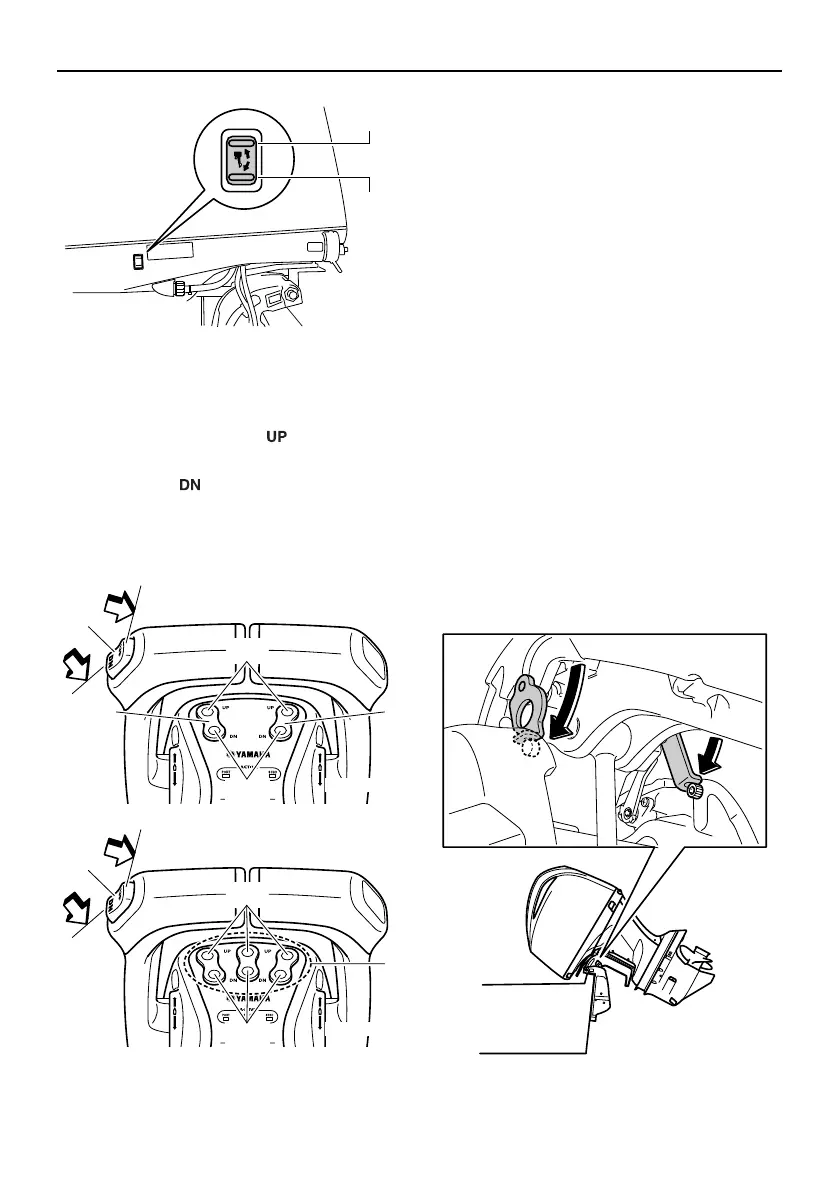

Power trim and tilt switches
The power trim and tilt system adjusts the
outboard motor angle in relation to the tran-
som. Pushing the switch “ ” (up) trims the
outboard motor up, and then tilts it up. Press-
ing the switch “ ” (down) tilts the outboard
motor down and trims it down. When the
switch is released, the outboard motor will
stop in its current position.
On the twin engine control, the switch on the
control grip controls both outboard motors at
the same time.
On the triple engine control, the switch on the
control grip controls all outboard motors at
the same time.
For instructions on using the power trim and
tilt switches, see pages 73 and 76.
EMU35040
Tilt limiter
This outboard motor is equipped with a tilt
limiter that controls the tilt range.
Consult your Yamaha dealer about changing
the setting.
EMU35030
Tilt support lever for power trim and
tilt model
To keep the outboard motor in the tilted up
position, lock the tilt support lever to the
clamp bracket. Make sure that the lever is
securely retained by the bolts.
1. Power trim and tilt switch
6AW-9-25-1E0 33 ページ ２０１０年３月１６日 火曜日 午後５時４５分
