Yamaha F5A - Page 106

7-13
POWR
Power unit

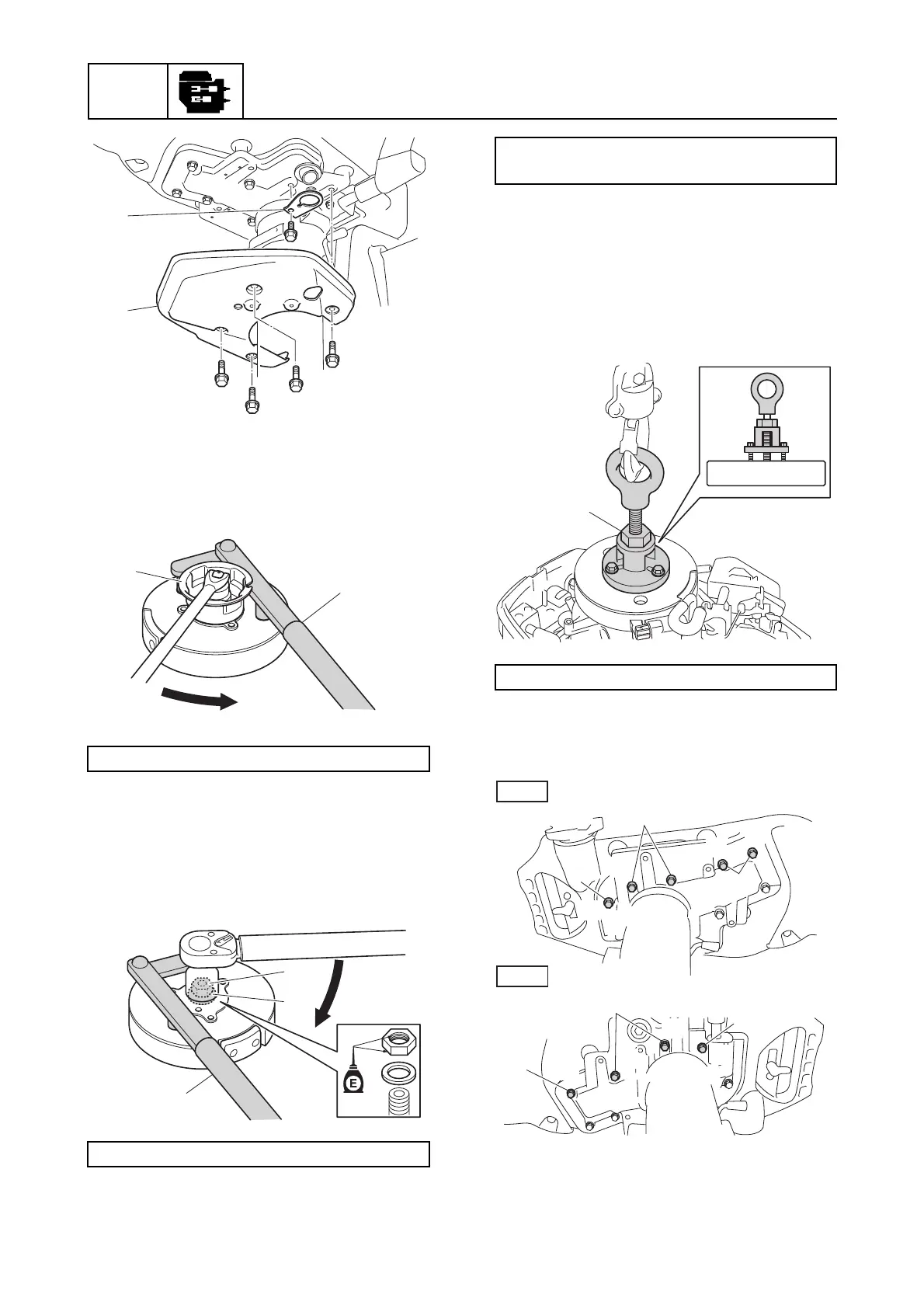

13. Remove the starter pulley w. NOTICE:
Apply force in the direction of the
arrow to prevent the flywheel holder
x from slipping off easily.
14. Install the washer y, flywheel magnet
nut z, and then tighten the flywheel
magnet nut z to the specified torque.
NOTICE: Apply force in the direction
of the arrow to prevent the flywheel
holder x from slipping off easily.
15. Install the special service tool A, and
then suspend the power unit.
NOTICE: To prevent damage to the
engine or tool, screw in the puller set
bolts evenly and completely so that
the flywheel puller is parallel to the
flywheel magnet.
16. Loosen the power unit mounting bolts B
and C in the order a, b, and so on, and
then remove the power unit assembly.
Flywheel holder x: 90890-06522
Flywheel holder x: 90890-06522
u
v
x
w
x
z
y
Flywheel magnet nut z:
60 N·m (6.0 kgf·m, 44.3 ft·lb)
Flywheel puller A: 90890-06521
A
a
b
c
d
e
f
g
h
i
B
B
B
B
C
C
STBD
PORT
