Bottom cowling
0
1
2
3
4
5
6
7
8
9
10
A

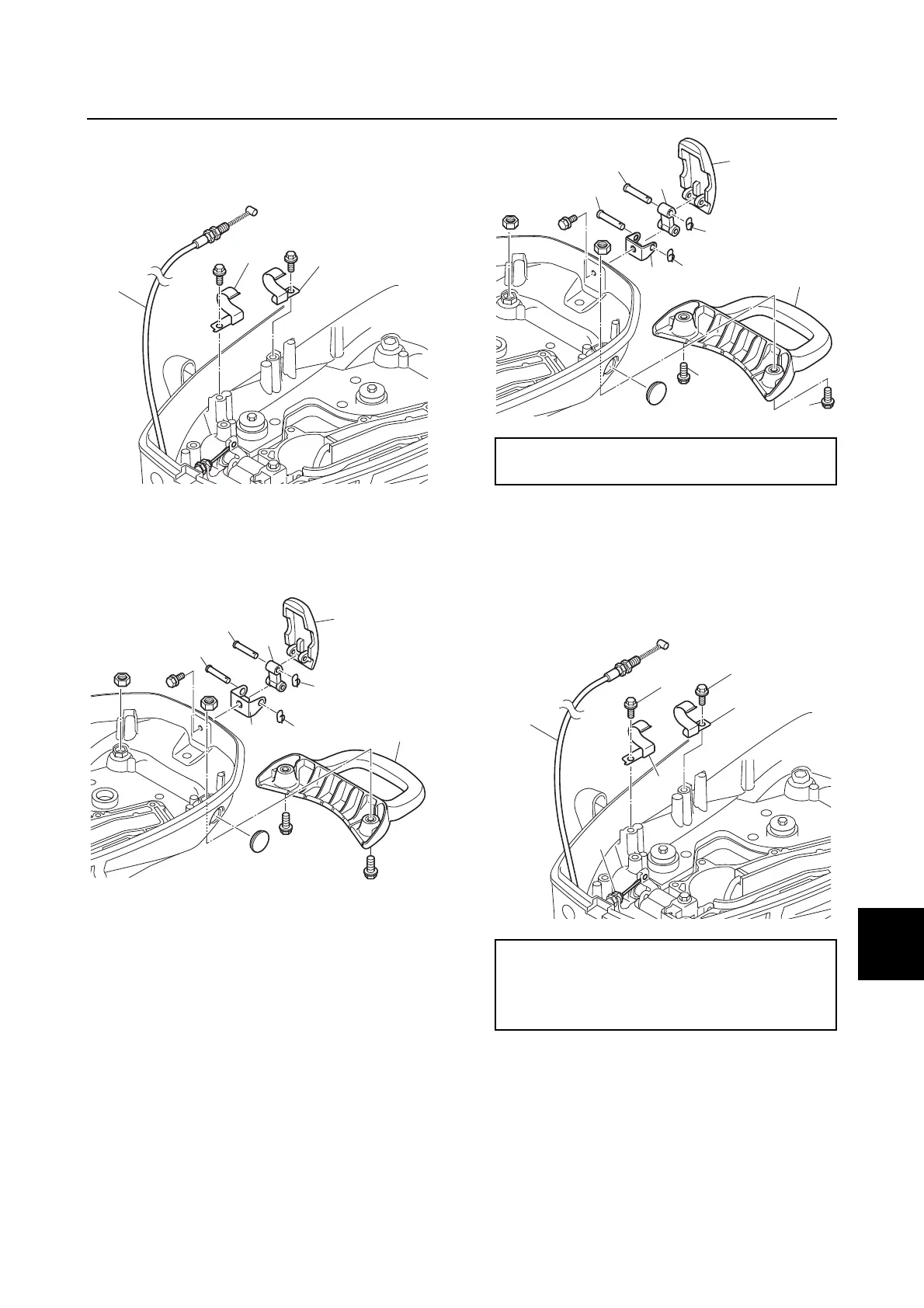

Disassembling the bottom cowling
1. Remove the start-in-gear protection
cable a and holders b and c.
2. Remove the carrying handle d.
3. Remove the clips e, pins f, cowling
lock lever g, and brackets h and i.
Assembling the bottom cowling
1. Install the brackets a, b, cowling lock
lever c, pins d, and clips e.
2. Install the carrying handle f, and then
tighten the carrying handle bolts g to the
specified torque.
3. Install the start-in-gear protection cable
h and holders i and j.
4. Tighten the start-in-gear protection cable
locknut a and primer pump holder bolts
k to the specified torque.
a
c
b
i
h
g
f
e
e
d
f
Carrying handle bolt g:
19 N·m (1.9 kgf·m, 14.0 ft·lb)
Start-in-gear protection cable locknut a:
4 N·m (0.4 kgf·m, 3.0 ft·lb)
Primer pump holder bolt k:
11 N·m (1.1 kgf·m, 8.1 ft·lb)
a
b
c
d
d
e
e
f
g
g
h
i
j
a
k
k
