Yamaha F5A - Checking the Gear Oil Level; Checking the Ignition Timing; Lubricating the Outboard Motor

10-10
General periodic maintenance
0
1
2
3
4
5
6
7
8
9
10
A

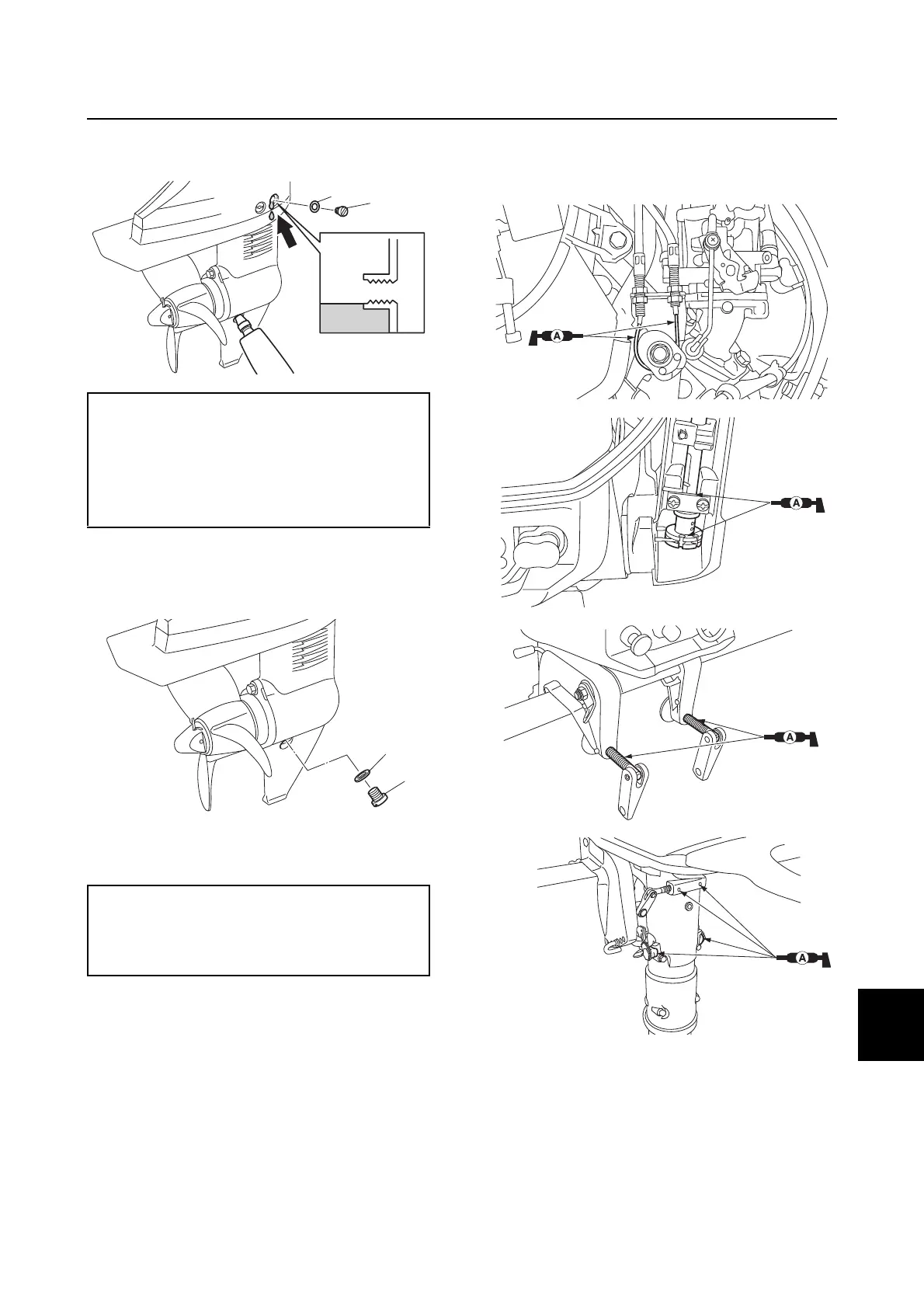

6. Install a new gasket f and the check
screw d.
7. Remove the gear oil tube, and then
install a new gasket g and the drain
screw b.
8. Tighten the check screw d and drain
screw b to the specified torque.
Checking the gear oil level
1. Check the gear oil level. See “Checking
the gear oil level” (10-4).
Checking the ignition timing
1. Check the ignition timing. See “Checking
the ignition timing” (7-1).
Lubricating the outboard motor
1. Apply water resistant grease to the spec-
ified areas.
Recommended gear oil:
Hypoid gear oil:
API: GL-4
SAE: 90
Oil quantity:
0.1 L (0.11 US qt, 0.09 lmp qt)
Check screw d:
9 N·m (0.9 kgf·m, 6.6 ft·lb)
Drain screw b:
9 N·m (0.9 kgf·m, 6.6 ft·lb)
d
f
g
b
