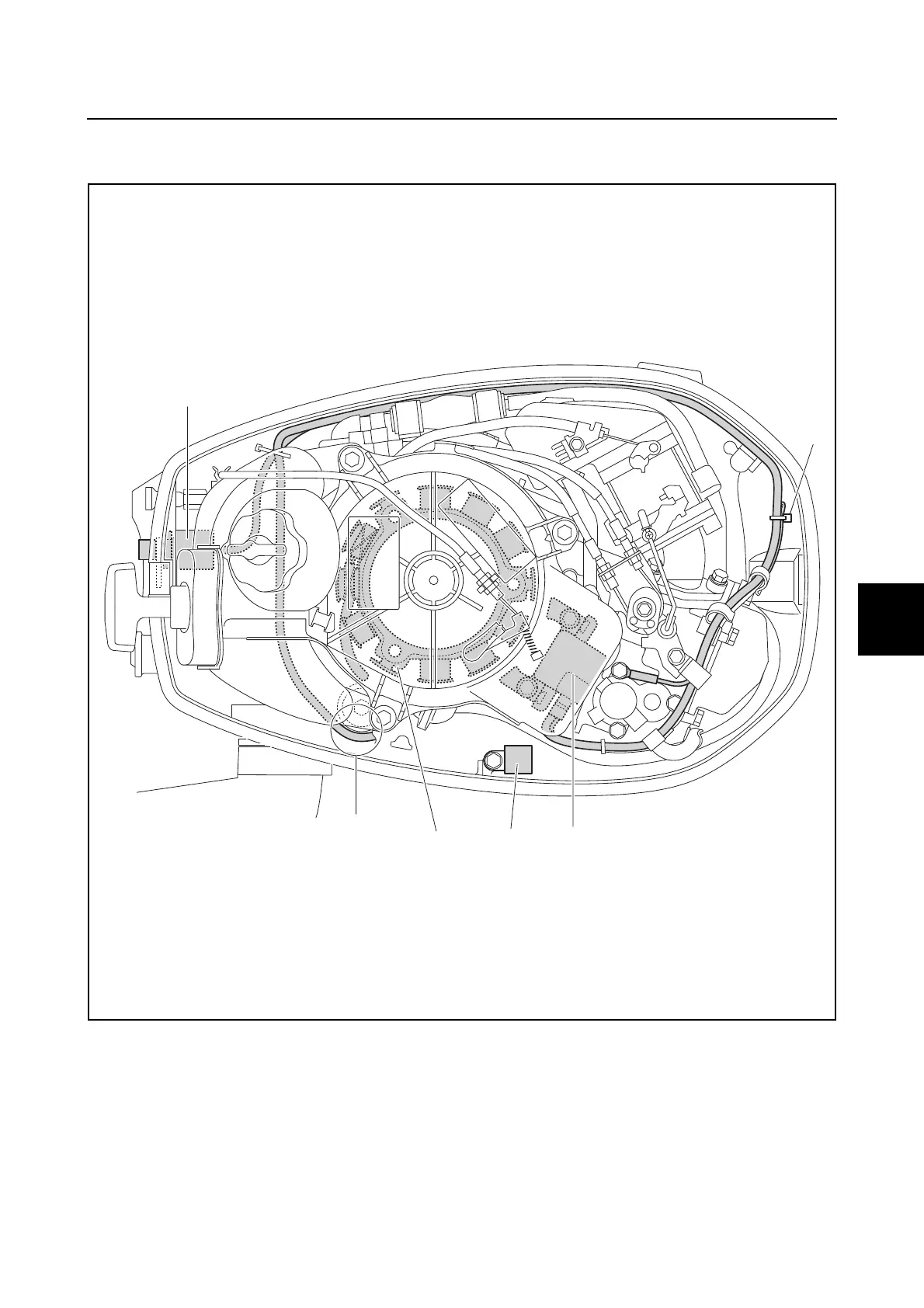

Electrical component and wiring harness routing
0
1
2
3
4
5
6
7
8
9
10
A
Top
a Engine shut-off switch
b CDI unit
c Fuse (20 A) (optional for European mar-
ket)
d Lighting coil (optional for European mar-
ket)
A Fold the holders inward so that the leads
do not come out from the holders.
B Check that the ground lead does not inter-
fere with the bolt or washer.
c
b
B
a
A
d
