Yamaha F5A - Removing the Carburetor; Removing the Throttle Cable and Throttle Link

6-12
Intake silencer
0
1
2
3
4
5
6
7
8
9
10
A

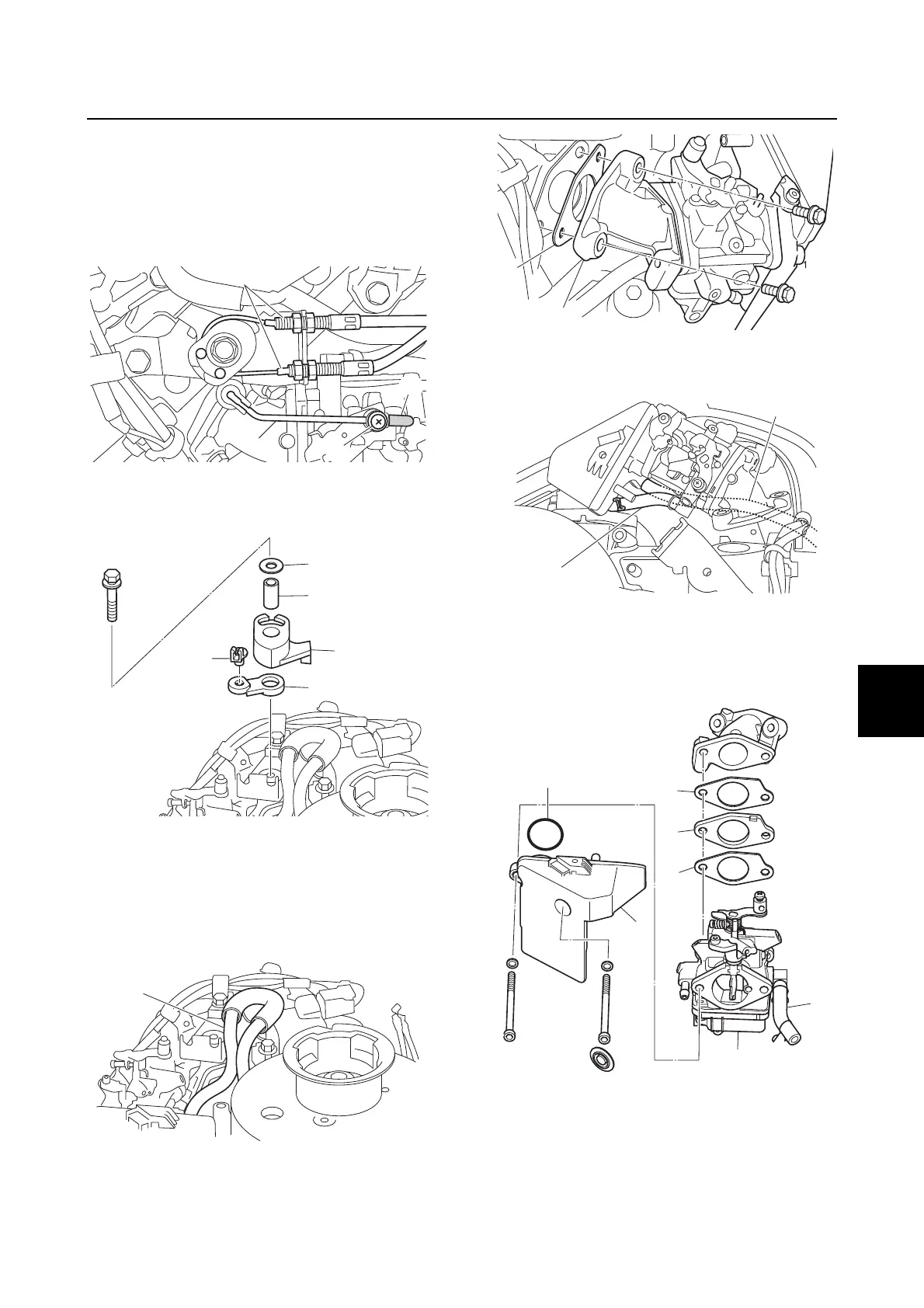

Removing the throttle cable and
throttle link
1. Loosen the screw a, and then remove
the cap b and throttle link rod c.
2. Remove the throttle cables d.
3. Remove the washer e, collar f, throttle
cam g, lever h and holder i.
Removing the carburetor
Cover the fuel components using a rag to
prevent fuel from spilling out.
1. Remove the blowby hose a.
2. Remove the intake manifold b and
gasket c.
3. Disconnect the fuel hose d and oil return
hose e.
4. Remove the intake silencer f, O-ring g,
carburetor h, gaskets i, and spacer j.
5. Remove the fuel hose k.
c
b
a
d
e
f
g
h
i
a
b
c
e
d
k
i
i
j
h
f
g
