Yamaha F5A - Cylinder Head

7-27
POWR
Power unit

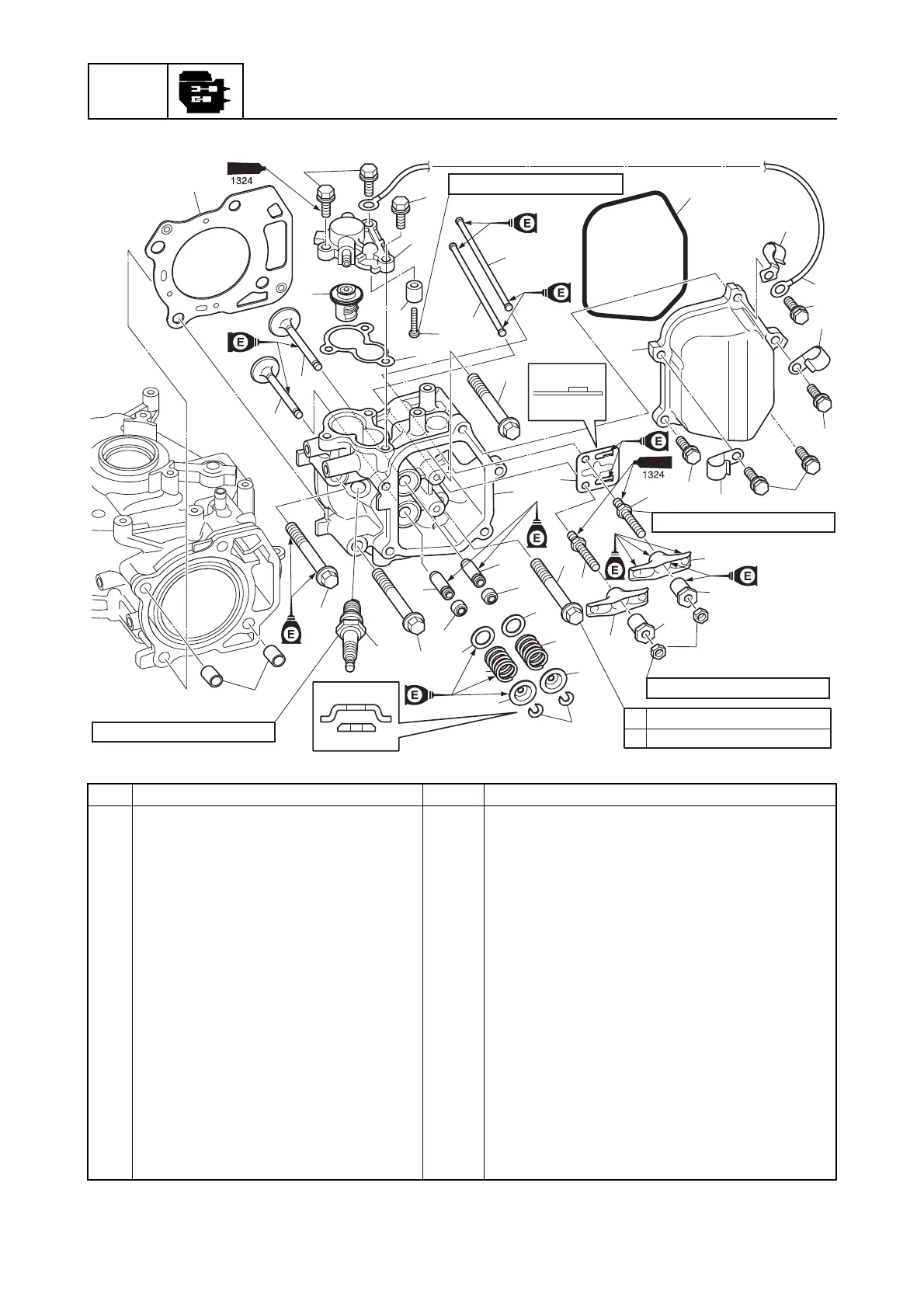

Cylinder head
No. Part name Q’ty Remarks
1Gasket 1

2Bolt 3 M6  20 mm
3 Thermostat cover 1
4Thermostat 1
5 Anode 1
6 Thermostat cover anode screw 1 M5  25 mm
7Gasket 1 
8 Push rod 2
9Gasket 1 
10 Holder 1
11 Ground lead 1
12 Bolt 5 M6  25 mm
13 Holder 2
14 Cylinder head cover 1
15 Push rod guide 1
16 Pivot bolt 2
17 Rocker arm 2
31
1
2
2
3
4
5
6
7
28
26
26
25
25
8
8
24
24
24
24
15
16
16
17
17
18
18
19
23
23
22
22
21
21
20
29
30
27
9
14
12
13
13
12
11
12
12
13 N·m (1.3 kgf·m, 9.6 ft·lb)
10 N·m (1.0 kgf·m, 7.4 ft·lb)
10 N·m (1.0 kgf·m, 7.4 ft·lb)
2 N·m (0.2 kgf·m, 1.5 ft·lb)
a
b
13 N·m (1.3 kgf·m, 9.6 ft·lb)
28 N·m (2.8 kgf·m, 20.7 ft·lb)
10
