Yamaha F5A - Checking the Forward Gear; Checking the Pinion; Disassembling the Lower Case; Removing the Drive Shaft

8-11
LOWR
Lower unit

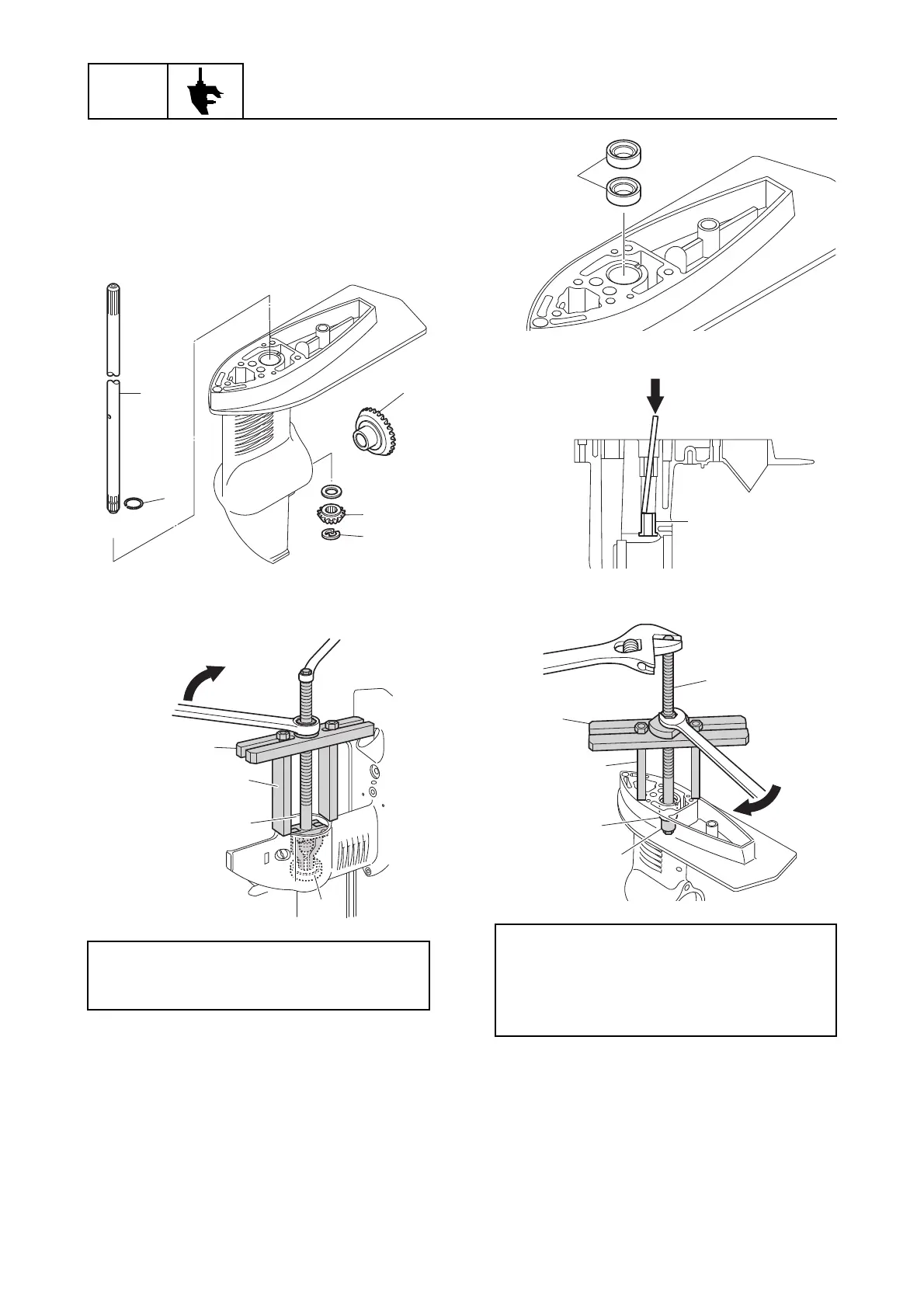

Removing the drive shaft
1. Remove the E-clip a, and then remove
the drive shaft b and pinion c.
2. Remove the clip d.
3. Remove the forward gear e.
Disassembling the lower case
1. Remove the ball bearing a.
2. Remove the oil seals e.
3. Remove the bushing f.
4. Remove the bushing g.
Checking the pinion
1. Check the teeth of the pinion. Replace if
cracked or worn.
Checking the forward gear
1. Check the teeth and dogs of the forward
gear. Replace if cracked or worn.
Stopper guide plate b: 90890-06501
Stopper guide stand c: 90890-06538
Bearing puller assembly d: 90890-06535
a
c
b
d
e
b
a
c
d
Stopper guide plate b: 90890-06501
Stopper guide stand c: 90890-06538
Bushing installer center bolt h:
90890-06601
Bushing attachment i: 90890-06650
e
f
h
b
c
g
i
