Yamaha F5A - Flywheel Magnet

7-18
Flywheel magnet
0
1
2
3
4
5
6
7
8
9
10
A

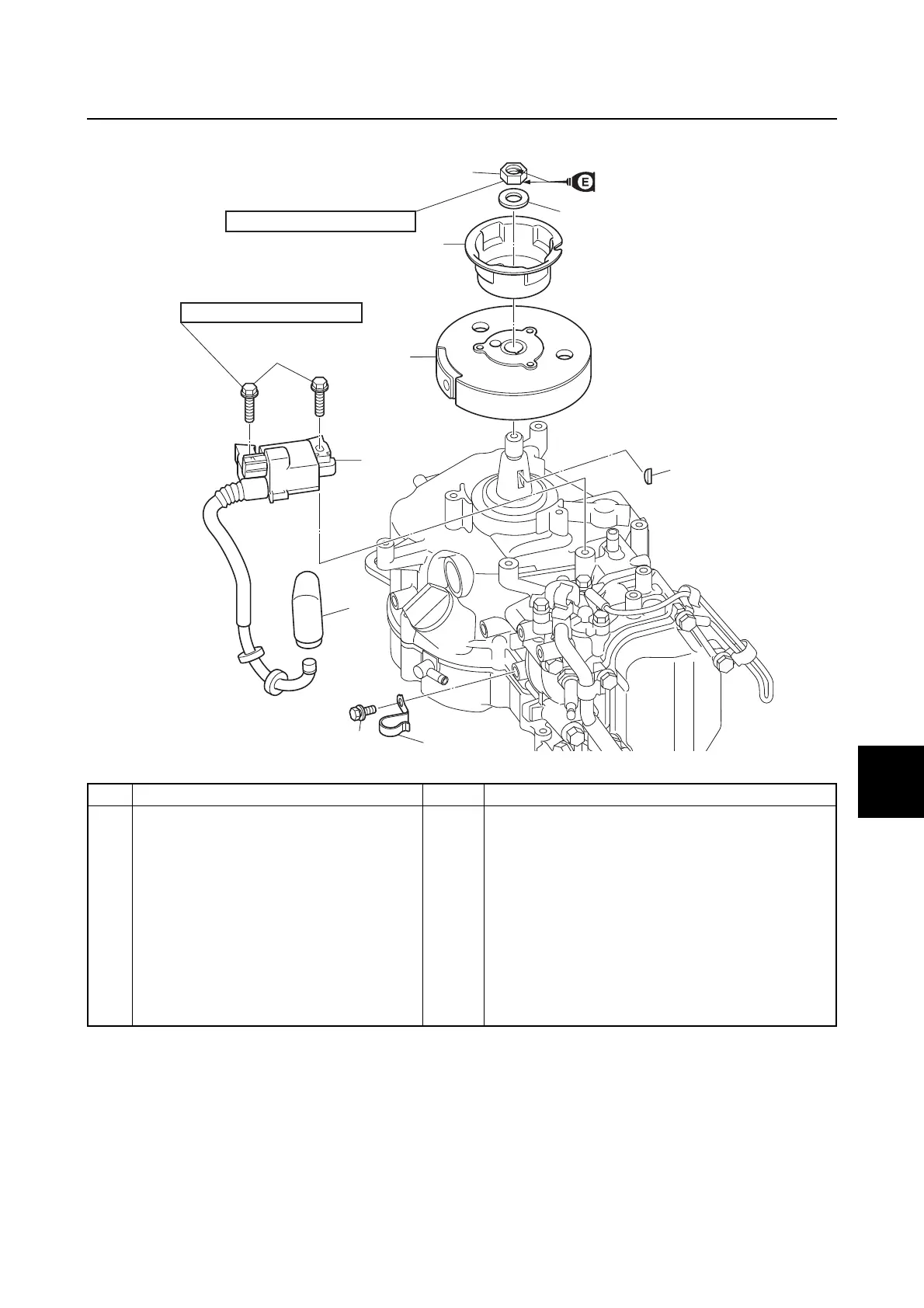

Flywheel magnet
No. Part name Q’ty Remarks
1 Flywheel magnet nut 1 Width across flats: 22 mm
2 Washer 1
3 Starter pulley 1
4 Flywheel magnet 1
5 Woodruff key 1
6 Spark plug cap 1
7 CDI unit 1
8 CDI unit bolt 2 M6  25 mm
9Bolt 1 M6  12 mm
10 Holder 1
60 N·m (6.0 kgf·m, 44.3 ft·lb)
10 N·m (1.0 kgf·m, 7.4 ft·lb)
1
2
3
4
5
7
8
6
10
9
Power unit assembly / Flywheel magnet
