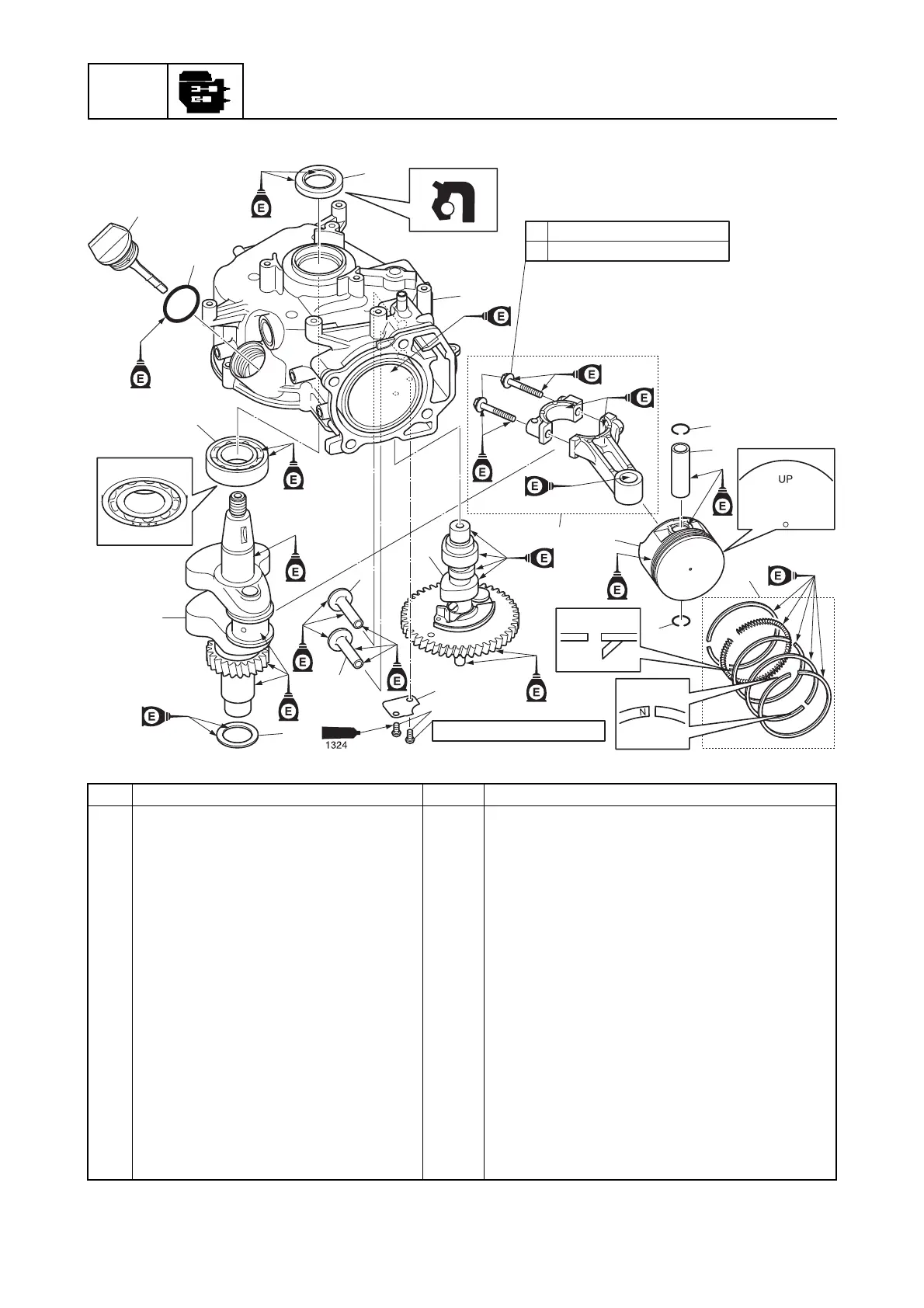

Yamaha F5A - Cylinder Block

7-39
POWR
Power unit
Cylinder block
No. Part name Q’ty Remarks
1 Oil seal 1

2 Cylinder block 1
3 Connecting rod assembly 1
4 Connecting rod bolt 2 M7  35 mm
5 Clip 2 
6 Piston pin 1
7Piston 1
8 Piston ring set 1
9Plate 1
10 Breather plate screw 2 M5  10 mm
11 Valve lifter 2
12 Camshaft 1
13 Crankshaft 1
14 Washer 1
15 Ball bearing 1 
16 O-ring 1 
17 Dipstick 1
1
2
3
4
5
5
6
7
8
9
10
11
11
12
13
14
15
a
b
6 N·m (0.6 kgf·m, 4.4 ft·lb)
12 N·m (1.2 kgf·m, 8.9 ft·lb)
16
17
8 N·m (0.8 kgf·m, 5.9 ft·lb)
