Yamaha F5A - Checking the Upper Case; Installing the Upper Case

9-12
Upper case and shift lever
0
1
2
3
4
5
6
7
8
9
10
A

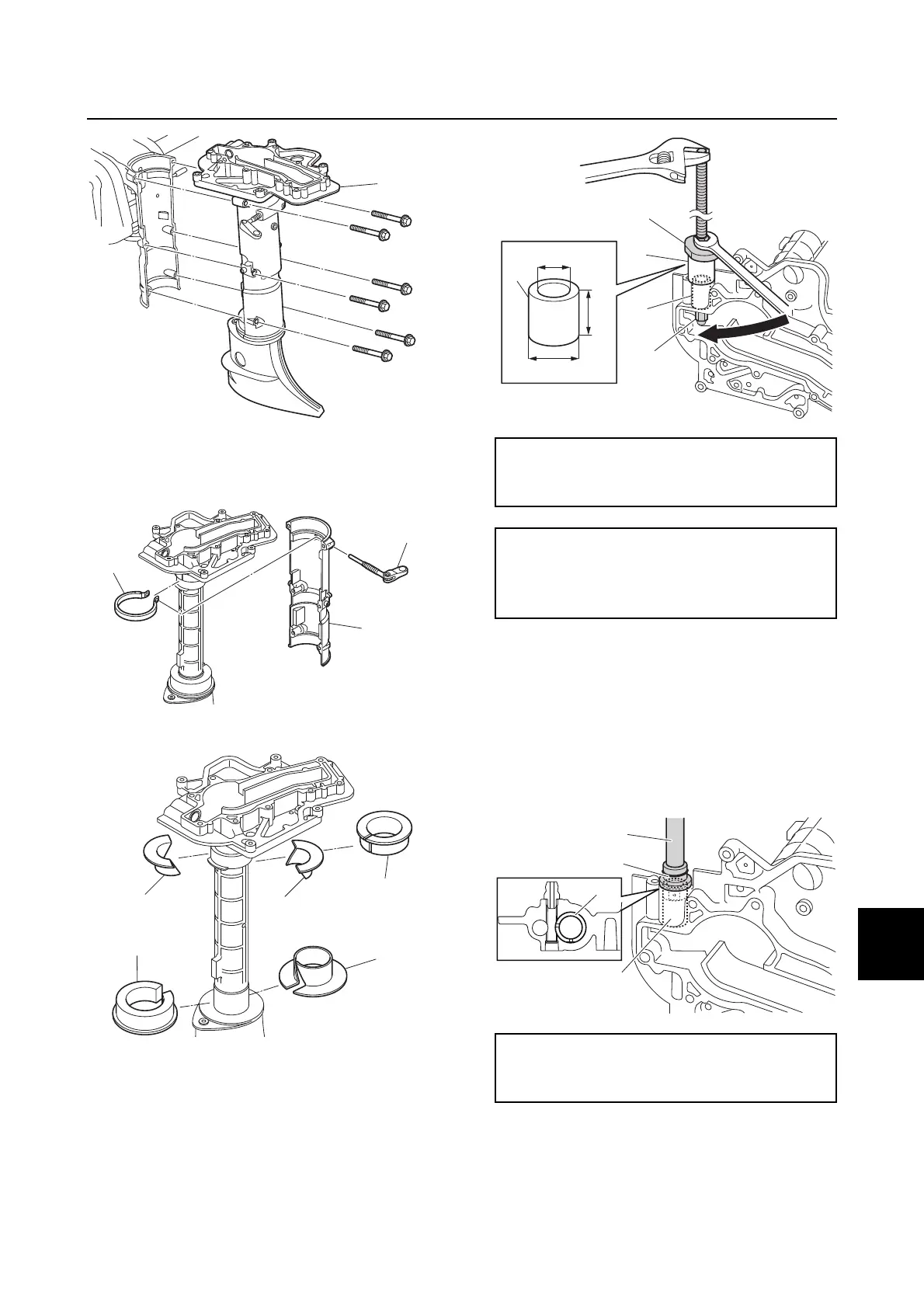

5. Remove the steering friction adjuster f,
and then remove the cover g and friction
piece h.
6. Remove the bushings i, j, k, and l.
7. Remove the bushing m.
Checking the upper case
1. Check the upper case. Replace if
cracked or eroded.
Installing the upper case
1. Install a new bushing a. NOTICE: Do
not reuse a bushing, always replace it
with a new one.
2. Install the bushings d and e.
e
h
g
f
i
j
l
l
k
Bushing installer center bolt n:
90890-06601
Bushing attachment o: 90890-06650
Pipe p (reference):
b: 12.0 mm (0.5 in)
c: 16.0 mm (0.7 in)
d: 37.0 mm (1.5 in)
Driver rod L3 b: 90890-06652
Needle bearing attachment c:
90890-06615
n
p
b
c
d
o
m
p
a
b
c
a
