8-1
LOWR

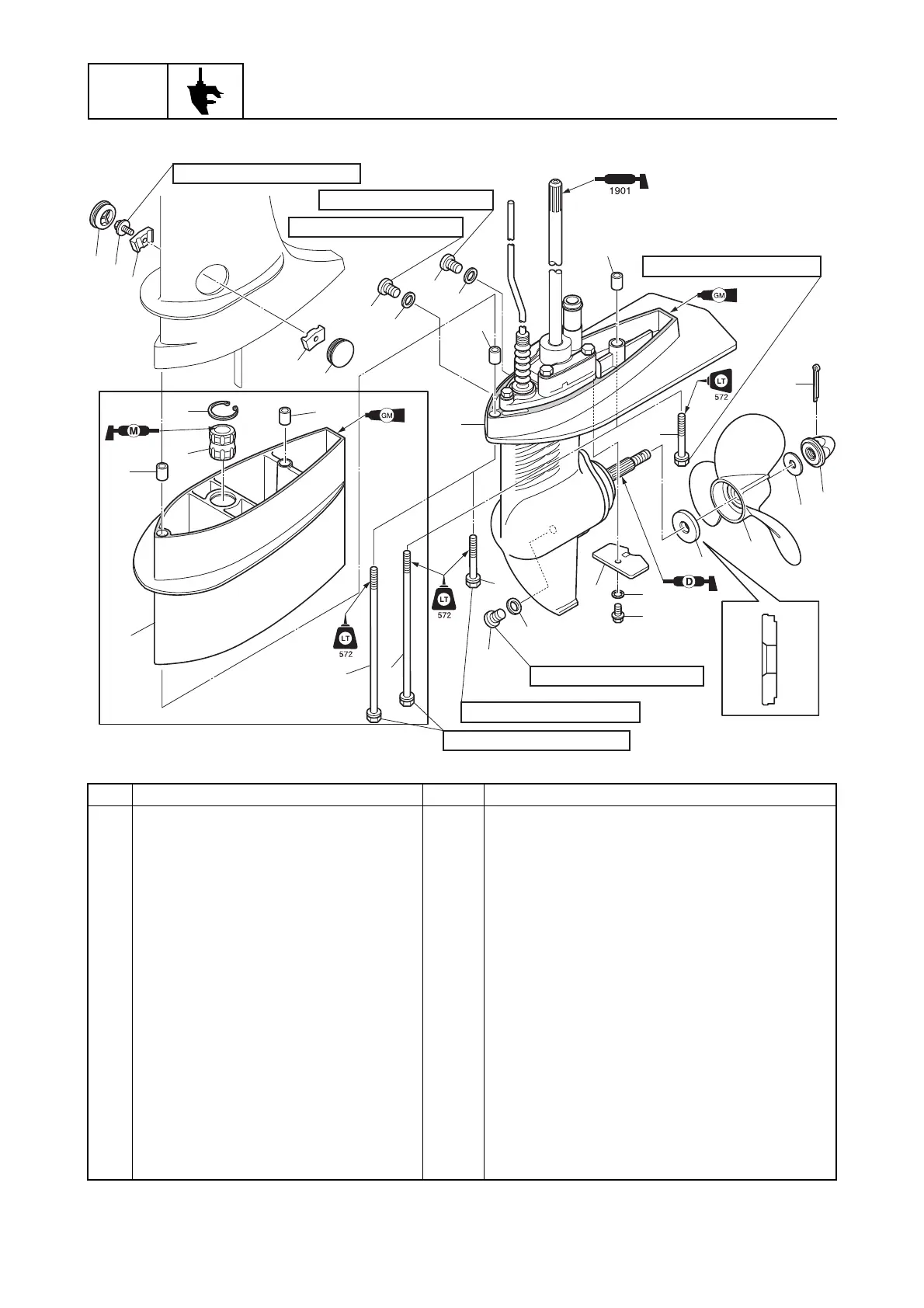

Lower unit
Lower unit
No. Part name Q’ty Remarks
1Cover 2
2 Shift joint bolt 1 M6  20 mm
3 Joint 1
4 Joint 1
5 Check screw 1
6Gasket 3 
7 Flushing screw 1
8Dowel 2
9 Cotter pin 1 
10 Propeller nut 1
11 Washer 1
12 Propeller 1
13 Spacer 1
14 Lower case mounting bolt 2 M6  40 mm
15 Lock washer 1
16 Bolt 1 M6  20 mm
17 Anode 1
A
1
1
2
3
4
23
8
8
23
22
21
19
19
5
6
11
14
14
18
6
17
15
16
13
12
11
10
9
16 N·m (1.6 kgf·m, 11.8 ft·lb)
15N·m (1.5 kgf·m, 11.1 ft·lb)
11N·m (1.1 kgf·m, 8.1 ft·lb)
9 N·m (0.9 kgf·m, 6.6 ft·lb)
9 N·m (0.9 kgf·m, 6.6 ft·lb)
9 N·m (0.9 kgf·m, 6.6 ft·lb)
7
6
20
11N·m (1.1 kgf·m, 8.1 ft·lb)
A L-transom model
