Yamaha F5A - Page 162

9-1
BRKT

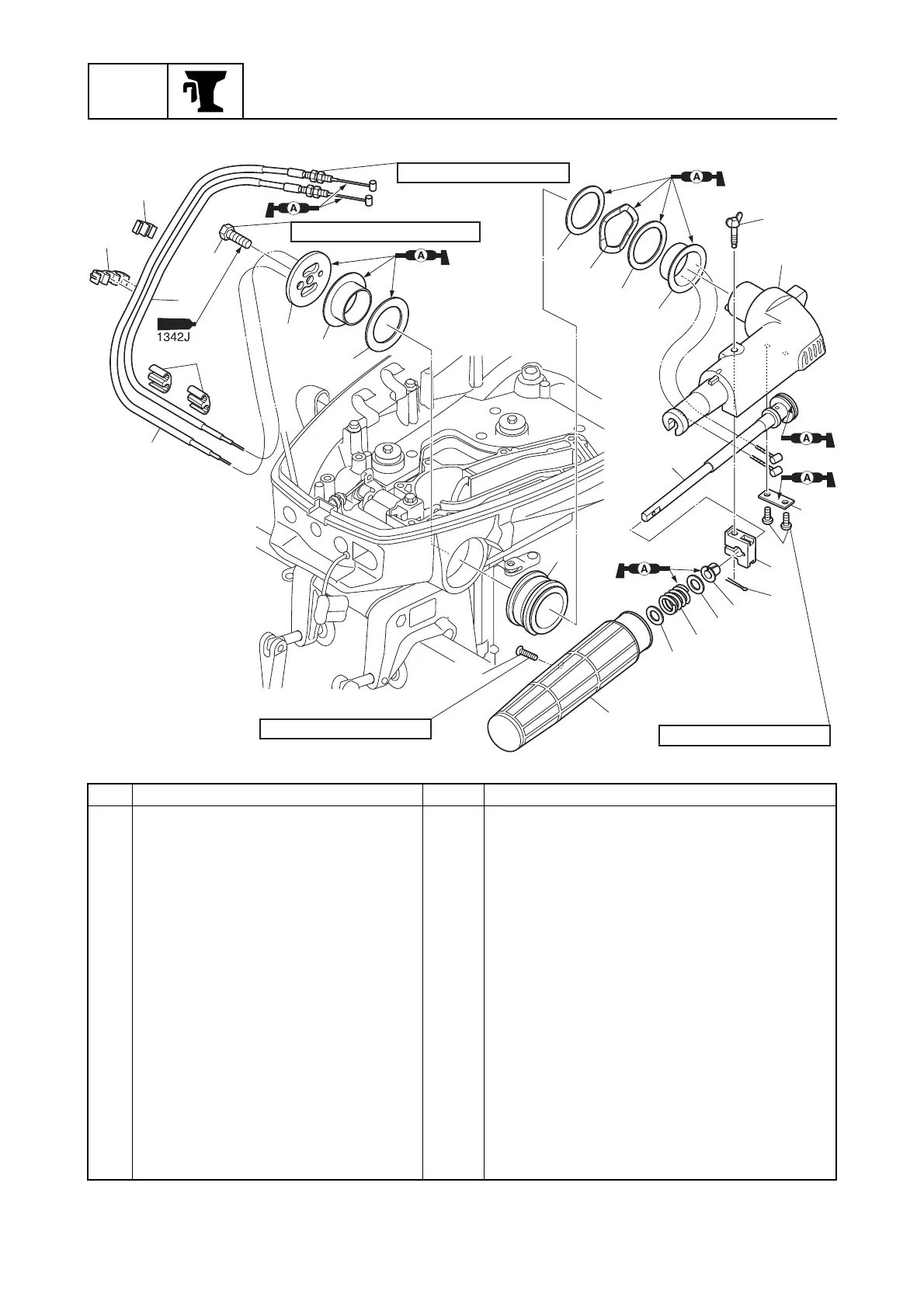

Bracket unit
Tiller handle
No. Part name Q’ty Remarks
1 Holder 1
2 Holder 1
3 Throttle cable 2
4 Holder 2
5 Tiller handle mounting bolt 1 M8  25 mm
6Plate 1
7 Bushing 1
8 Washer 1
9 Washer 2
10 Wave washer 1
11 Bushing 1
12 Throttle friction adjuster 1
13 Tiller handle 1
14 Throttle rod 1
15 Plate 1
16 Throttle rod screw 2 M5  12 mm
17 Friction piece 1
2
1
5
3
6
7
8
4
3
24
20
21
20
19
18
23
22
17
14
16
15
13
12
10
9
9
11
28 N·m (2.8 kgf·m, 20.7 ft·lb)
4 N·m (0.4 kgf·m, 3.0 ft·lb)
4 N·m (0.4 kgf·m, 3.0 ft·lb)
4 N·m (0.4 kgf·m, 3.0 ft·lb)
