7-4
Power unit (check and adjustment)
0
1
2
3
4
5
6
7
8
9
10
A
Do not turn the flywheel magnet counter-
clockwise. Otherwise, the water pump
impeller could be damaged.

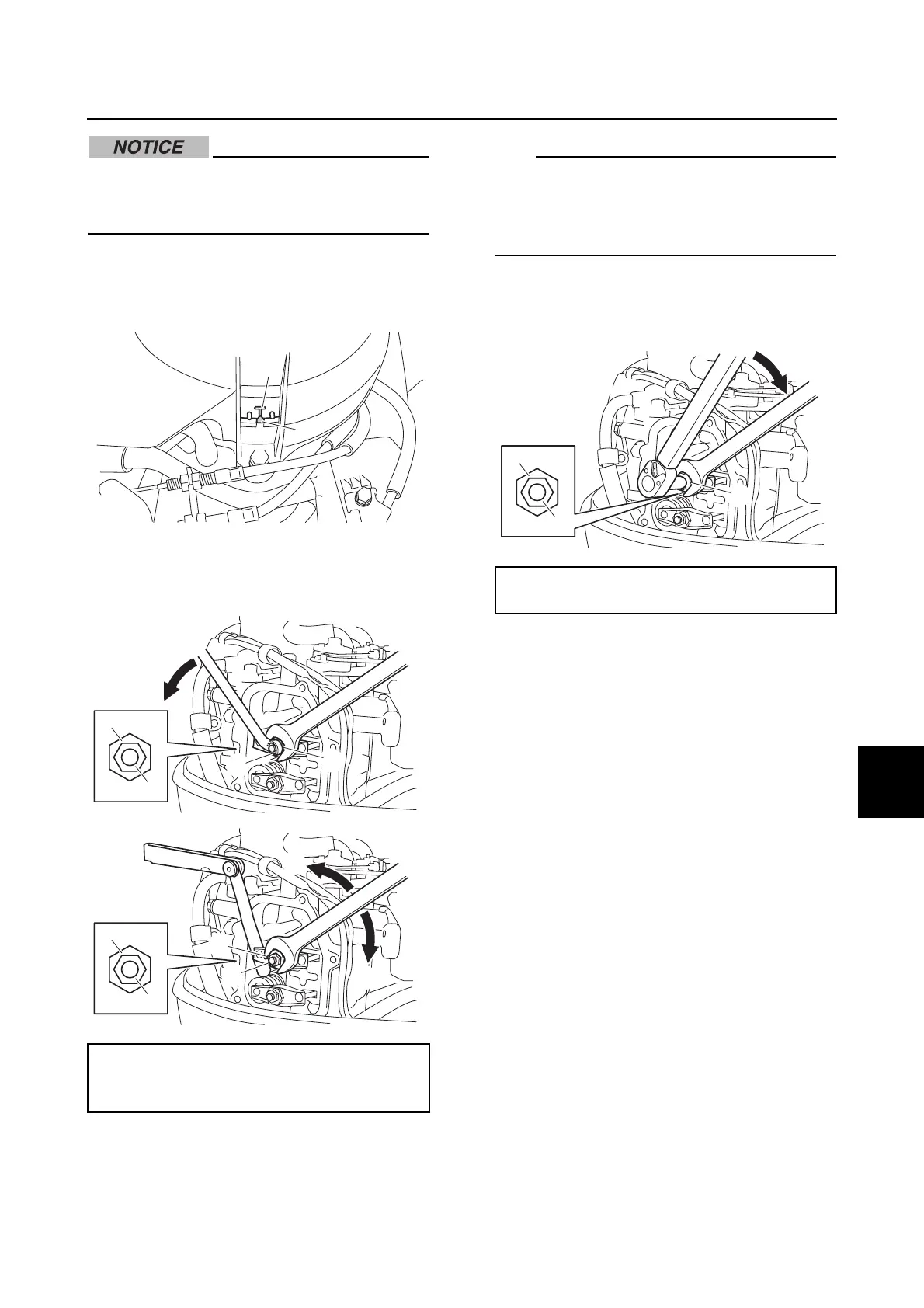

1. Align the TDC mark a on the flywheel
magnet and the pointer b of the manual
starter.
2. Loosen the valve adjusting locknut a,
and then turn the rocker arm pivot b until
the specified valve clearance is obtained.
TIP:
To decrease the valve clearance, turn the
rocker arm pivot in direction c.
To increase the valve clearance, turn the
rocker arm pivot in direction d.
3. Tighten the valve adjusting locknut a to
the specified torque, and then check the
valve clearances.
Valve clearance:
Intake and exhaust:
0.08–0.12 mm (0.003–0.005 in)
a
b
a
a
b
b
c
d
a
a
b
b
Valve adjusting locknut a:
10 N·m (1.0 kgf·m, 7.4 ft·lb)
a
b
b
