3-10
Outboard Rigging Guide - 2001 Switch Panels
Switch Panel
Mounting Instructions
Mounting
1. Select a mounting location so that the switch
panel assembly is in easy reach from the
helm.

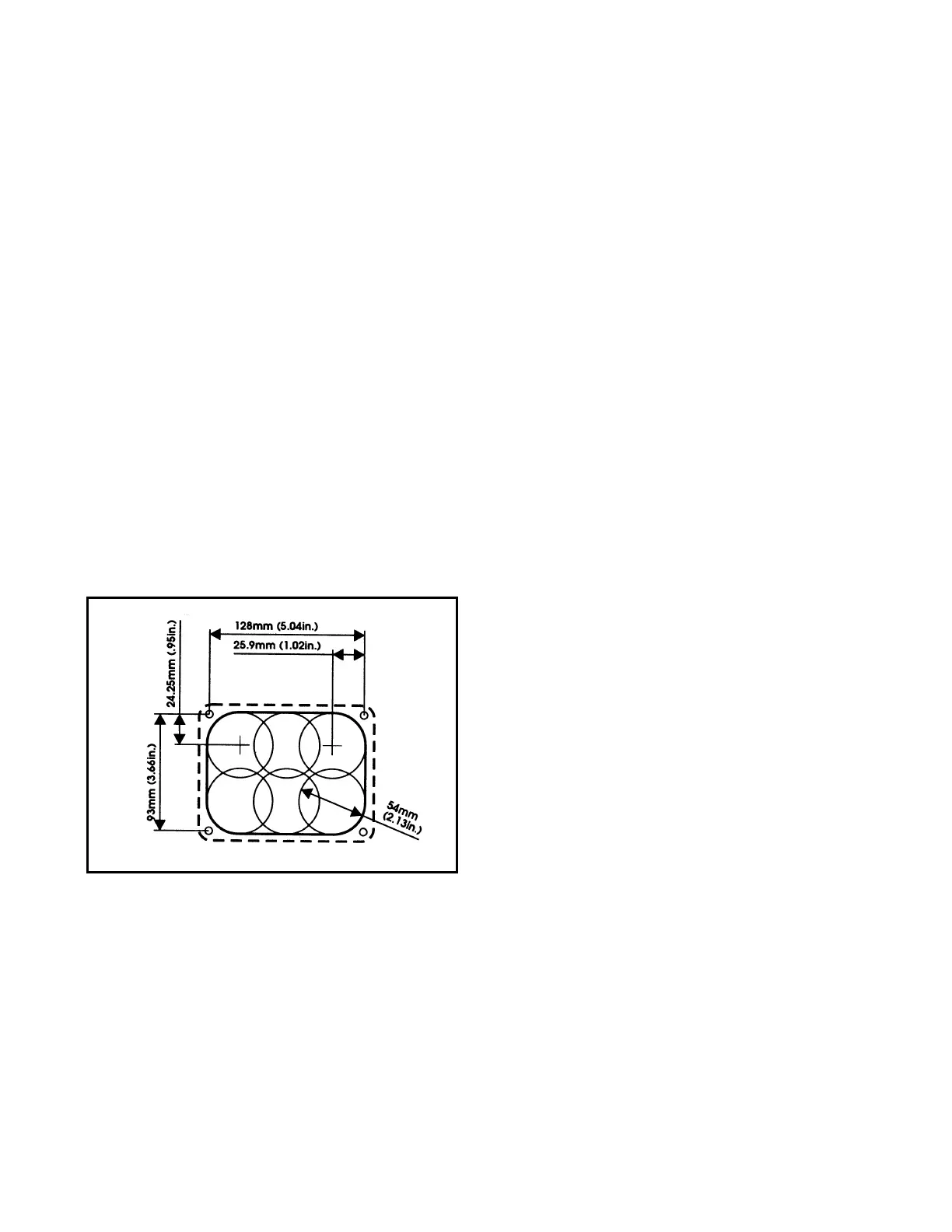

2. Cut a hole in the instrument panel as indicat-
ed in the mounting diagram. Using a 2-1/8
inch hole saw, where indicated.
3. Connect the wire harness to the switch panel
assembly as shown in the correct wiring dia-
gram in the Boat Wiring Diagrams Section of
this manual, and pass the harness back
through the hole.
4. Secure the switch panel assembly to the
instrument panel with screws, washers, and
nuts; or wood screws as required.
SAMPLE ONLY! Actual pattern may vary with
panel selected.
Wiring
For wiring information and diagrams, refer to the
Boat Wiring Diagrams section of the Electrical
Chapter elsewhere in this manual.
