Outboard Rigging Guide - 2001 Switch Panels

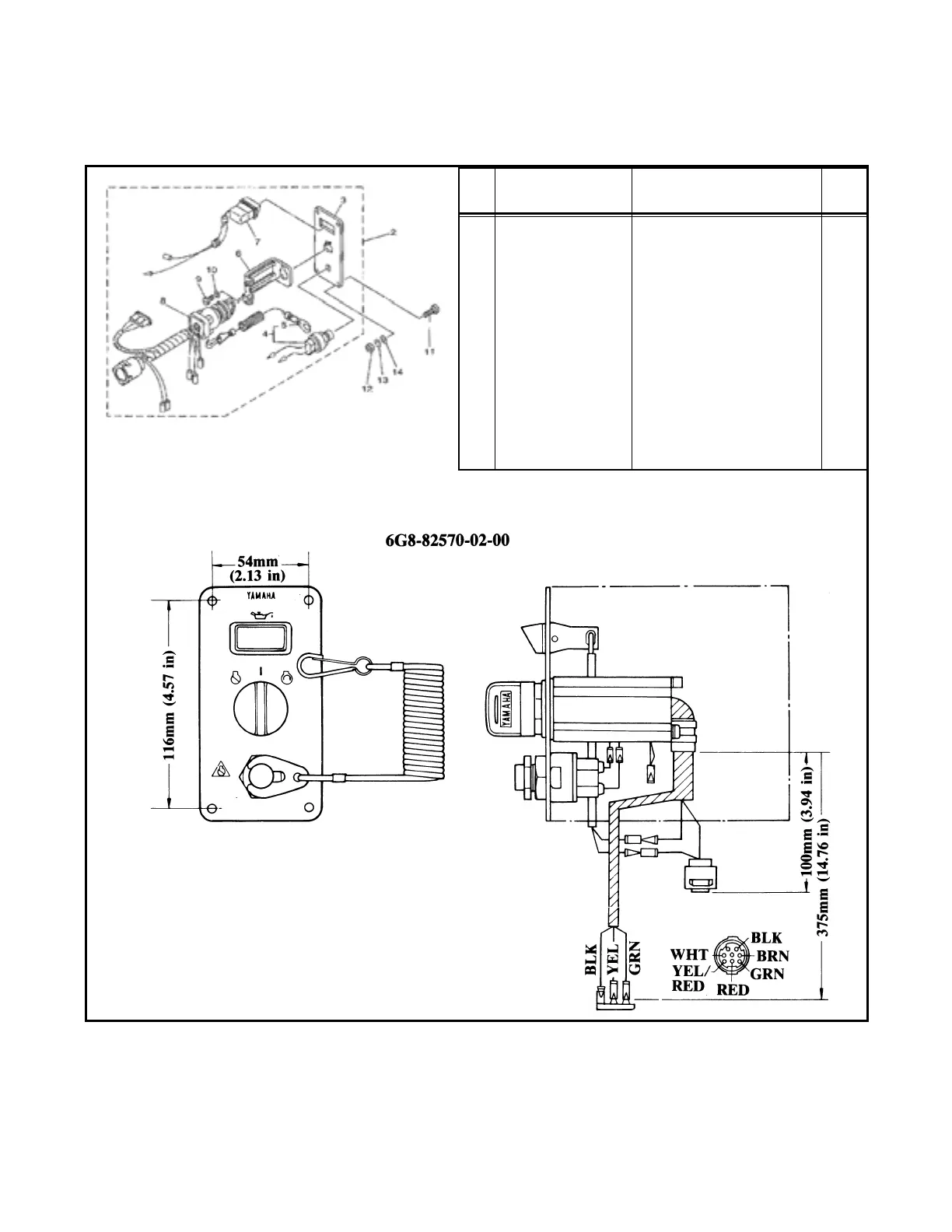

Switch Panel Assembly with Oil Light 6G8-82570-02-00 (T9.9)
NOTE: Use Drill Template on page 3-??????.
REF
NO PART NUMBER DESCRIPTION QTY.
2 6G8-82570-02-00 Panel Switch Ass’y1
3 6G8-82571-01-00 • Panel, Switch 1
4 68882-57501-00 • Engine Stop Switch Ass’y1
5 68282-55600-00 • • Stopper 1
6 66382-58101-00 • Stay, Cord Clamp 1
7 6G8-83582-01-00 • Pilot Light Ass’y1
8 6G8-82510-00-00 • Main Switch Ass’y1
9 98903-04008-00 • Screw, Bind 1
10 92903-04100-00 • Washer, Spring 1
11 90149-05M05-00 • Screw 4
12 95380-05600-00 Nut 4
13 92990-05100-00 Washer, Spring 4
14 92990-05600-00 Washer, Plate 4
