3-14
Outboard Rigging Guide - 2001 Switch Panels
93 mm (3.66 in)
128 mm (5.04 in)
27 mm
(1.06 in)
27 mm
(1.06 in)
27 mm
(1.06 in)
27 mm
(1.06 in)
40 mm
(1.46 in)
6x 54mm (2.12 in)

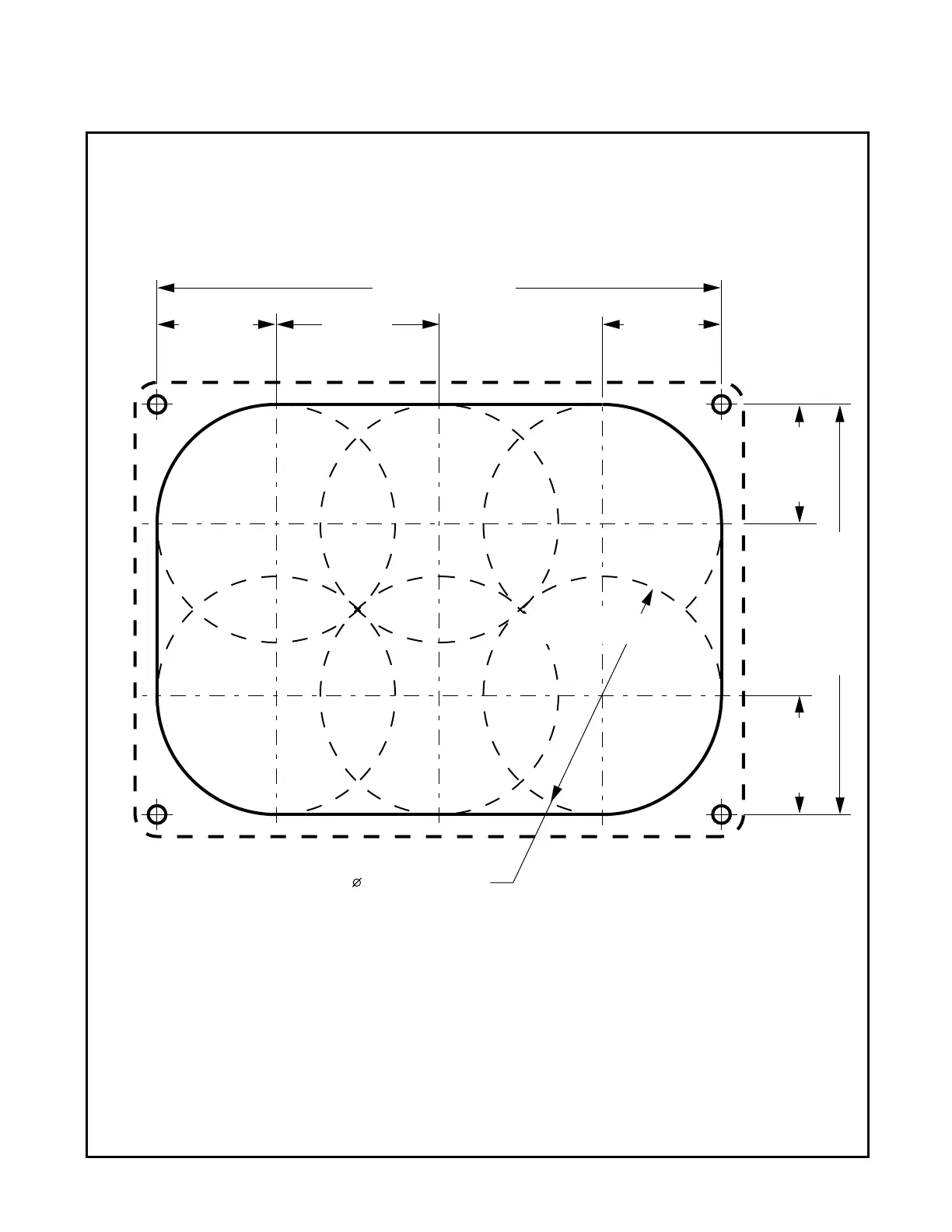

DRILL TEMPLATE
DUAL: SWITCH PANEL ASSEMBLY
DRILL TEMPLATE (Actual Size)
