Yamaha F80 - Page 124

3-13

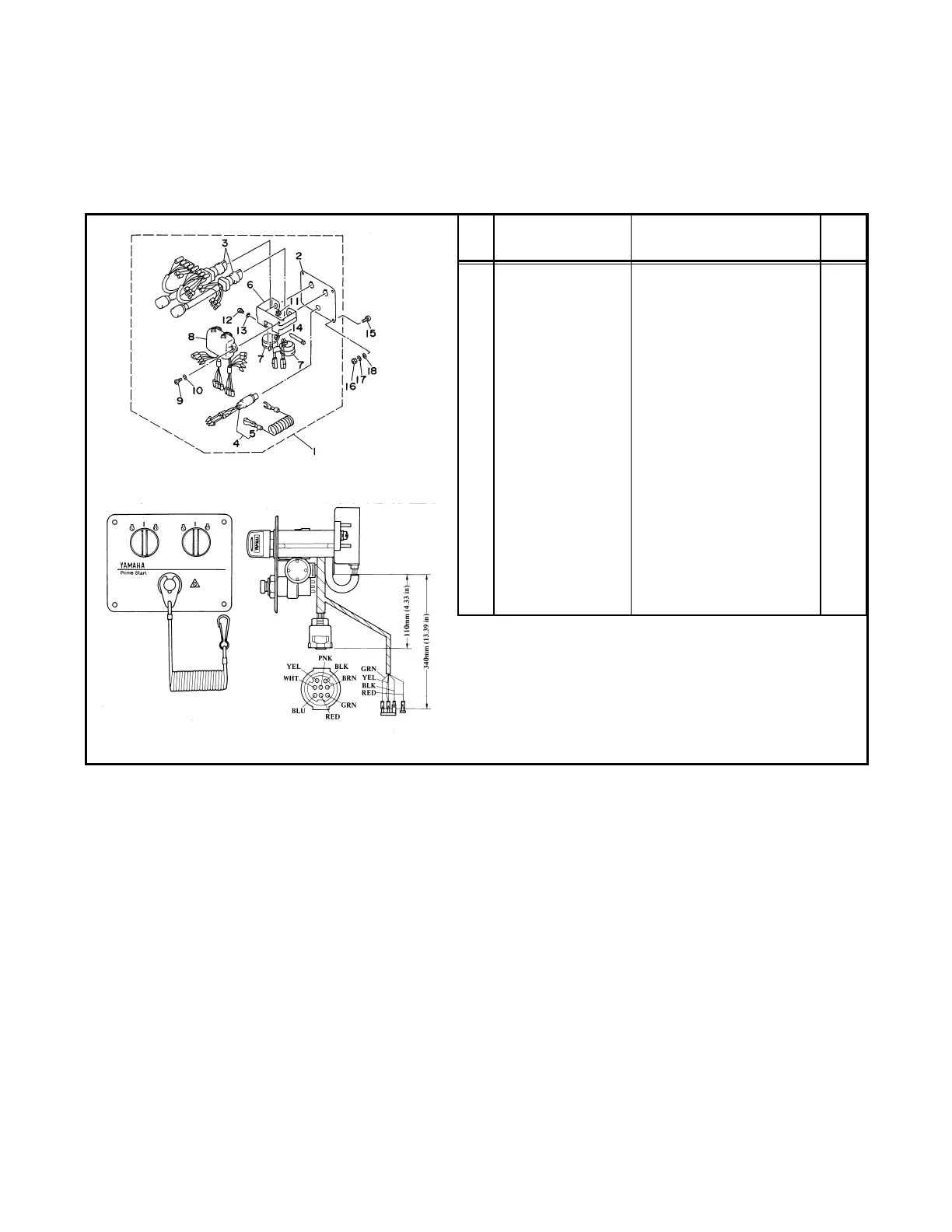

Outboard Rigging Guide - 2001 Switch Panels
6K1-82570-05-00 (1998~: L130)
Dual panel with push-to-choke ignition switches,
common lanyard, and warning horn.
REF
NO PART NUMBER DESCRIPTION QTY.
1 6K1-82570-05-00 Panel Switch Ass’y1
2 6K1-82571-01-00 • Panel, Switch 1
3 6K1-82510-04-00 • Main Switch Ass’y2
4 6K1-82575-00-00 • Engine Stop Switch Ass’y1
5 682-82556-00-00 • • Stopper 1
6 6K1-83614-01-00 • Stay 1
7 688-83383-11-00 • Buzzer 2
8 6K1-85830-01-00 • Control Unit Ass’y1
9 98580-06020-00 • Screw, Pan Head 2
10 92995-06100-00 • Washer, Spring 2
11 95380-06600-00 • Nut 2
12 98580-05010-00 • Screw, Pan Head 2
13 92990-05100-00 • Washer, Spring 2
14 95380-05600-00 • Nut 2
15 90149-05M05-00 Screw 4
16 95380-05600-00 Nut 4
17 92990-05100-00 Washer, Spring 4
18 92990-05600-00 Washer, Plate 4
