Outboard Rigging Guide - 2001 General Rigging Information
5. Run the fuel line to the engine via rigging
tube and grommet. Make sure throughout the
route the fuel line is not crushed or pinched,
which could cause engine failure.
Recommended fuel line is USCG approved
A-1.

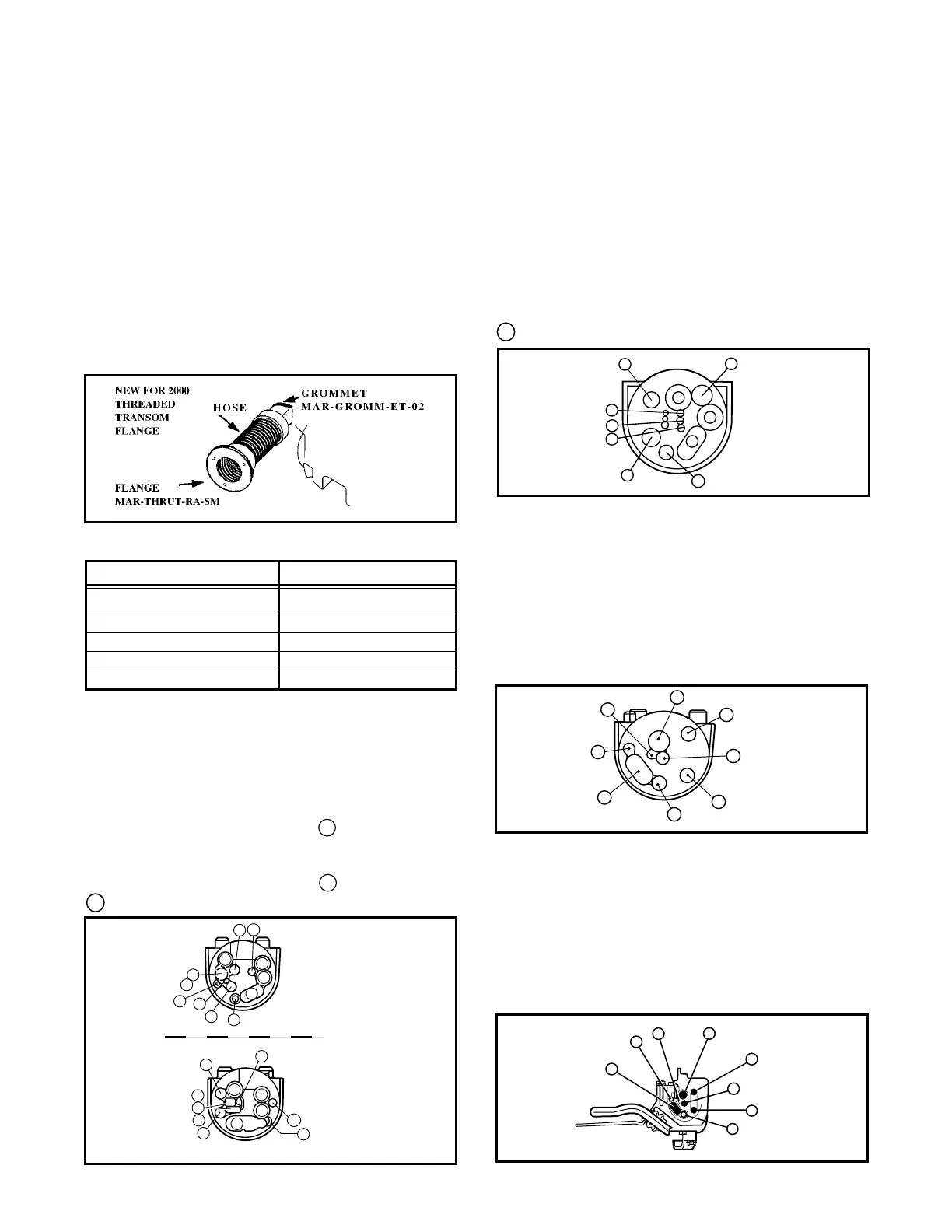

6. OPTIONAL: Rigging transom flange. For
V4 and V6 Rigging Transom Flange
(MAR-THRUT-RA-SM). Engine Grommet
(MAR-GROMM-ET-02).
Additional Rigging Tube Components
150~250, 2.6L, 3.1L, HPDI
Rigging Tube Grommet
1 Shift Cable
2 Throttle Cable
3 10 Pin Main Harness
4 & 5 Oil Warning and Trim Gauge Harness
6 Remote Oil Tank Lead Water Pressure,
7 Battery Cable Harness Temp. Gauge
8 Oil Hose
9 Fuel Hose Isolator
Speedometer Hose Harness
V4 Rigging Tube Grommet
1 Throttle Cable
2 Shift Cable
3 Main Harness
4 Oil Warning Lead
5 Remote Oil Tank Lead
6 Trim Gauge Lead
7 Battery Leads w/Isolator Lead
8 Oil Hose
9 Fuel Hose
Speedometer Hose
F80/F100 Tube Grommet
1 Throttle Cable
2 Shift Cable
3 Main Harness
4 Trim Gauge, Oil Warning Lead
5 Battery Leads
6 Fuel Hose
7 Speedometer Hose
8 Water Temperature & Water Pressure Sensor
F115 Tube Grommet
1 Throttle Cable
2 Shift Cable
3 Main Harness
4 Trim Gauge, Oil Warning Lead
5 Battery Leads
6 Fuel Hose
7 Speedometer Hose
8 Water Temperature & Water Pressure Sensor
Part Number Description
ABB-RIGHS-BK-25 Black Rig. Hose, 25’
ABB-RIGHS-GY-25 Gray Rig. Hose, 25’
ABB-RIGHS-BE-25 Blue Rig. Hose, 25’
ABB-RIGHS-BK-50 Black Hose 100’
ABB-RIGHS-GY-50 Gray Hose 100’
