6-44
Outboard Rigging Guide - 2001 60, C60/C70/70 Tiller Handle &
Steering Friction Kit

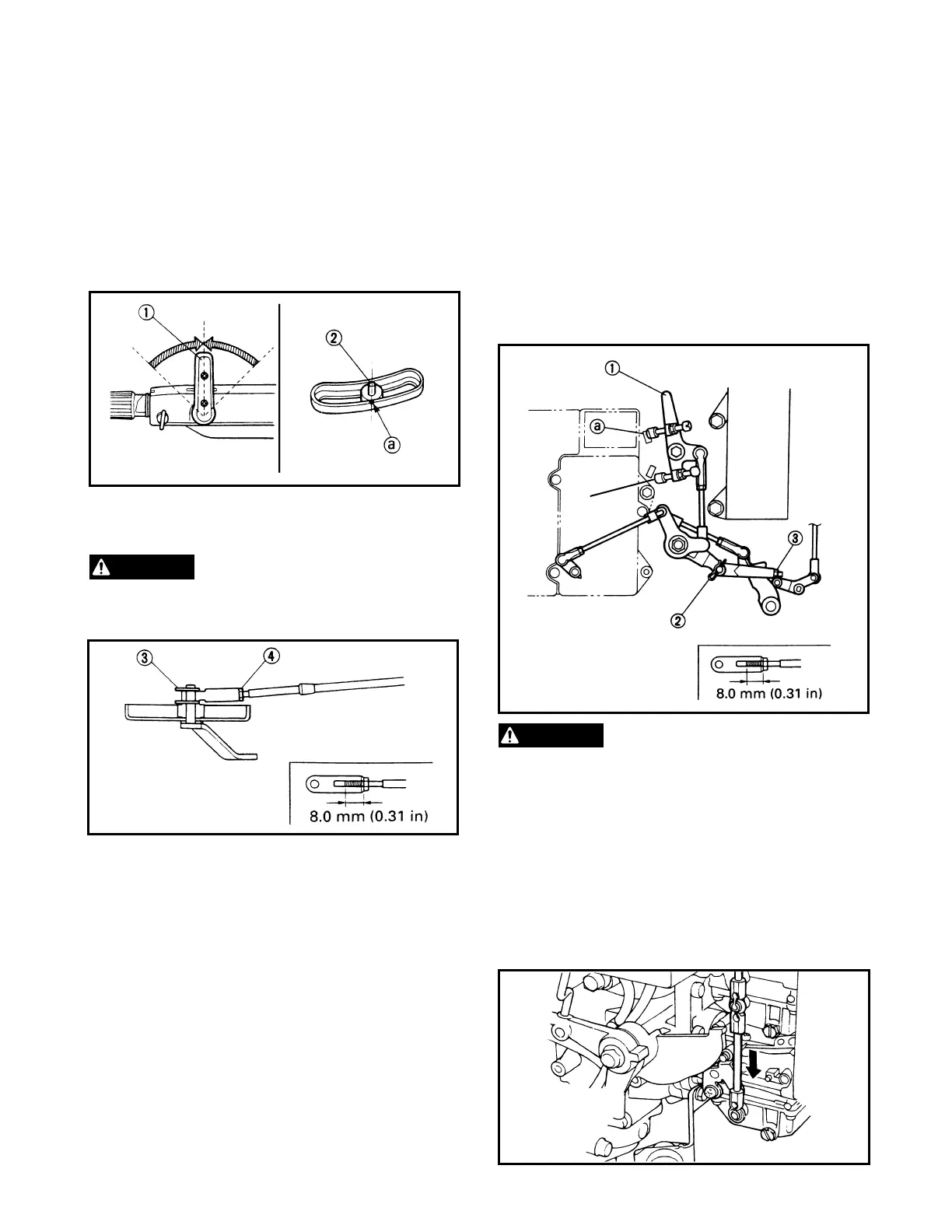

5. Adjust the shift cable joint position.
a. Turn the shift handle 1 in neutral posi-
tion.
b. Align the center of the set pin 2 with the
mark
a on the bracket.
c. Adjust the position of the cable joint until
its hole aligns with the set pin.
d. Install the clip 3 and tighten the lock nut
4.
T he cable joint should be screwed in more than
8mm ( 0.31 in) .
6. Check shifting for smooth operation.
7. Adjust the throttle cable joint position.
a. Turn the throttle grip fully close.
b. Turn the magneto control lever 1 so
its adjusting screw contacts the fully
retarding stopper
a.
c. Adjust the position of the cable joint until
its hole aligns with the set pin.
d. Install the clip 2 and tighten the lock nut
3.
T he cable joint should be screwed in more than
8mm ( 0.31in) .
8. Check the throttle for fully-open position
( I llus. B )
a. Turn the shift handle in gear position.
b. Turn the throttle grip fully open.
c. Check the throttle valve lever so it
contacts the fully opening stopper 4
( I llus. A ).
WARNING
WARNING
ILLUS. A
ILLUS.
B
