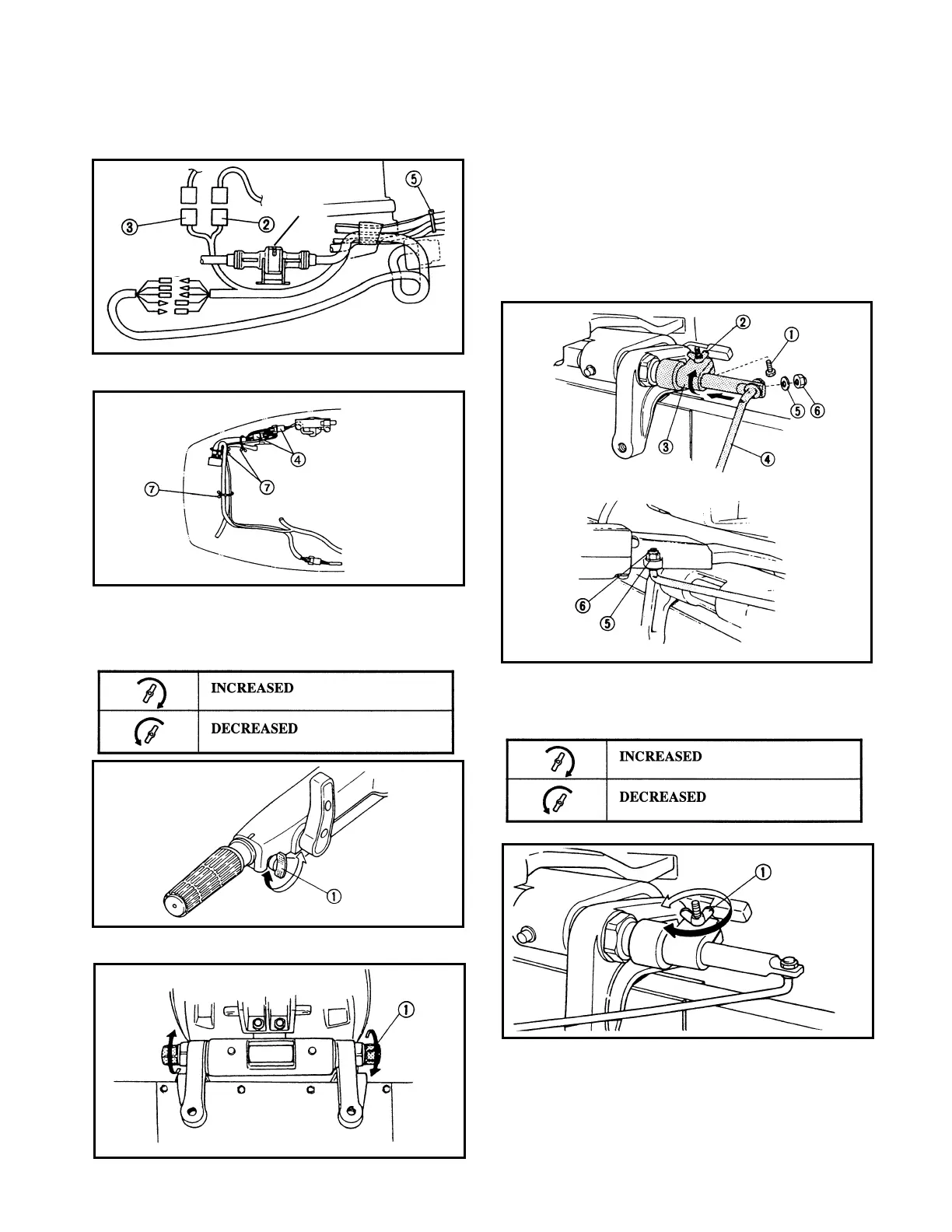

Outboard Rigging Guide - 2001 C90/90 Tiller Handle &
Steering Friction Kit
11. Tie down with a zip tie 5.
12. Close the clamp 7.
Throttle Friction
1. Adjust the friction control nut 1 according to
the following diagram:
Steering Friction
1. Remove the end cap 1.
2. Install the bolt 1 and wing nut 3.
3. Install the friction controller 3, link rod 4,
washer 5, and nylon nut 6.
NOTE:The steering friction can be installed on
port side or starboard side.
4. Adjust the steering friction control nut 1
according to the following diagram.
1
4
