6A-6
Outboard Rigging Guide - 2001

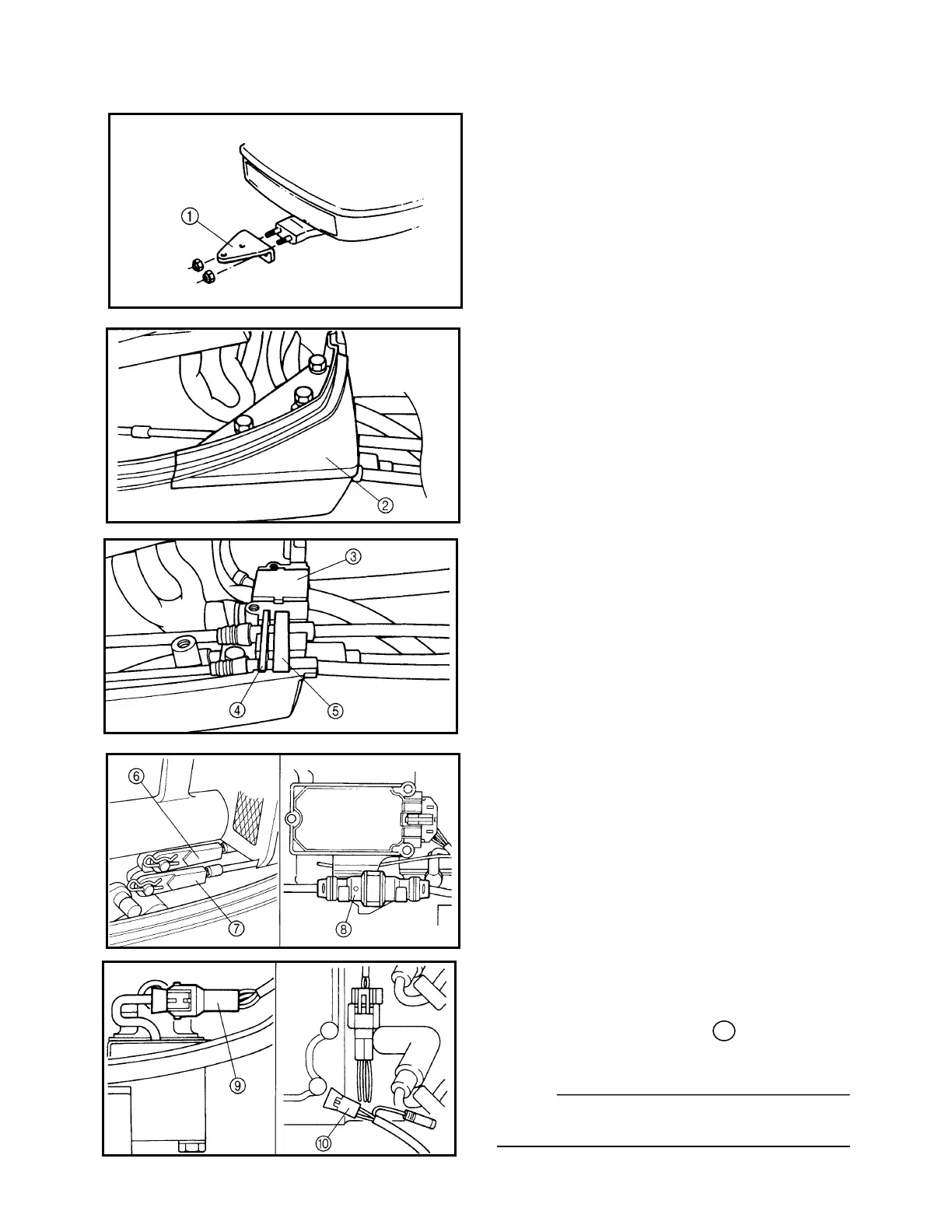

PREPARATION
1. Remove:
• Steering hook 1
2. Remove:
• Fitting plate 2
3. Remove:
• Grommet 3
• Cable stopper 4
• Rubber seal 5
4. Remove:
• Shift cable joint 6
• Throttle cable joint 7
5. Disconnect:
• Wire harness coupler 8
6. Disconnect:
• Overheat and oil warning lamp
coupler 9
• Trim sensor coupler
10
(for PTT model)
NOTE:
The bottom cowling overhet and oil warn-
ing lights will not be able to be operated.
