Yamaha F80 - Page 354

6B-8
Outboard Rigging Guide - 2001
10. Check:
• Fully closed position
Incorrect → Adjust.

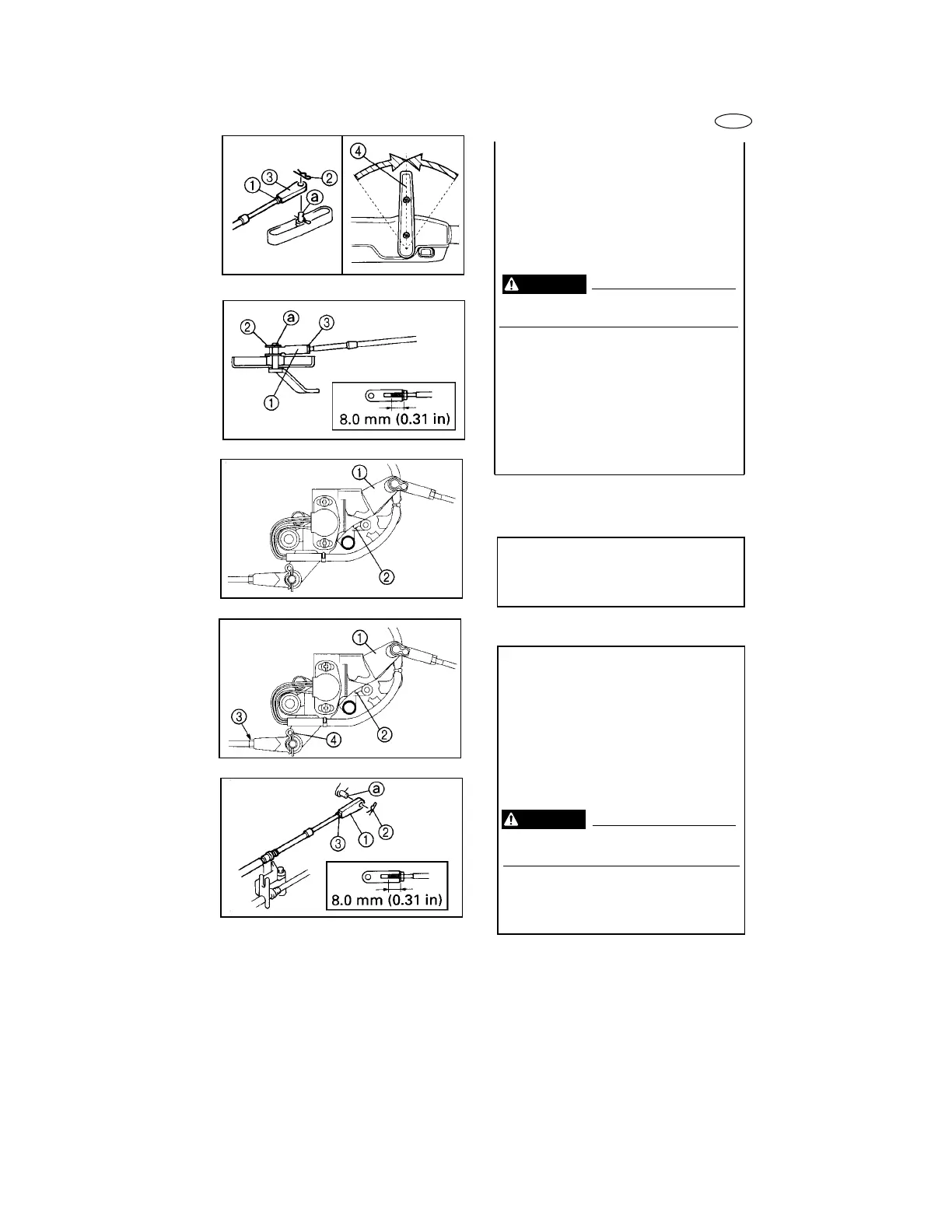

11. Adjust:
• Throttle cable joint position
• Loosen the locknut 1 and remove the
clip 2.
• Remove shift cable joint 3 from the set
pin a.
• Position the shift lever 4 in the neutral
position.
• Adjust the position of the shift cable
joint until it aligns with the set pin.
The shift cable joint must be screwed in
at least 8mm (0.31 in).
• Install the shift cable joint 1 onto the
set pin a.
• Install the clip 2 and tighten the locknut
3.
• Move the shift lever to the forward,
neutral and reverse positions and make
sure it shifts smoothly and correctly.
If the shifting operation is unsmooth or
incorrect, repeat the above procedure.
WARNING
Checking steps:
• Fully close the throttle.
• Check that the throttle control lever 1
touches the fully-closed stopper 2.
Adjustment steps:
• Contact the throttle control lever 1 with
the fully-closed stopper 2.
• Loosen the locknut 3 and remove the
clip 4.
• Remove throttle cable joint 5 from the
set pin a.
• Turn the throttle grip fully-closed position.
• Adjust the position of the throttle cable
joint until it aligns with the set pin.
The throttle cable joint must be screwed
in at least 8mm (0.31 in).
• Install the throttle cable joint 1 onto the
set pin a.
• Install the clip 2 and tighten the locknut
3.
WARNING
E
