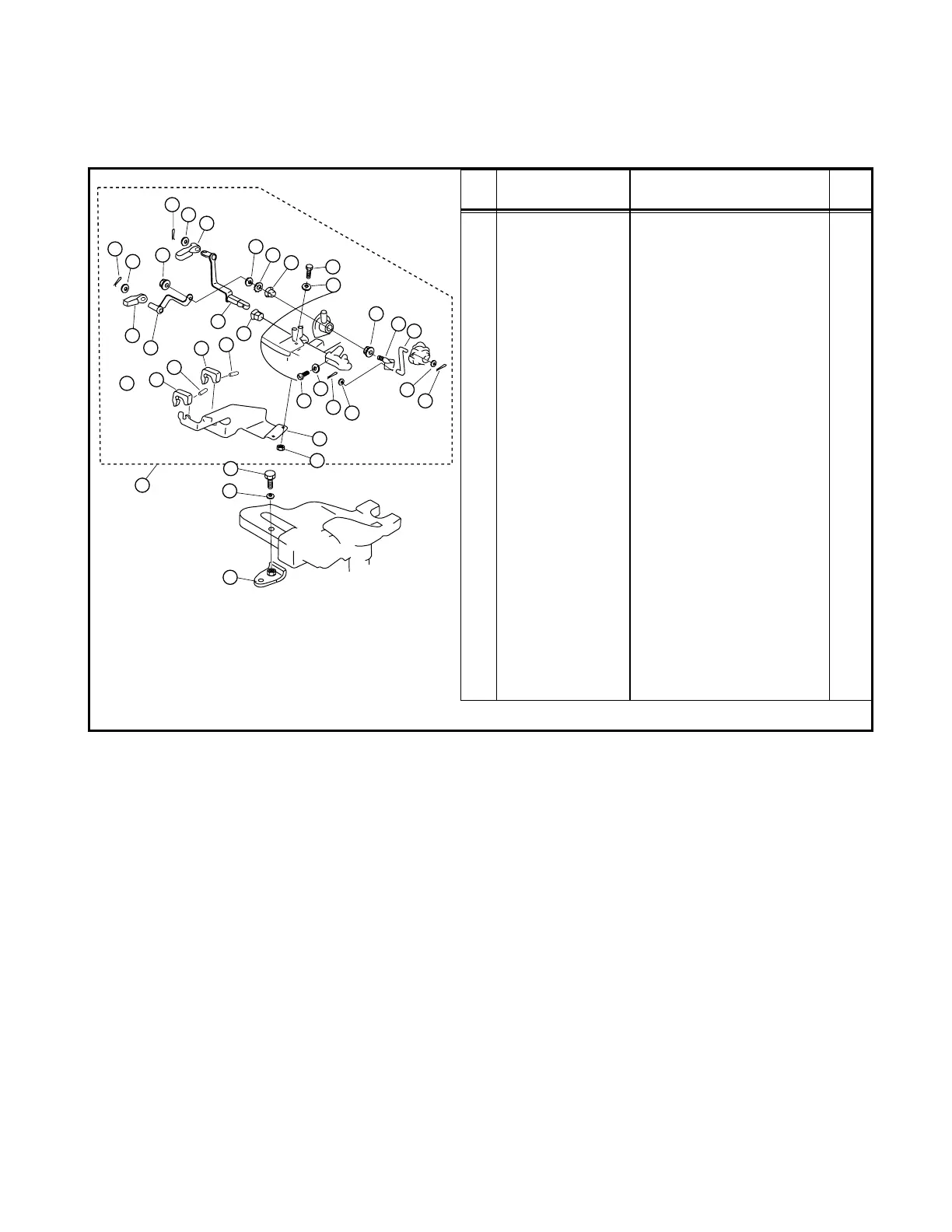

9.9/15 (2-STROKE) REMOTE CONTROL ATTACHMENT KIT (63V-48501-00-00)
5
19
18
6
6
14
13
12
15
19
20
23
26
25
24
15
11
11
12
13
16
17
18
19
5
8
9
4
1
7
5
7
3
22
20
21
2
10
REF
NO PART NUMBER DESCRIPTION QTY.
1 63V-48511-00 Hook, Steering 1
2 97395-08020-00 Bolt 1
3 92995-08600-00 Washer 1
4 63V-48501-00-00 Remote Control Attach. Ass’y1
5 63V-48531-00-00 • Bracket, Remote Control 1 1
6 682-48538-50-00 • Clamp, Cable 1 2
7 91590-30012-00 • Pin, Spring 2
8 97095-06016-00 • Bolt 2
9 92990-06600-00 • Washer, Plate 2
10 95380-06600-00 • Nut 2
11 663-48344-00 • Cable End, Remote Control 2
12 90468-18008-00 • Clip 2
13 90201-08M12-00 • Washer, Plate 2
14 63V-42154-00 • Lever, Throttle Control 1
15 90386-10025-00 • Bush 2
16 90206-10M04-00 • Washer, Wave 1
17 90201-10M02-00 • Washer, Plate 1
18 63V-42192-00 • Rod 2 1
19 90201-04M06-00 • Washer, Plate 2
20 91490-20010-00 • Pin, Cotter 2
21 63V-48534-00-00 • Throttle Lecer, Control 1
22 95780-08300-00 • Nut, Flange 1
23 63V-48544-00 • Lever, Shift Control 1
24 97885-05012-00 • Screw, Pan Head 1
25 92990-05600-00 • Washer, Plate 1
26 90386-10009-00 • Bush 1
• Component parts
