7-5

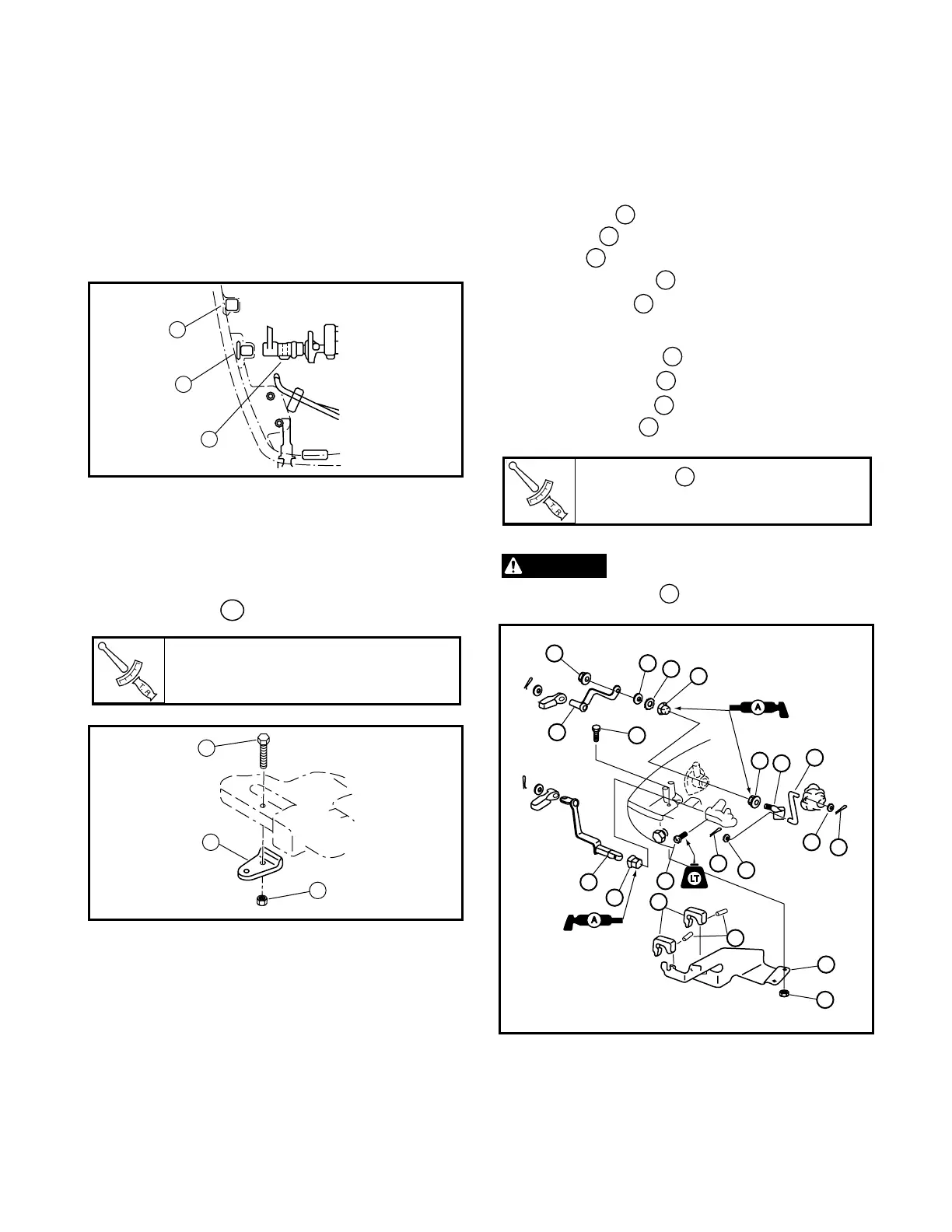

Outboard Rigging Guide - 2001 9.9/15 (2-Stroke) Remote Control Attach. Kit
Preparation
1. Remove:
• Grommet a
• Grommet b
• Screw c
Steering Hook
1. Install:
• Steering Hook 1
• Bolt 2
• Nylon Nut
Remote Control Attachment Assembly
1. Install:
• Bushing
• Lever
• Rod
• Plane Washer
• Cotter Pin
2. Install:
• Throttle Lever
• Plane Washer
• Wave Washer
• Flange Nut
B end the cotter pin ends securely.
a
b
c
33
2
1
33
12
11
15
16
17
18
14
13
19
17
WARNING
Bolt:
22
Tightening Torque:
18 Nm (1.8 m•kg)
Flange Nut Tightening Torque:
8 Nm (0.8 m•kg)
19
15
11
12
16
17
16
17
21
4
22
20
5
3
7
18
6
14
13
12
19
