Yamaha F80 - Page 381

7-20
Outboard Rigging Guide - 2001

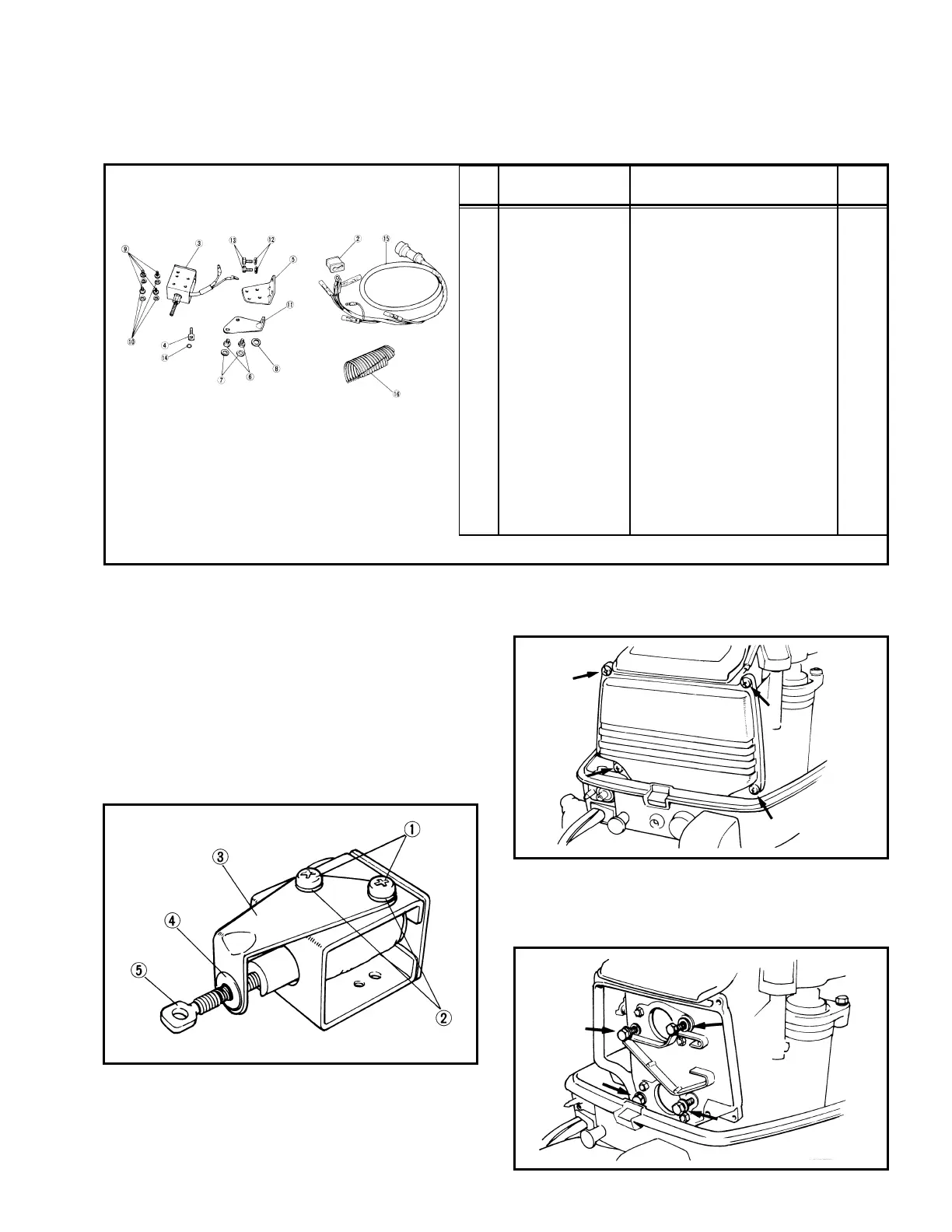

25E REMOTE CONTROL CONVERSION KIT - 2-Cylinder
REF
NO PART NUMBER DESCRIPTION QTY.
2 6L2-42725-50 Grommet 1
3 6L2-86111-00 Coil, Solenoid 1
4 682-86117-00 Hook, Wire Pull 1
5 6L2-86115-00 Holder, Solenoid 1
6 98580-05008 Screw, Pan Head (7G3A) 2
7 92990-05600 Washer, Plain (646) 2
8 90480-10155 Grommet (664) 1
9 98580-04008 Screw, Pan Head (713) 4
10 92990-04200 YBS66-4 Washer, Pplain 4
11 6L2-86112-00 Stay, Solenoid 1
12 97013-06012 Bolt (661) 2
13 92990-06100 YBS67-6 Washer, Spring 2
14 93210-03261 O-ring (663) 1
15 97013-06012 Bolt 9661) 1
16 92990-06100 YBS67-6 Washer, Spring 1
17 6L2-82590-00 Wire Harness Assy 1
18 6K3-83557-00 Tube 1
• Component parts
Installation
1. Install the following parts on the choke sole-
noid assembly.
1 Screw
2 Plain Washer
3 Bracket
4 Grommet
5 Extension Bolt
2. Loosen the four screws and remove the
silencer cover.
3. Loosen the four bolts securing the carburetor.
NOTE:For easy installation of the choke sole-
noid, it is unnecessary to remove the carburetor.
