7-23
Outboard Rigging Guide - 2001
Installation

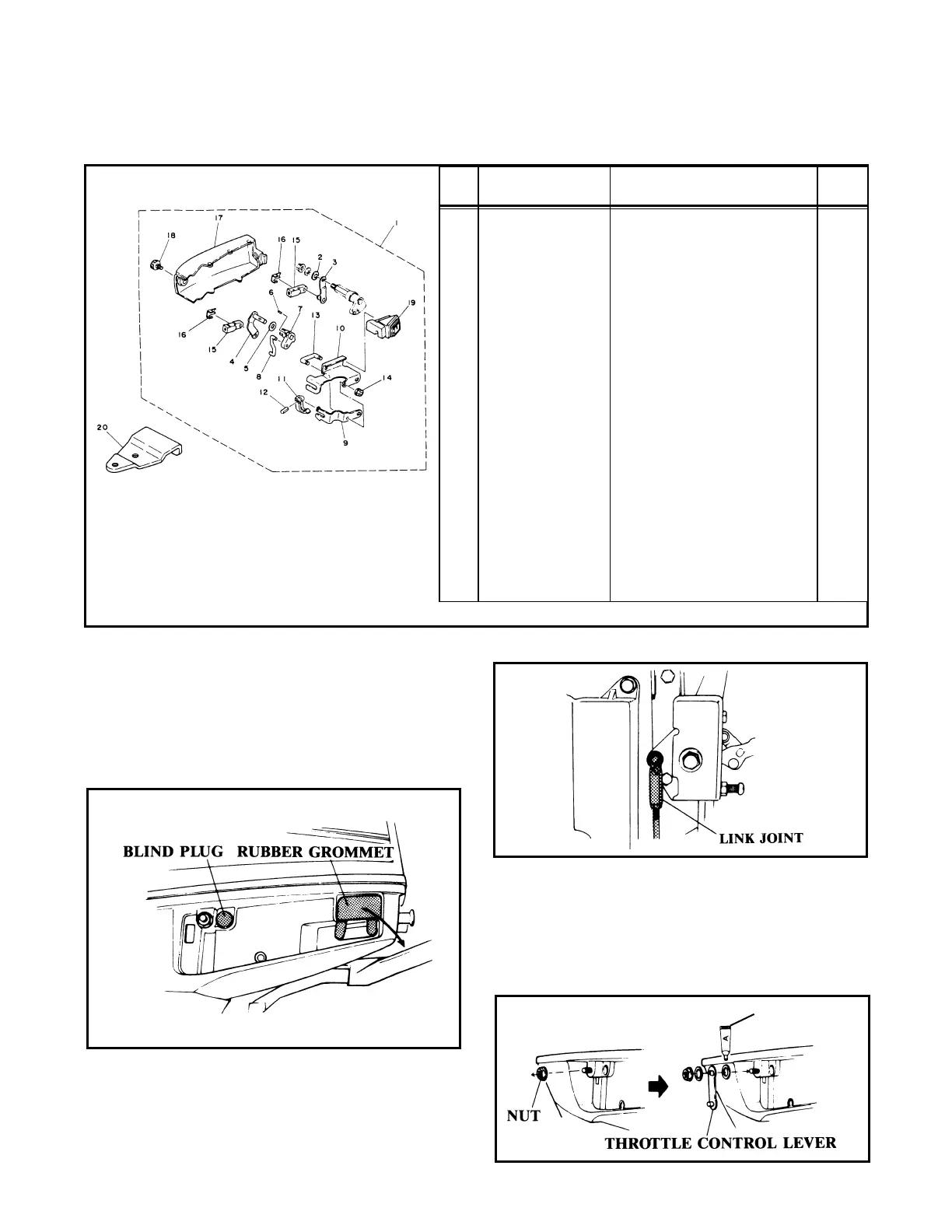

1. Remove the cover from the bottom cowling
and extract a rubber grommet and a plastic
blind plug as shown in the illustration below.
NOTE:Above parts are no longer used.
2. Disconnect the link joint first.
3. Remove the nut from the throttle control
lever shaft and re-install parts with the throt-
tle control lever as shown in the illus. below.
NOTE:Apply Yamaha Marine Grease with re-
installation.
25/30HP 3-Cylinder Remote Control Attachment Kit (6J8-48501-03-4D)
REF
NO PART NUMBER DESCRIPTION QTY.
1 Remote Control Attach. Ass’y1
2 92990-08100-00 Washer, Spring 1
3 6J8-48534-00-00 Control Throttle Lever 1
4 6J8-48544-01-00 Shift Control Lever 1
5 6J8-44177-00-00 Washer 1
6 91690-30016-00 Spring Pin 1
7 6J8-44173-02-00 Shift Control Lever 1
8 6J8-48531-00-00 Joint 1
9 6J8-48531-00-00 Remote Control Bracket 1 1
10 6J8-48532-00-00 Remote Control Bracket 2 1
11 682-48538-50-00 Cable Clamp 1 1
12 91690-30012-00 Spring Pin 1
13 90109-06M29-00 Bolt 2
14 90179-06M12-00 Nut 2
15 6G8-26363-00-00 Cable End 2
16 6G8-26364-00-00 Cable End 2 1
17 6J8-42723-50-00 Bottom Cover 1
18 6J8-42846-00-00 Screw 1
19 6J8-42724-10-00 Grommet 1
20 6J8-48511-50-EK Steering Hook 1
• Component parts
YAM AHA M ARINE GREASE
