7-22
Outboard Rigging Guide - 2001 25HP Remote Control Attach. Kit

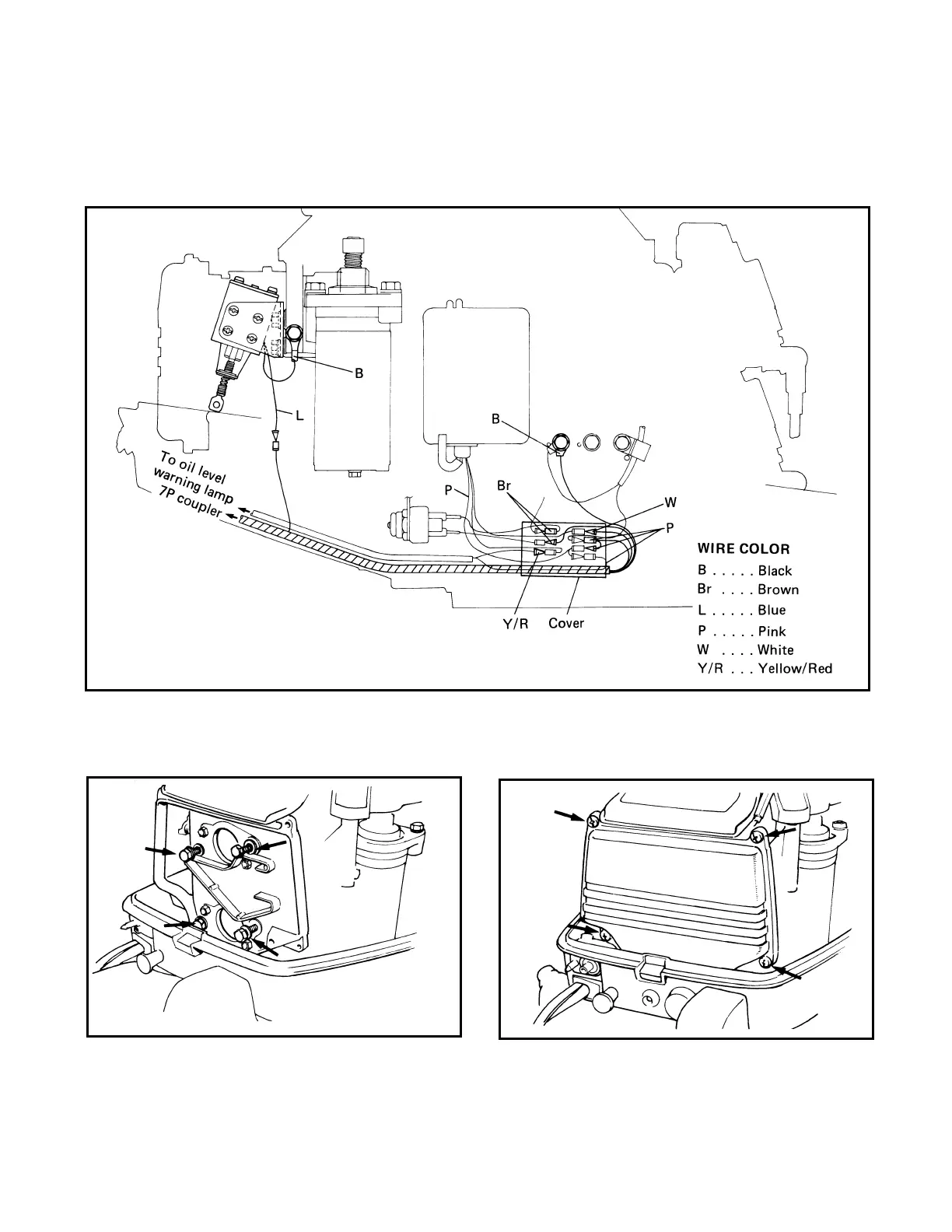

7. According to the wiring diagram, connect the
wires correctly. Next, place the cover over the
clamp.
8. Retighten the four bolts (which were loos-
ened in #4 on the previous page) securing the
carburetor.
9. Reinstall the silencer cover (which was
removed in #2 on the previous page), and
retighten the four screws.
To Next Page
