Input & Output Patching 121
01V96 Version 2—Owner’s Manual
Input & Output Patching
10
10 Input & Output Patching
This chapter describes how to patch (assign) signal paths within the 01V96 to its inputs,
outputs, and slot channels
Input Patching
Signals input at INPUT connectors 1–16, ADAT IN connector, 2TR IN DIGITAL connec-
tors, and Slot I/O card are patched to Input Channels for use.

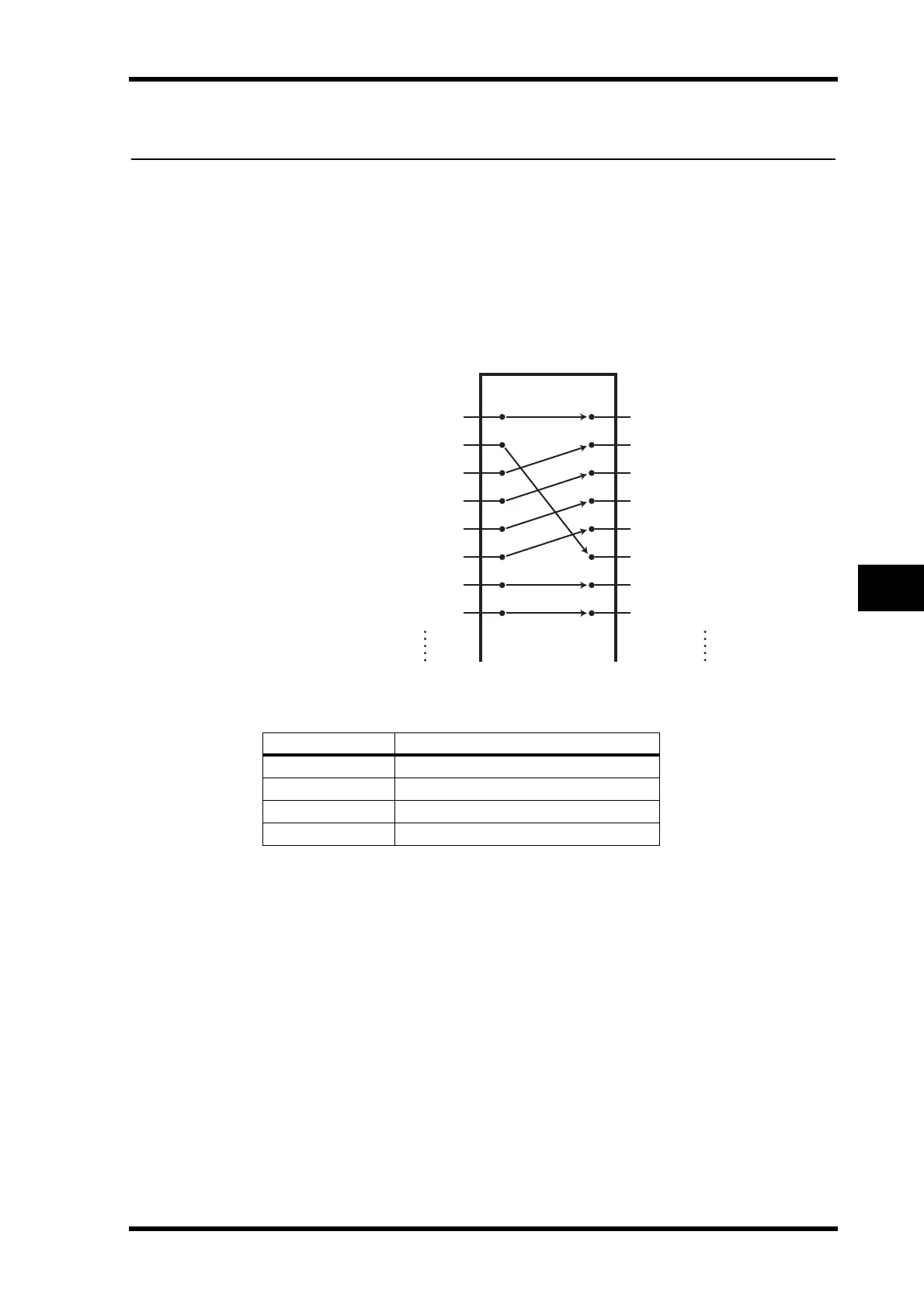

Patch example:
By default, the Input Channels are patched as follows:
You can change these patches, if you desire.
Input Channels Input connectors and Slot channels
1–16
INPUT connectors 1–16
17–24
ADAT IN Input Channels 1–8
25–32
Slot Channels 1–8
ST IN Channels 1–4
Internal Effects Processor 1–4 Outputs 1–2
Input Patching
INPUT connector 1
INPUT connector 2
INPUT connector 3
INPUT connector 4
INPUT connector 5
INPUT connector 6
INPUT connector 7
INPUT connector 8
Input Channel 1
Input Channel 2
Input Channel 3
Input Channel 4
Input Channel 5
Input Channel 6
Input Channel 7
Input Channel 8
