Setting the Input Channels from the Display 87
01V96 Version 2—Owner’s Manual
Input Channels
7
C S
When this button is turned on, the currently-selected Input Channel is routed to the
Stereo Bus.
D D
When this button is turned on, the currently-selected Input Channel is routed to its
Direct Out. See page 125 for more information on the Direct Out.
E ALL STEREO
This button turns on the S button for all channels on the page.
F ALL BUS
This button turns on the Bus buttons 1–8 for all channels on the page.
G ALL CLEAR
This button clears all routing assignments on the page.
H SURROUND MODE
This field displays the current Surround mode.
Viewing Input Channel Settings
You can view and adjust parameter settings for the currently-selected Input Channel on the
View | Parameter or Fader pages.

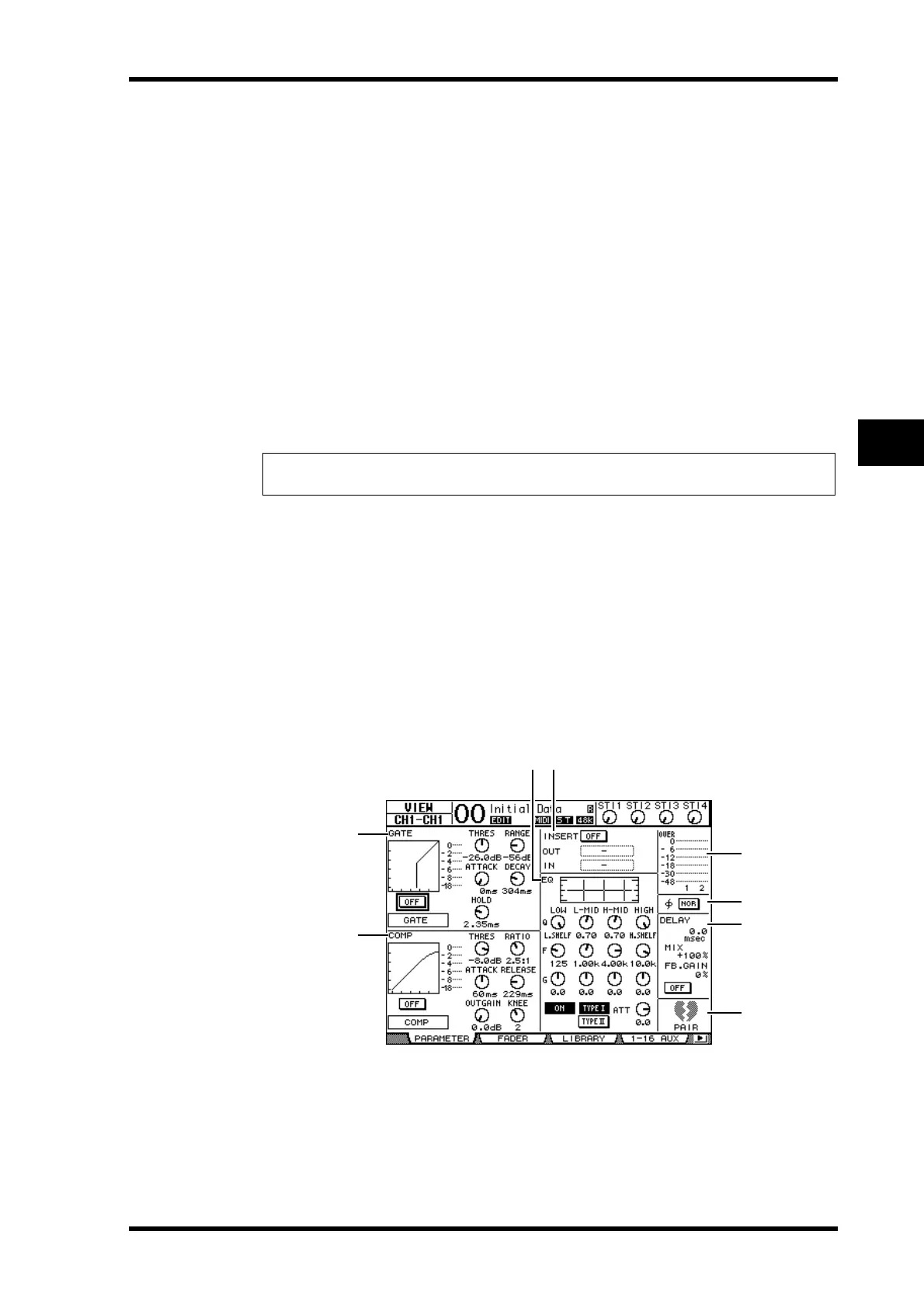

■ Viewing the Gate, Compressor, and EQ Settings
To display the View | Parameter page for a specific Input Channel, use the corresponding
[SEL] button to select the desired channel, then press the DISPLAY ACCESS [VIEW] but-
ton repeatedly.
Move the cursor to a parameter you wish to change, then rotate the Parameter wheel or
press the [INC]/[DEC] buttons or [ENTER] button to modify the setting.
The following parameters are available (sections marked with an asterisk (*) are unavailable
for the ST IN Channels).
A GATE section (*)
This section enables you to turn the gate-type dynamics processor on or off and set the
parameters. (See page 81 for more information.)
Tip: The routings of the ST IN Channels L & R are linked. The D button is unavailable for
the ST IN Channels.
5
8
7
6
1
2
34
