158 Chapter 14—Internal Effects
01V96 Version 2—Owner’s Manual
Using Effects Processors via Aux Sends
You can use effects processors via Aux Sends by patching effects processor inputs to Aux
Outs, and effects processor outputs to ST IN Channels.
1 Recall an effect program you wish to use.
Refer to page 179 for more information on recalling effect programs.
2 Press the DISPLAY ACCESS [PATCH] button repeatedly until the Patch | Effect
page appears.

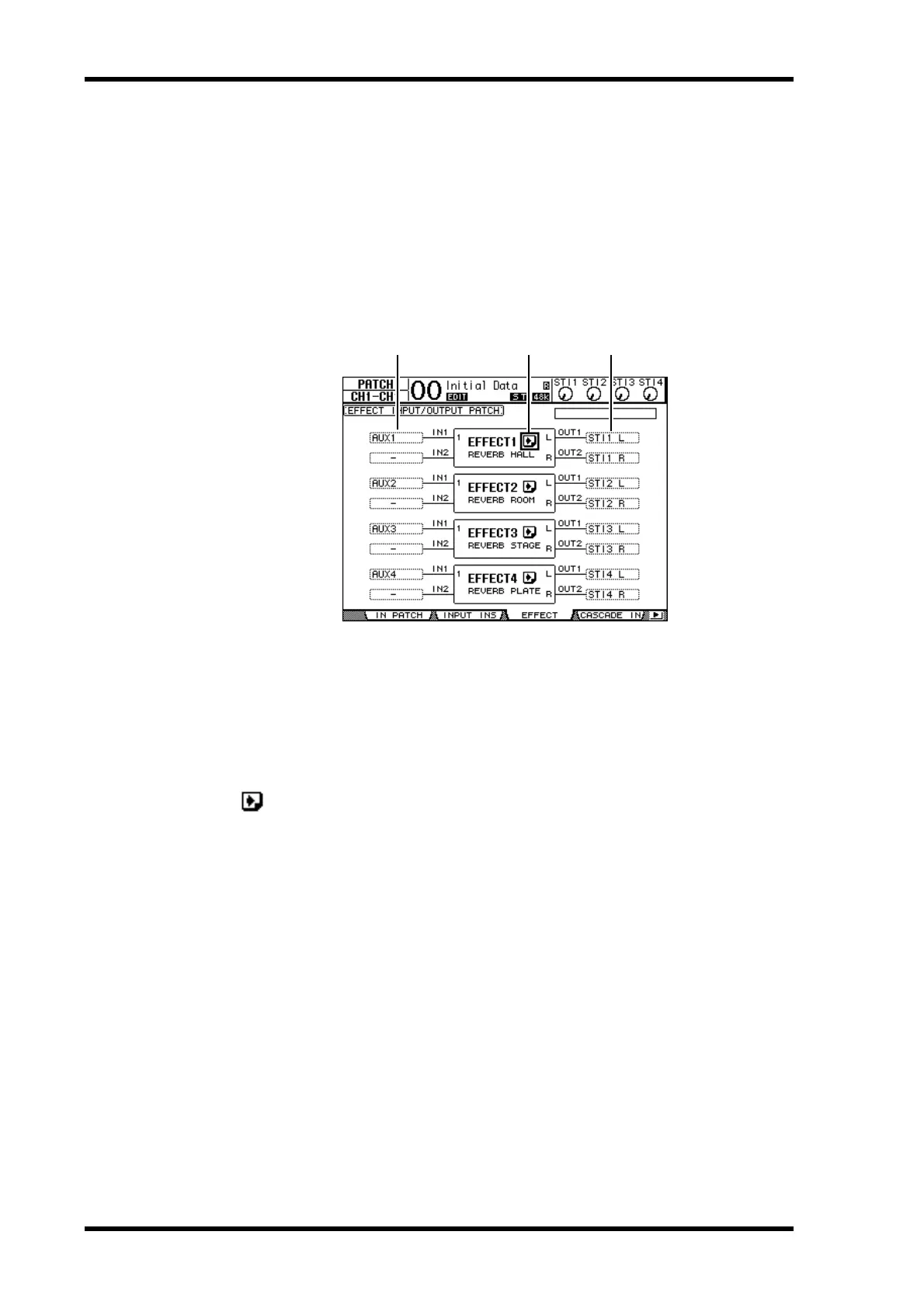

This page enables you to patch all inputs and outputs of Effects processors 1–4.
This page contains the following parameters:
A IN
These parameter boxes select the signals to be fed to the effects processors.
B OUT
These parameter boxes select the destination of the signals output from the effects pro-
cessors.
C button
This button recalls the FX1 Edit–FX4 Edit pages, which enable you to adjust the effect
parameters.
3To select a signal to be input to the effects processor, move the cursor to
the desired In parameter box, select a signal from the following options,
then press [ENTER].
• – .....................................No assignment
• AUX1–8......................... Aux Sends 1–8
• INS CH1–32 ................. Input Channel 1–32 Insert Out
• INS BUS1–8..................Bus 1–8 Insert Out
• INS AUX1–8 ................. Aux Send 1–8 Insert Out
• INS ST-L/R.................... Stereo Out Insert Out
To use the internal effects processors via Aux Sends, select Aux 1–8 (in most cases).
You can patch a different signal to the other input of 2-in/2-out effect programs.
1 3 2
