88 Chapter 7—Input Channels

01V96 Version 2—Owner’s Manual

B COMP section (*)

This section enables you to turn the compressor-type dynamics processor on or off and

set the parameters. (See page 82 for more information.)

C INSERT section (*)

This section enables you to turn the Insert on or off and patch the Insert In and Out.

(See page 127 for more information.)

D EQ section

This section enables you to set various EQ parameters. (See page 84 for more informa-

tion.)

E Meters

These meters indicate the signal levels of the currently-selected Input Channel and its

available pair partner.

F (Phase) section

You can reverse the signal phase of the currently-selected Input Channel. (See page 79

for more information.)

G DELAY section (*)

This section enables you to set the currently-selected channel’s Delay function. (See

page 80 for more information.)

H PAIR section (*)

This section indicates whether or not channels are paired. The heart icon ( ) is in one

piece when channels are paired. The heart icon is broken ( ) when channels are not

paired. (See page 92 for more information.)

■ Viewing the Pan, Fader, and Aux Send Level Settings

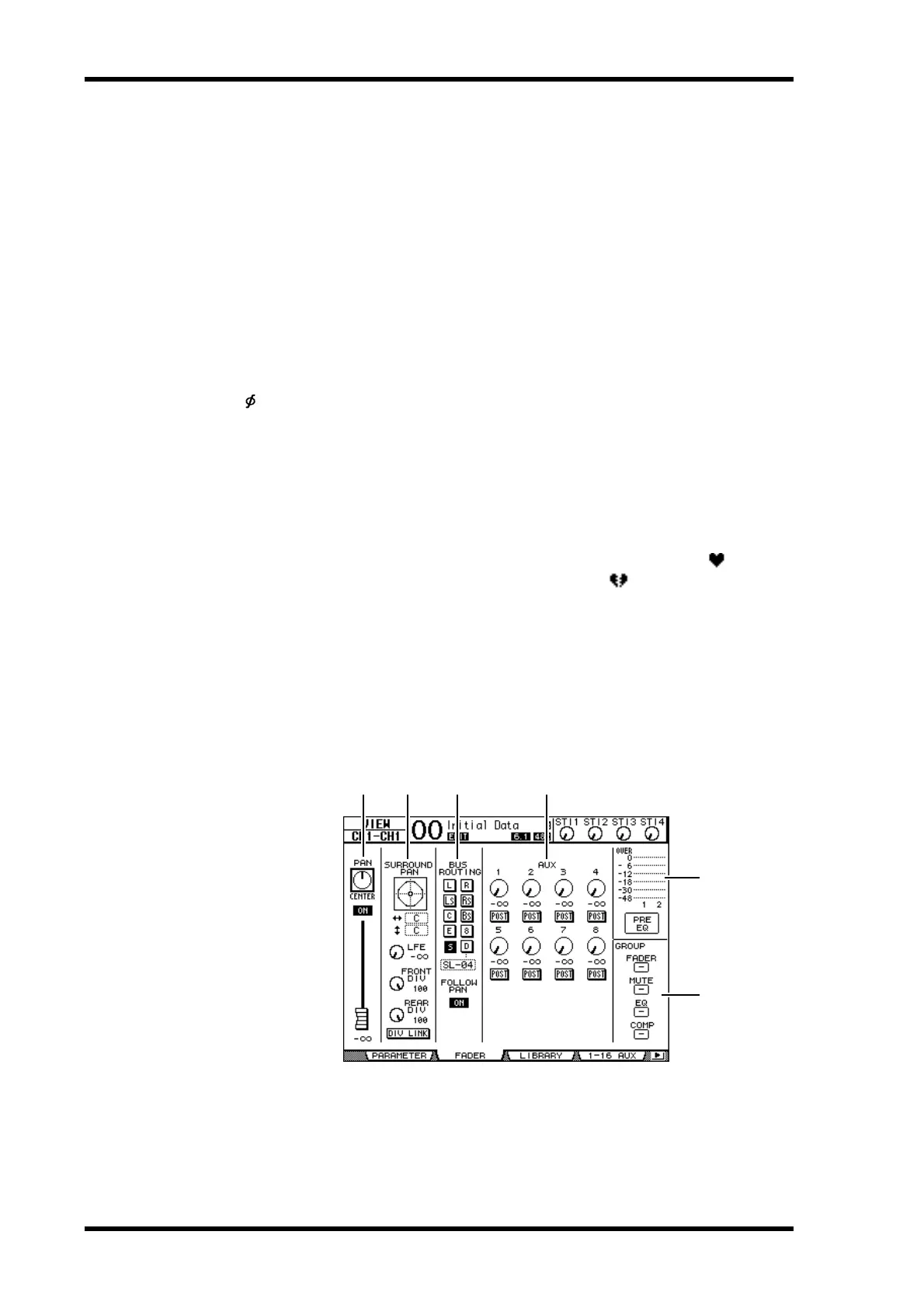

To display the View | Fader page of a certain Input Channel, use the corresponding [SEL]

button to select the desired channel, then press the DISPLAY ACCESS [VIEW] button

repeatedly.

Move the cursor to a parameter you wish to change, then rotate the Parameter wheel or

press the [INC]/[DEC] buttons to modify the setting.

A PAN/ON/Fader section

• PAN control.................. This control adjusts the currently-selected Input Channel’s Pan

parameter.

Press the [ENTER] button to reset the Pan control to Center.
