78 Chapter 7—Input Channels
01V96 Version 2—Owner’s Manual
• ON (On/Off)
This section enables you to turn the channel on or off. The channel is muted with the Off
setting.
• LEVEL
This section enables you to adjust the input level of the Input Channel signal.
•PAN
This section enables you to adjust the pan setting of the signals routed from the Input Chan-
nels to the Stereo Bus. You can also apply the pan setting to a pair of Bus channels.
• AUX (Aux Send level)
This section enables you to adjust the level of signals routed to Aux Sends 1–8. The signals
can be routed to Aux Sends from either the pre-fader or post-fader position.
• INSERT
This section enables you to patch input signals to external devices via the on-board I/O con-
nectors or I/O card, or insert the internal effect processors. You can patch any inputs, out-
puts, or I/O card channels. (Note that this is different from the INSERT I/O connectors in
the AD Input section.)
• METER
This section enables you to switch the metering position of the signal levels that are dis-
played in the Meter page. (See page 34 for more information on selecting the metering posi-
tion.)
ST IN Channels 1–4

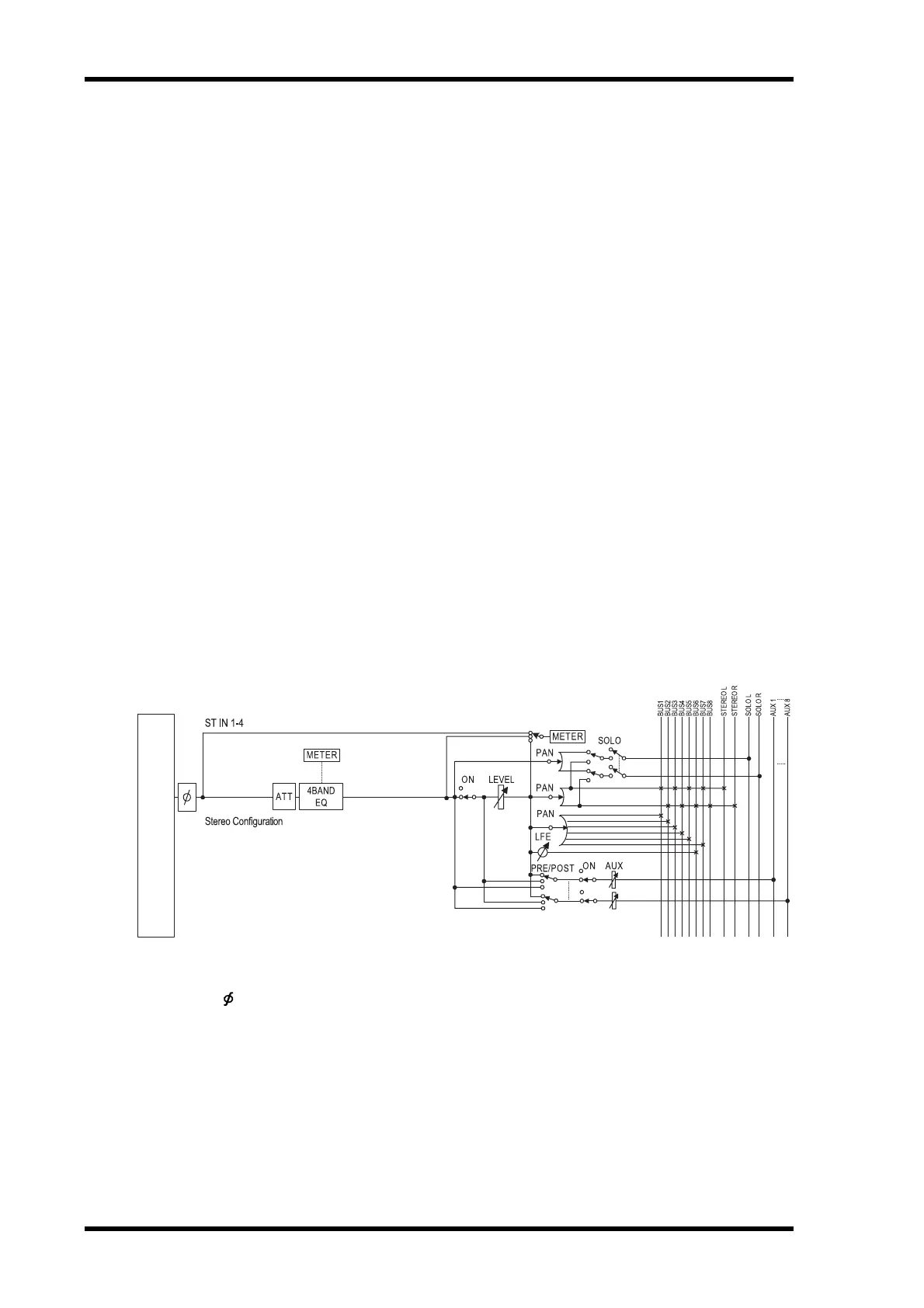

These stereo channels enable you to process stereo signals using the phase effect, attenuator,
and EQ. The following diagram illustrates the ST IN Channel 1–4 signal flow.
ST IN Channels 1–4 feature the following parameters:
• (Phase)
•ATT (Attenuator)
•4 BAND EQ (4-band equalizer)
• ON (On/Off)
• LEVEL
•PAN
• AUX (Aux Send level)
• METER
INPUT PATCH
To Next Page
