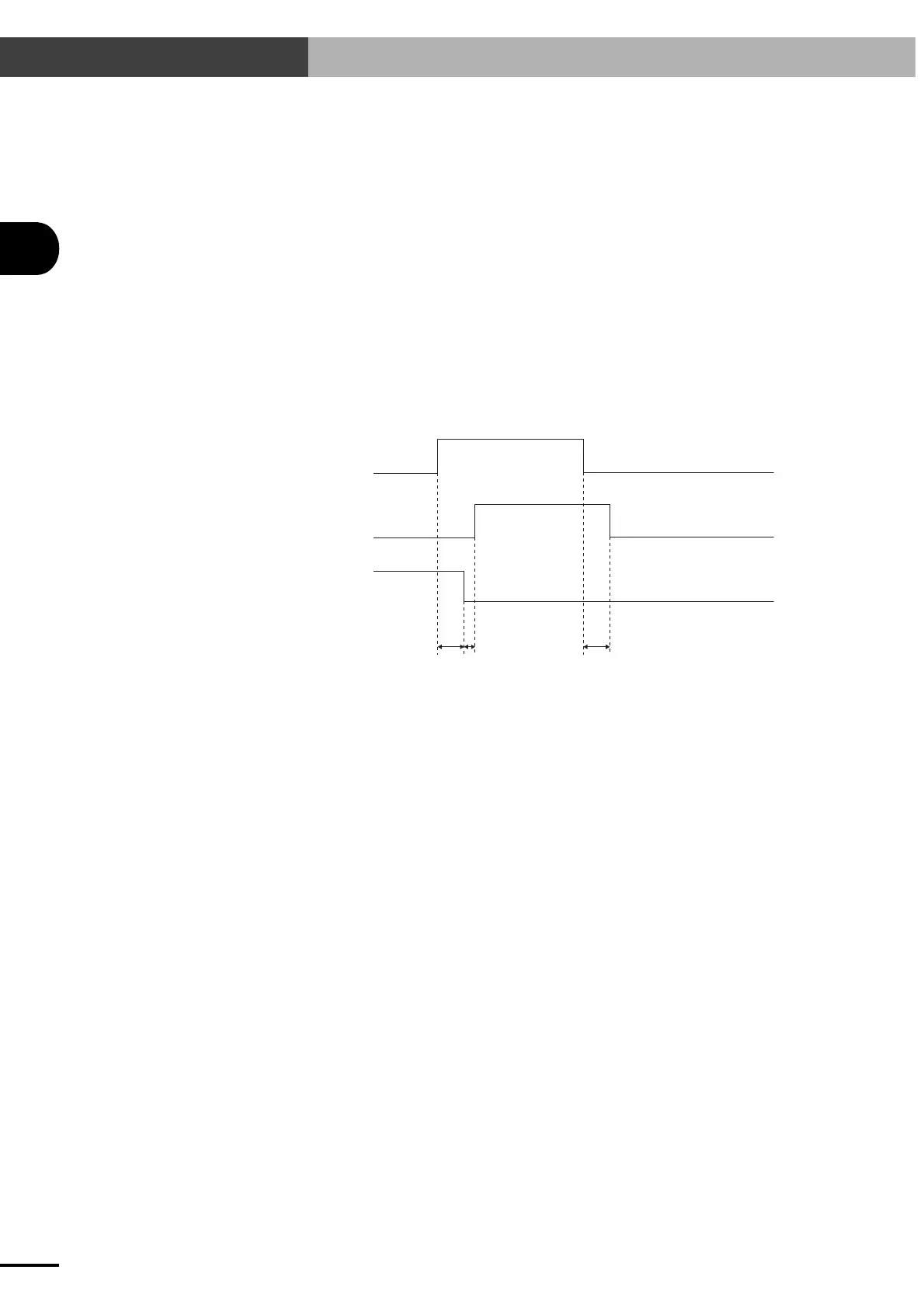

CHAPTER2 PROFIBUS Unit
e Point zone judgment method selection
The position judgment parameter is selected when the point
output selection is "2" (point zone output) or "3" (movement
point zone output).
0
1
DescriptionValue
OUT valid position
Positioning-completed pulse
MEMO
MEMO
• The Point zone judgment method selection is supported by
the following controller versions:
ERCX, SRCX : Ver. 13.64 or later DRCX : Ver. 18.64 or later
SRCP, SRCD : Ver. 24.21 or later SRCP30 : Ver. 24.30H or later
• In controller versions prior to the above versions, the "OUT
valid position" is the only point zone judgment method.
Initial value 0
!
CAUTION
Any value other than the above is handled as a "0" (Type 0).
(Example) If set to 2331, this is handled as a "0" (Type 0).
If set to 10, this is handled as a "0" (Type 0).
Moreover, if Type 2 (Point number output type) or Type 3 (Point teaching type)
is selected in controller versions not supporting the movement point zone output
while the point output selection is specified as "3", this is also processed as a "0"
(Type 0) setting.
(Example) In controller versions not supporting the movement point zone
output:
If set to 331, this is handled as a "0" (Type 0).
