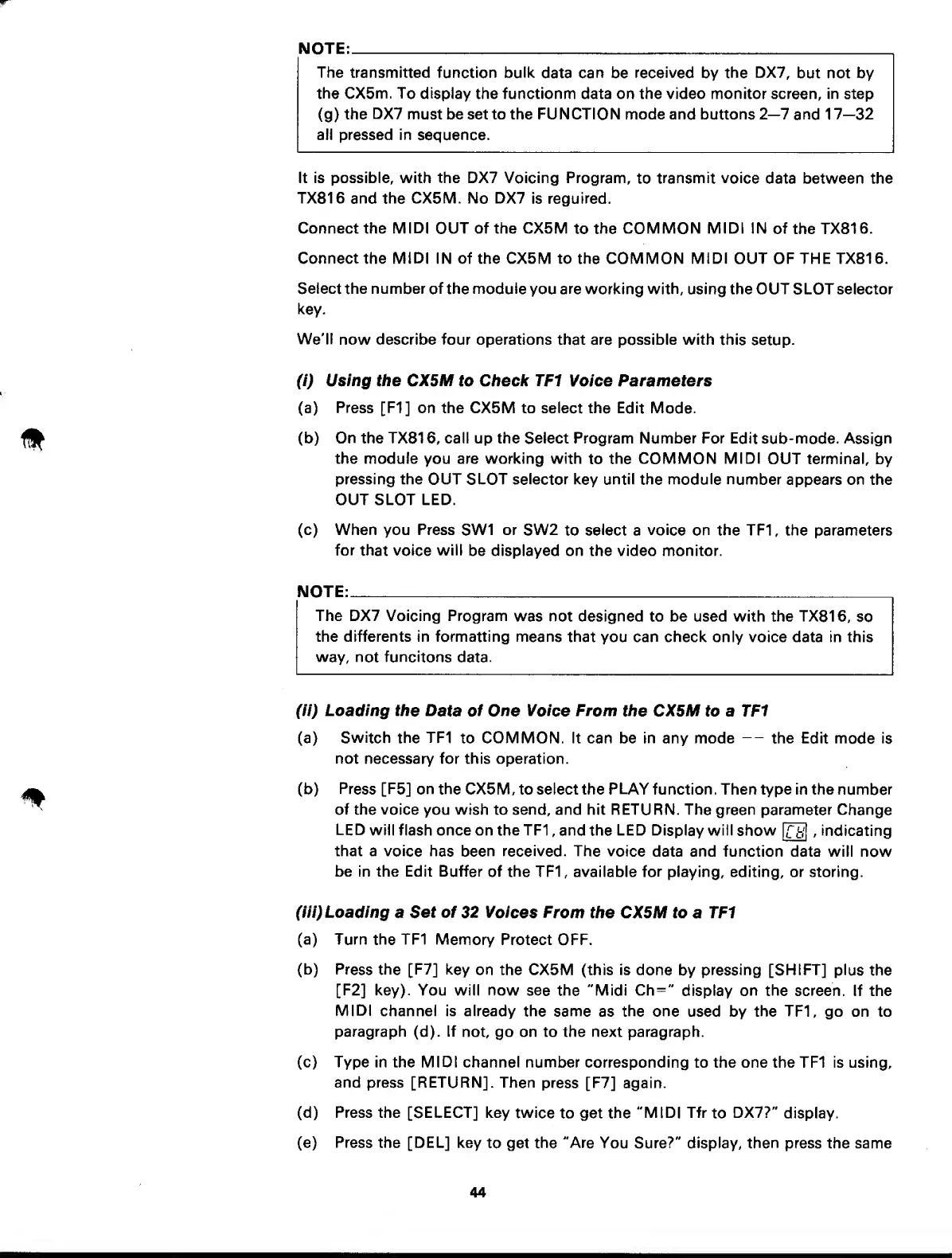

NOTE:
The transmitted
function bulk
data
can
be
received
by
the
DX7,
but not by
the
CX5m.
To display
the functionm data on the video monitor screen, in step
(g)
the
DX7
must be set to the FUNCTION mode and
buttons
2—7
and
17—32
all pressed in
sequence.
It is possible, with the DX7 Voicing
Program,
to
transmit voice
data between the
TX816
and the
CX5M.
No DX7
is
reguired.
Connect the
MIDI
OUT of the CX5M
to
the
COMMON MIDI IN
of theTX816.
Connect the MIDI IN of the CX5M to the COMMON MIDI OUT OF THE TX816.
Select the number
of the module
you
are
working with, using the OUT SLOT selector
key.
We'll
now describe four operations
that are
possible with
this
setup.
(i) Using the CX5M
to Check
TF1
Voice Parameters
(a)
Press [F1]
on the CX5M to
select
the
Edit Mode.
(b) On the TX81
6,
call up the Select Program Number For
Edit sub-mode. Assign
the module
you
are working with
to
the
COMMON MIDI
OUT terminal, by
pressing the OUT
SLOT selector key
until
the module number
appears on the
OUT SLOT LED.
(c) When you Press
SW1
or
SW2
to
select
a
voice
on the TF1 , the parameters
for
that voice
will
be displayed on the video monitor.
NOTE:
The DX7 Voicing
Program
was not designed to be used with the TX816,
so
the differents in formatting
means that
you can check only voice data in this
way, not funcitons
data.
(ii) Loading the
Data of One Voice From
the CX5M to a TF1
(a)
Switch
the
TF1
to COMMON. It can be in any mode
--
the
Edit mode is
not necessary for this operation.
(b)
Press
[F5]
on the
CX5M, to select the
PLAY
function. Then type in the
number
of
the
voice
you wish to send, and hit RETURN. The
green parameter Change
LED
will flash once on the TFl
,
and the
LED Display will
show
,
indicating
that a
voice has been received. The voice
data and function data will now
be in the Edit Buffer
of
the
TFl , available
for
playing, editing, or storing.
(Hi) Loading
a
Set of
32 Voices From
the CX5M to
a
TF1
(a) Turn
the
TFl
Memory
Protect OFF.
(b)
Press the
[F7]
key
on the CX5M (this is
done
by
pressing
[SHIFT]
plus
the
[F2] key). You will now
see the
"Midi Ch="
display on
the
screen. If the
MIDI
channel is already
the same
as
the one
used by the
TFl,
go on to
paragraph
(d).
If
not, go on to the next paragraph.
(c) Type in the MIDI channel number
corresponding to the one the TFl is using,
and press [RETURN]. Then
press [F7] again.
(d) Press the [SELECT] key
twice
to get the
"MIDI
Tfr
to
DX7?"
display.
(e) Press the [DEL] key
to get
the
"Are
You Sure?" display,
then
press the same
44
