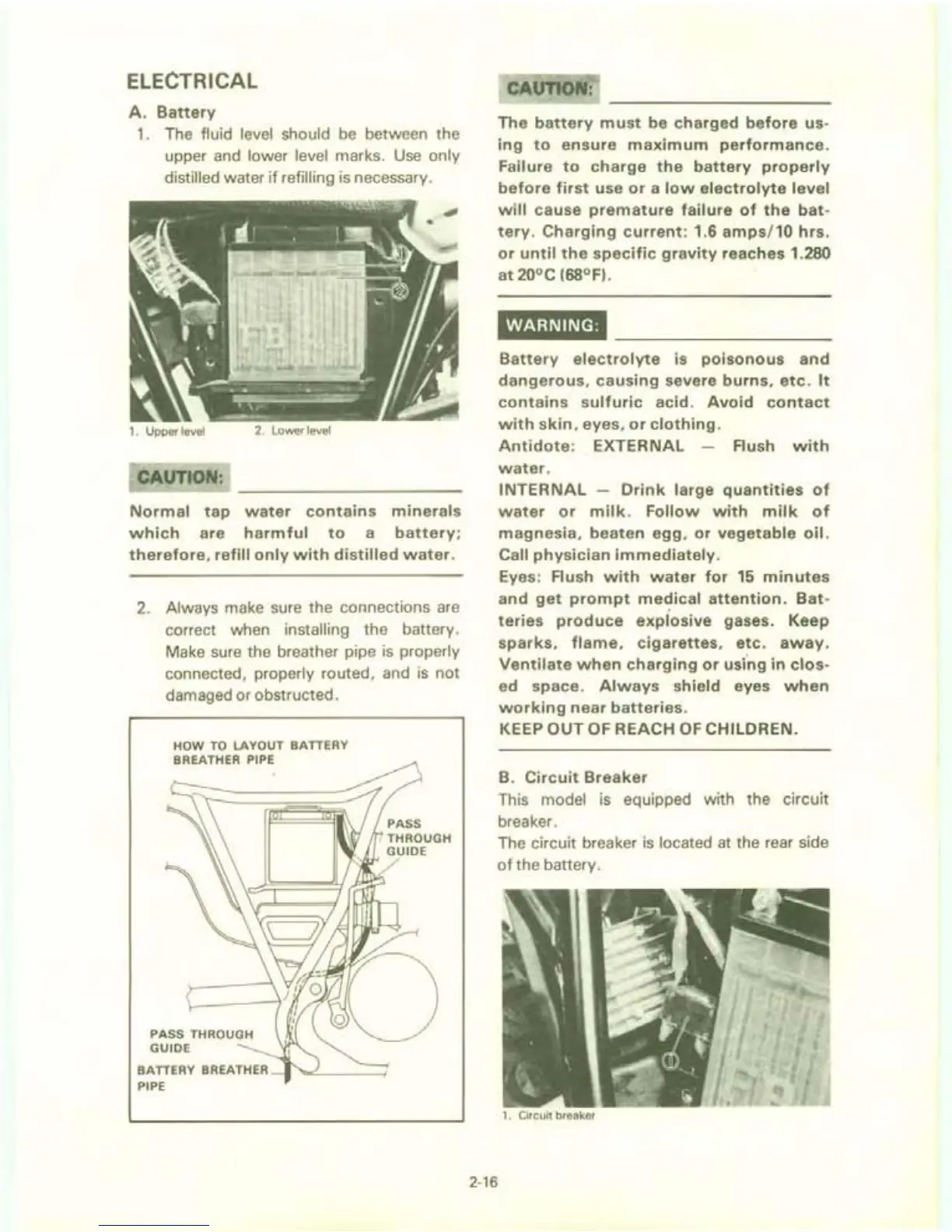

ELECTRICAL
A. Battery
1. The fluid level should be between the
upper and
lower level marks. Use only
distilled water if refilling is necessary.
1. Upper level
2. Lower level
CAUTION:
Normal tap water contains minerals
which are harmful to a battery;
therefore, refill only with distilled water.
2. Always make sure the cormections are
correct when installing the battery.
Make sure the breather pipe
is properly
connected, properly routed, and
is not
damaged or obstructed.
HOW TO LAYOUT BATTERY
BREATHER
PIPE
PASS
THROUGH
GUIDE
PIPE
2-16
The battery must be charged before us-
ing to ensure maximum performance.
Failure to charge the battery properly
before first use or a low electrolyte level
will cause premature failure of the bat-
tery. Charging current: 1.6 amps/10 hrs.
or until the specific gravity reaches 1.280
at 20°C (68°F).
WARNING:
Battery electrolyte is poisonous and
dangerous, causing severe burns, etc. It
contains sulfuric acid. Avoid contact
with skin, eyes, or clothing.
Antidote: EXTERNAL - Flush with
water.
INTERNAL - Drink large quantities of
water or milk. Follow with milk of
magnesia, beaten egg, or vegetable oil.
Call physician immediately.
Eyes: Flush with water for 15 minutes
and get prompt me~ical attention. Bat-
teries produce explosive gases. Keep
sparks, flame, cigarettes, etc. away.
Ventilate when charging or usfng in clos-
ed space. Always shield eyes when
working near batteries.
KEEP OUT OF REACH OF CHILDREN.
B. Circuit Breaker
This model is equipped with the circuit
breaker.
The circuit breaker is located at the rear side
of the battery.
1. Circuit breaker
