Yamaha XT550J - Muffler, Footrest, and Brake Pedal; Oil Hoses

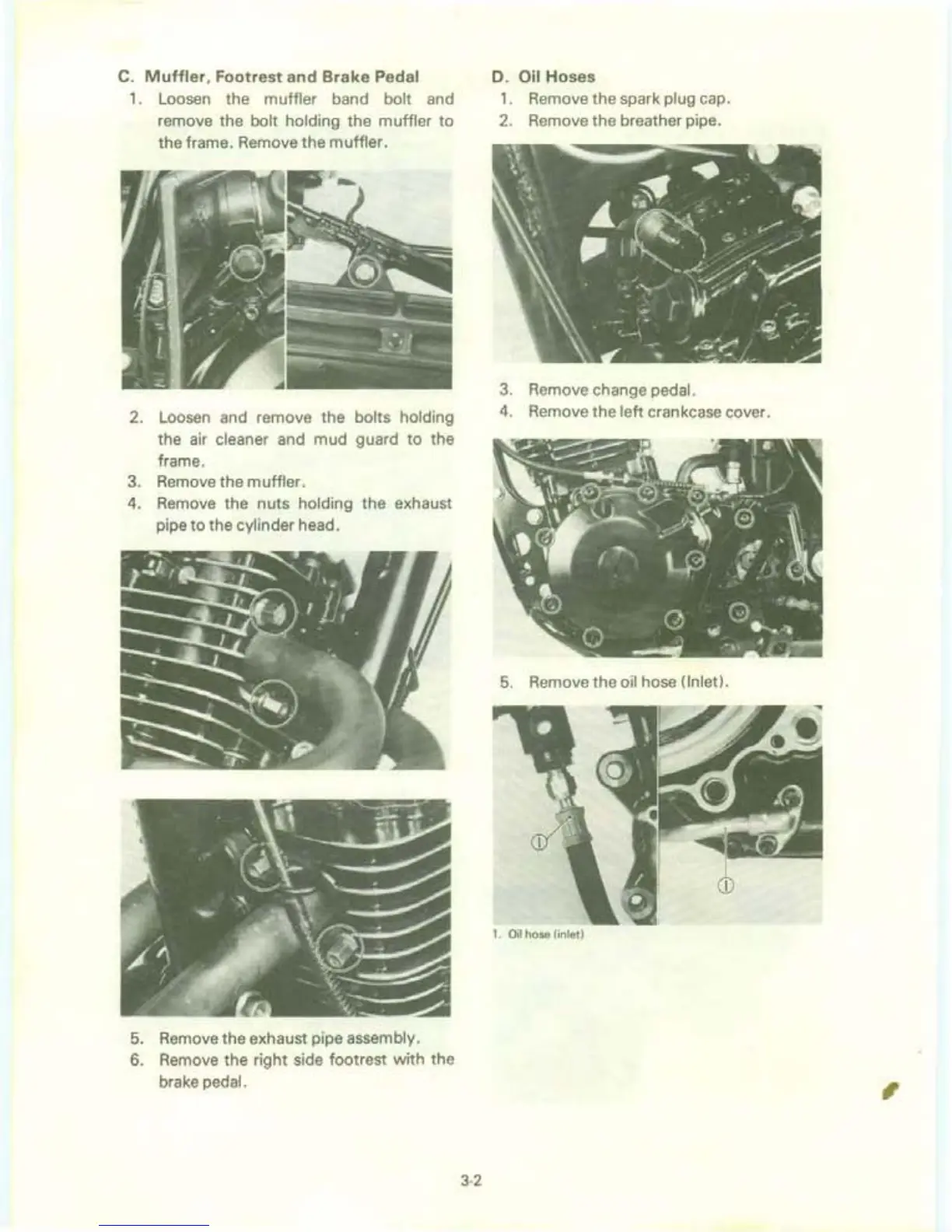

C. Muffler, Footrest and Brake Pedal
1. Loosen the muffler band bolt and
remove the bolt holding the muffler
to
the frame. Remove the muffler.
2. Loosen and remove the bolts holding
the air cleaner and mud guard
to the
frame.
3. Remove the muffler.
4. Remove the nuts holding the exhaust
pipe
to the cylinder head.
5. Remove the exhaust pipe assembly.
6. Remove the right side footrest with the
brake pedal.
3-2
D. Oil Hoses
1. Remove the spark plug cap.
2. Remove the breather pipe.
3. Remove change pedal.
4. Remove the left cran kcase cover.
5. Remove the oil hose (Inlet).
1. Oil hose (inlet)
,
