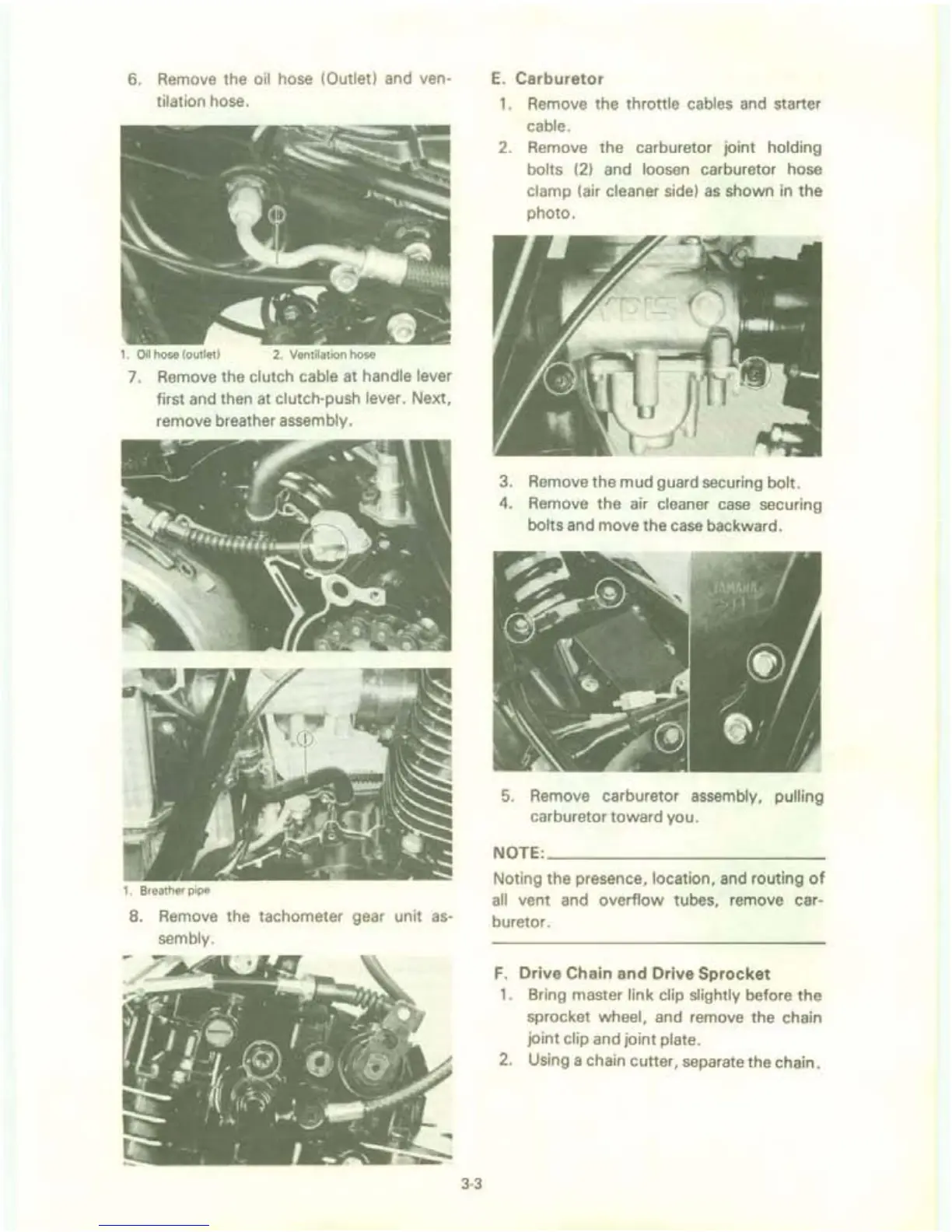

6. Remove the oil hose (Outlet) and ven-
tilation hose.
1. Oil hose (outlet)
2. Ventilation hose
7. Remove the clutch cable at handle lever
first and then at clutch-push lever. Next,
remove breather assembly.
1. Breather pipe
8. Remove the tachometer gear unit as-
sembly.
3-3
E. Carburetor
1. Remove the throttle cables and starter
cable.
2. Remove the carburetor joint holding
bolts
(2) and loosen carburetor hose
clamp (air cleaner side)
as shown in the
photo.
3. Remove the mud guard securing bolt.
4. Remove the air cleaner case securing
bolts and move the case backward.
5. Remove carburetor assembly, pulling
carburetor toward you.
NOTE: ______________________ __
Noting the presence, location, and routing of
all vent and overflow tubes, remove car-
buretor.
F. Drive Chain and Drive Sprocket
1. Bring master link clip slightly before the
sprocket wheel, and remove the chain
joint
clip and joint plate.
2. Using a chain cutter, separate the chain.
