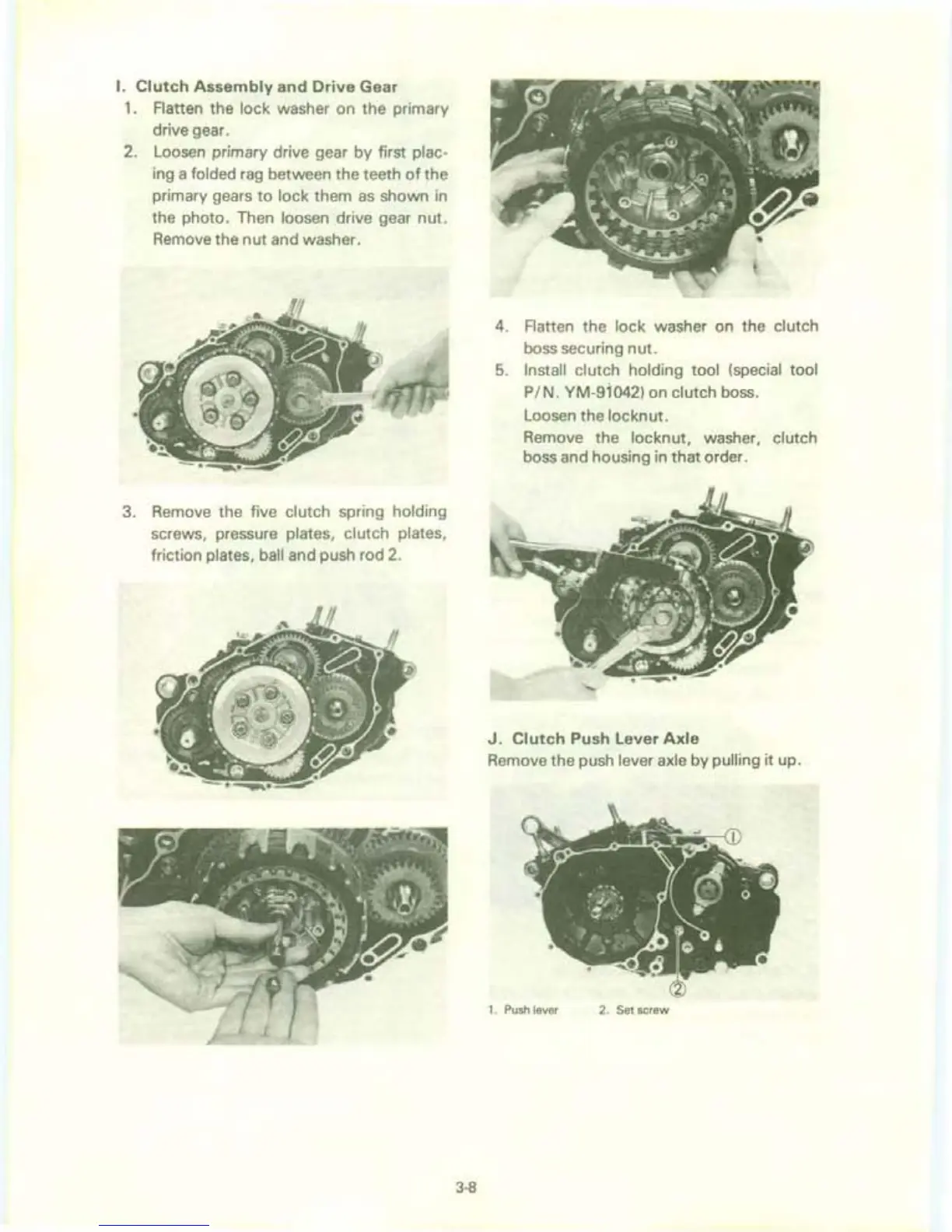

J.
Clutch Assembly and Drive Gear
1.
Flatten the lock washer on the primary
drive gear.
2.
Loosen primary drive gear
by
first plac-
ing a folded
rag
between the teeth
of
the
primary gears
to
lock them
as
shown
in
the photo. Then loosen drive gear nut.
Remove the
nut
and washer.
3. Remove the five clutch spring holding
screws, pressure plates, clutch plates,
friction plates,
ball and push rod 2.
3-8
4.
Flatten the lock washer on the clutch
boss securing nut.
5.
Install clutch holding tool (special tool
PIN. YM-91042) on clutch boss.
Loosen the locknut.
Remove the locknut, washer, clutch
boss and housing
in
that order.
J.
Clutch Push Lever Axle
Remove the push lever axle by pulling it up.
1.
Push
lever 2. Set screw
