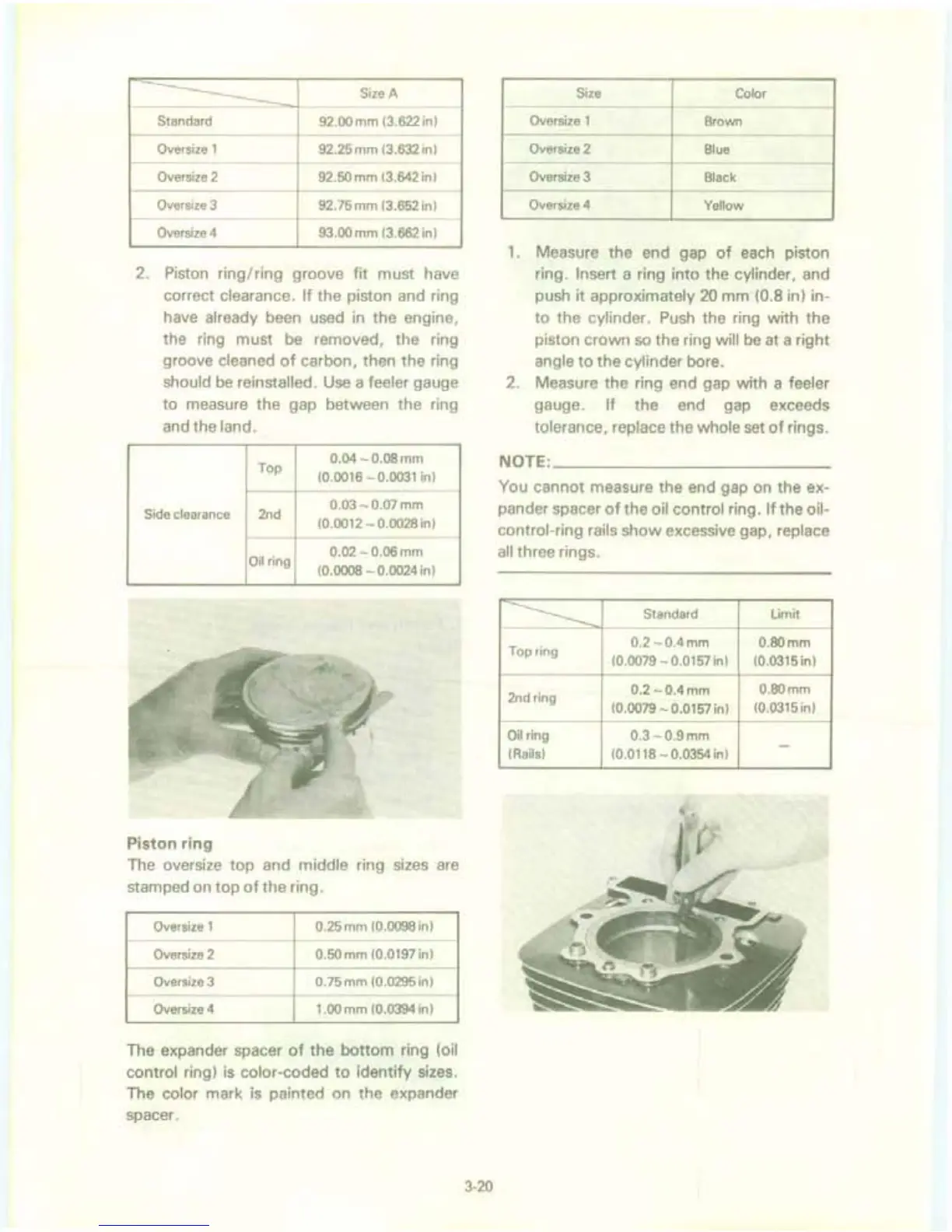

Size A
Standard
92.00
mm
(3.622 in)
Oversize 1 92.25
mm
(3.632 in)
Oversize 2 92.50
mm
(3.642 in)
Oversize 3
92.75mm
(3.652 in)
Oversize 4
93.00mm
(3.662 in)
2.
Piston ring/ring groove
fit
must have
correct clearance.
If the piston and ring
have already been used in the engine,
the ring must
be
removed, the ring
groove cleaned
of
carbon, then the ring
should
be
reinstalled.
Use
a feeler gauge
to measure the gap between the ring
and the land.
Top
0.04 - 0.08
mm
(0.0016 - 0.0031 in)
Side clearance 2nd
0.03 - 0.07
mm
(0.0012 - 0.0028 in)
Oil ring
0.02 - 0.06
mm
(0.0008 - 0.0024 in)
Piston ring
The oversize
top
and middle ring sizes
are
stamped on
top
of
the
ring.
Oversize 1
0.25mm
(0.0098 in)
Oversize 2
0.50
mm
(0.0197 in)
Oversize 3
0.75mm
(0.0295 in)
Oversize 4
1.00
mm
(0.0394 in)
The expander spacer
of
the bottom ring (oil
control ring)
is
color-coded
to
identify sizes.
The color mark
is
painted on the expander
spacer.
3-20
Size
Color
Oversize 1
Brown
Oversize 2
Blue
Oversize 3
Black
Oversize 4
Yellow
1.
Measure the end gap
of
each
piston
ring.
Insert a ring into the cylinder, and
push
it
approximately
20
mm (0.8 in) in-
to
the cylinder.
Push
the ring with the
piston crown
so
the ring will
be
at a right
angle
to
the cylinder bore.
2. Measure the ring end gap with a feeler
gauge.
If the end gap exceeds
tolerance, replace the
whole set
of
rings.
NOTE:
___________
_
You cannot measure the end gap
on
the ex-
pander spacer
of
the oil control ring. If the oil-
control-ring
rails
show
excessive gap, replace
all
three rings.
~
Standard Limit
Top ring
0.2-0Amm
0.80mm
(0.0079 - 0.0157 in)
(0.0315 in)
2nd ring
0.2-0.4mm
0.80mm
(0.0079 - 0.0157 in)
(0.0315in)
Oil
ring
O.3-0.9mm
-
(Rails)
(0.0118 - 0.0354
in)
