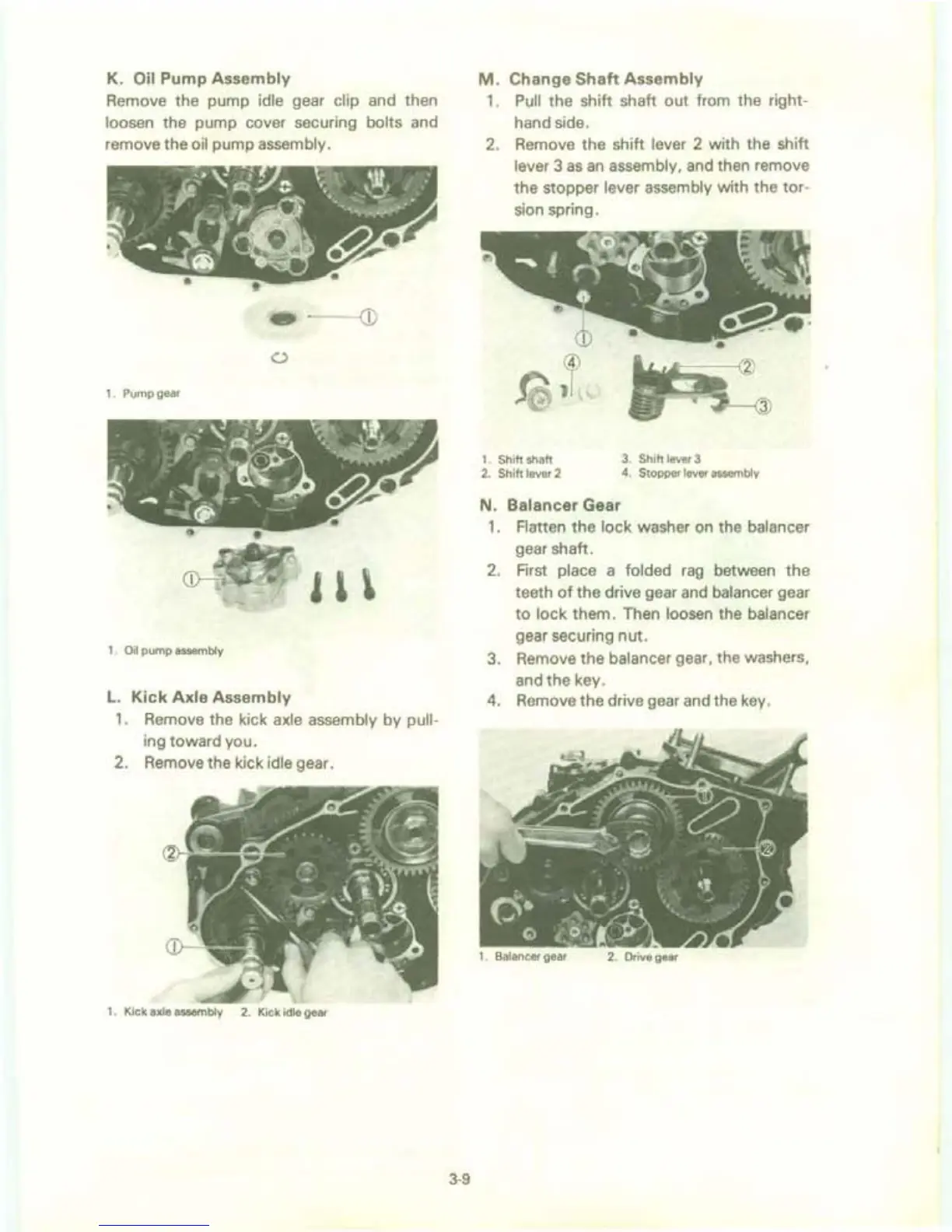

K. Oil Pump Assembly
Remove the pump idle gear clip and then
loosen the pump cover securing bolts and
remove the
oil pump assembly.
, . Pump gear
, .
Oil pump assembly
L. Kick Axle Assembly
1. Remove the kick axle assembly by pull-
ing toward you.
2. Remove the kick
idle gear.
,. Kick axle assembly 2. Kick idle gear
3-9
M. Change Shaft Assembly
1. Pull the shift shaft out from the right-
hand side.
2. Remove the shift lever 2 with the shift
lever 3 as an assembly, and then remove
the stopper
lever assembly with the tor-
sion spring.
,. Shift shaft
2.
Shift lever 2
N. Balancer Gear
3. Shift lever 3
4. Stopper lever assembly
1. Flatten the lock washer on the balancer
gear shaft.
2. First place a folded rag between the
teeth
of the drive gear and balancer gear
to lock them. Then loosen the balancer
gear securing nut.
3. Remove the balancer gear, the washers,
and the key.
4. Remove the drive gear and the key.
,. Balancer gear
2. Drive gear
