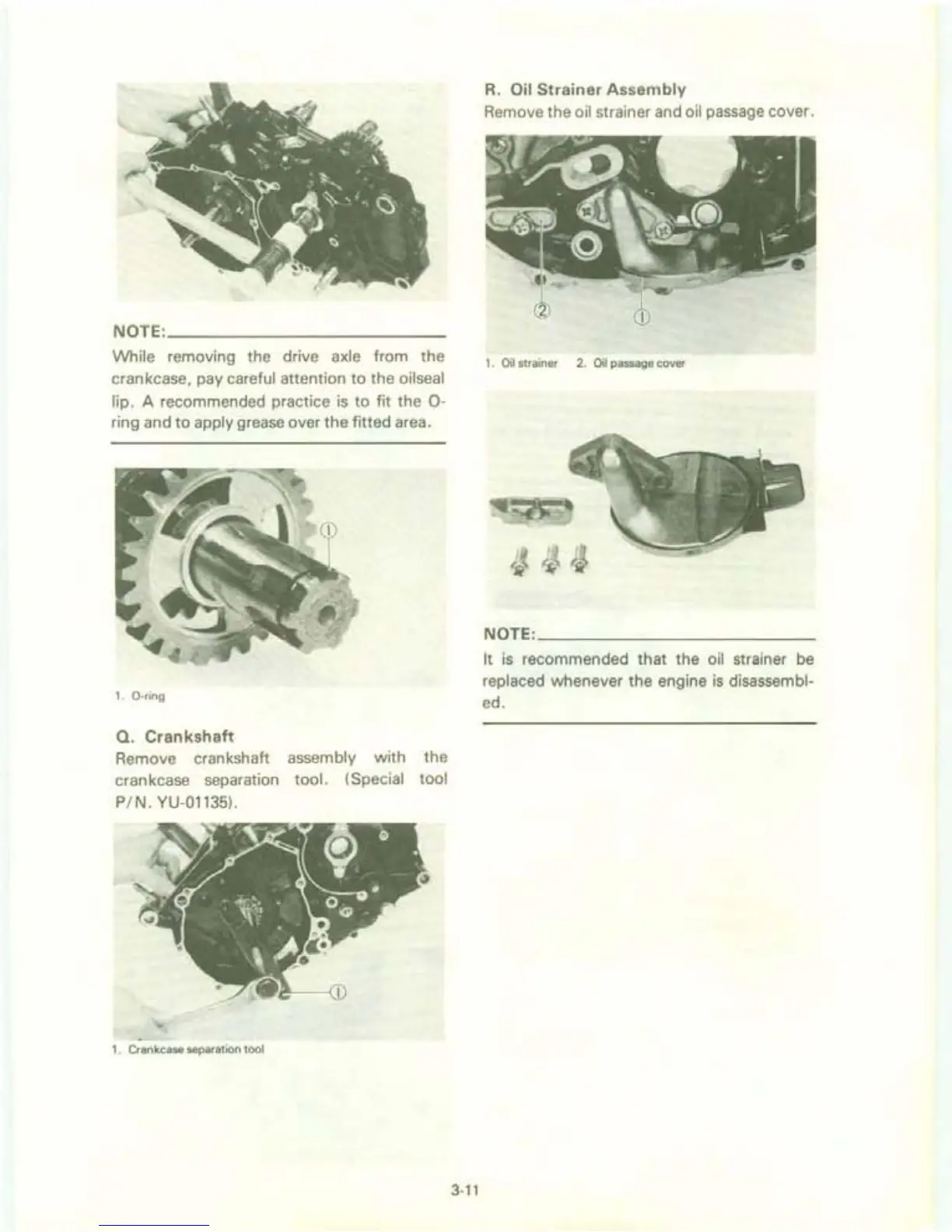

Yamaha XT550J - Crankshaft; Oil Strainer Assembly

NOTE: ___________ _
While removing the drive axle from the
crankcase, pay careful attention
to the oilseal
lip. A recommended practice is to fit the 0-
ring and to apply grease over the fitted area.
1. O-ring
Q. Crankshaft
Remove crankshaft assembly with the
crankcase separation
tool. (Special tool
PIN. YU-01135).
1. Cran kcase separation tool
3-11
R. Oil Strainer Assembly
Remove the oil strainer and oil passage cover.
1. Oil strainer 2. Oil passage cover
NOTE: ___________ _
It is recommended that the oil strainer be
replaced whenever the engine is disassembl-
ed.
