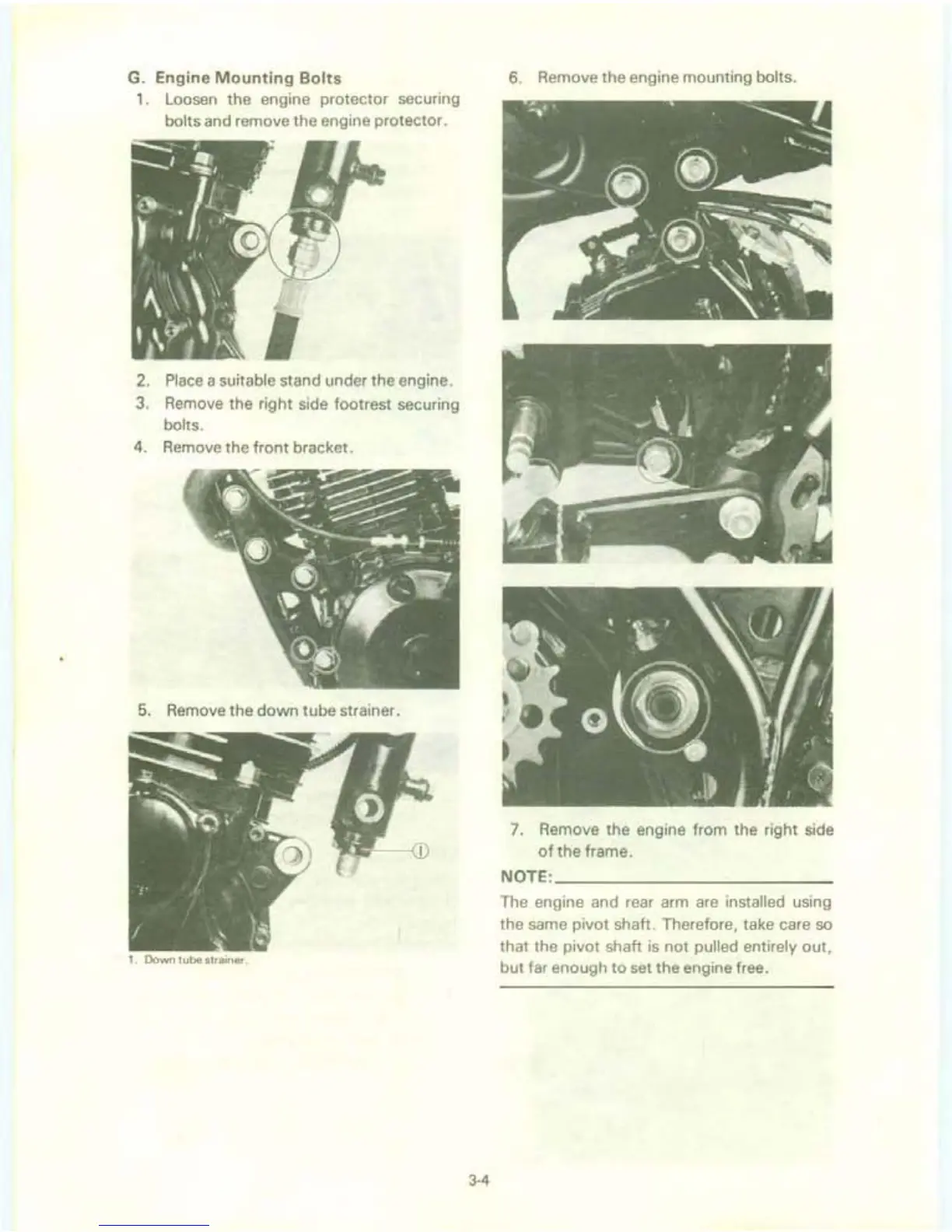

G. Engine Mounting Bolts
1. Loosen the engine protector securing
bolts and remove the engine protector.
2. Place a suitable stand under the engine.
3. Remove the right side footrest securing
bolts.
4. Remove the front bracket.
5. Remove the down tube strainer.
1. Down tube strainer.
3-4
6. Remove the engine mounting bolts.
7. Remove the engine from the right side
of the frame.
NOTE: ______________________ __
The engine and rear arm are installed using
the same pivot shaft. Therefore, take care so
that the pivot shaft is not pulled entirely out,
but far enough to set the engine free.
