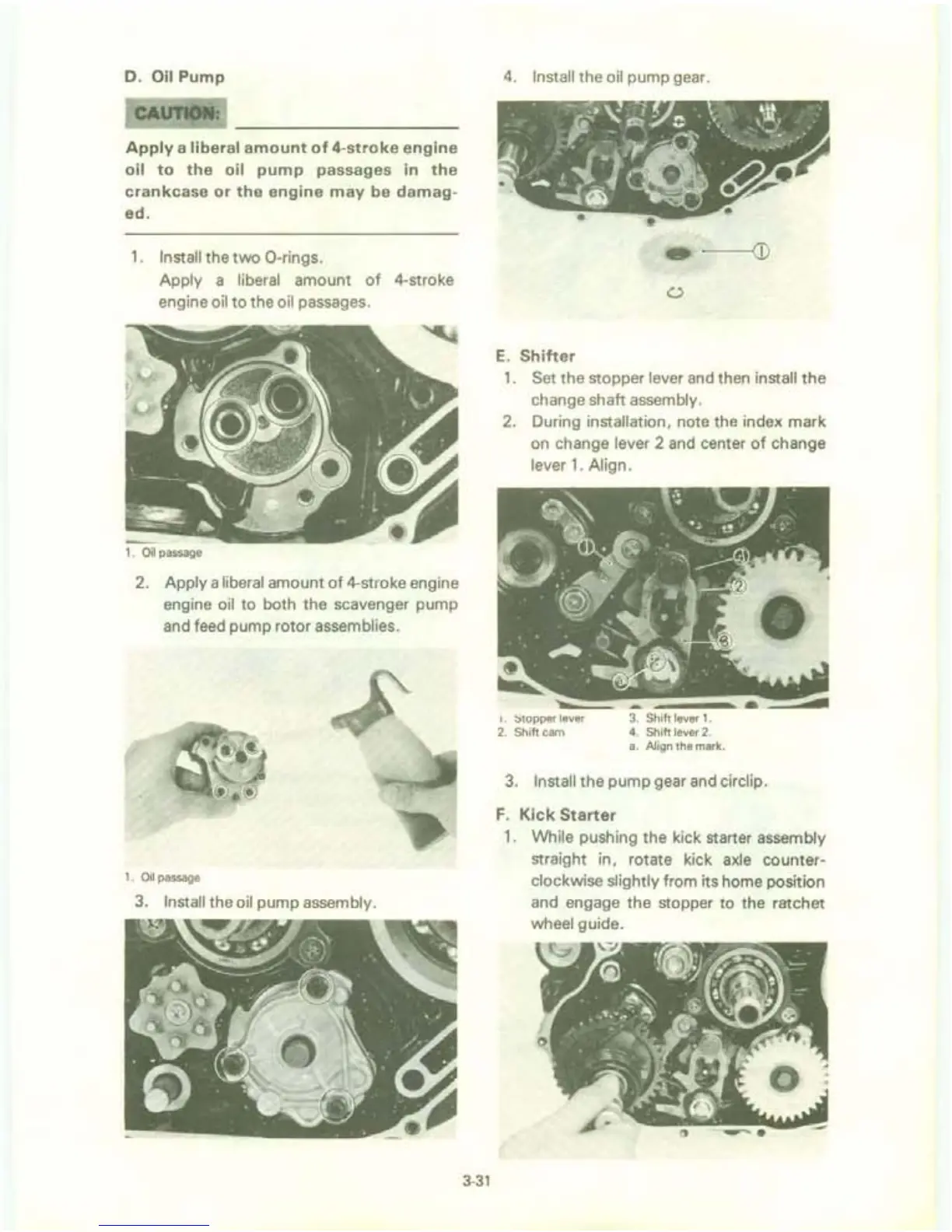

D. Oil
Pump
Apply
a
liberal
amount
of
4-stroke
engine
oil
to
the
oil
pump
passages
in
the
crankcase
or
the
engine
may
be
damag-
ed.
1.
Install the
two
O-rings.
Apply a liberal amount
of
4-stroke
engine
oil
to
the oil passages.
1.
Oil
passage
2.
Apply a liberal amount
of
4-stroke engine
engine
oil to both the scavenger pump
and feed pump rotor
assemblies.
1.
Oil
passage
3.
Install the oil pump assembly.
3-31
4.
Install the oil pump gear.
-
--CD
E.
Shifter
1.
Set the stopper lever and then install
the
change shaft assembly.
2.
During installation, note the index mark
on change
lever 2
and
center
of
change
lever
1.
Align.
I . :stopper lever
2.
Shift
cam
3. Shift lever 1.
4.
Shift lever
2.
a. Align the mark.
3.
Install the pump gear and circlip.
F.
Kick
Starter
1.
While pushing the kick starter assembly
straight in, rotate kick axle counter-
clockwise
slightly from its home position
and engage the stopper to the ratchet
wheel guide.
