Yamaha XT550J - Page 76

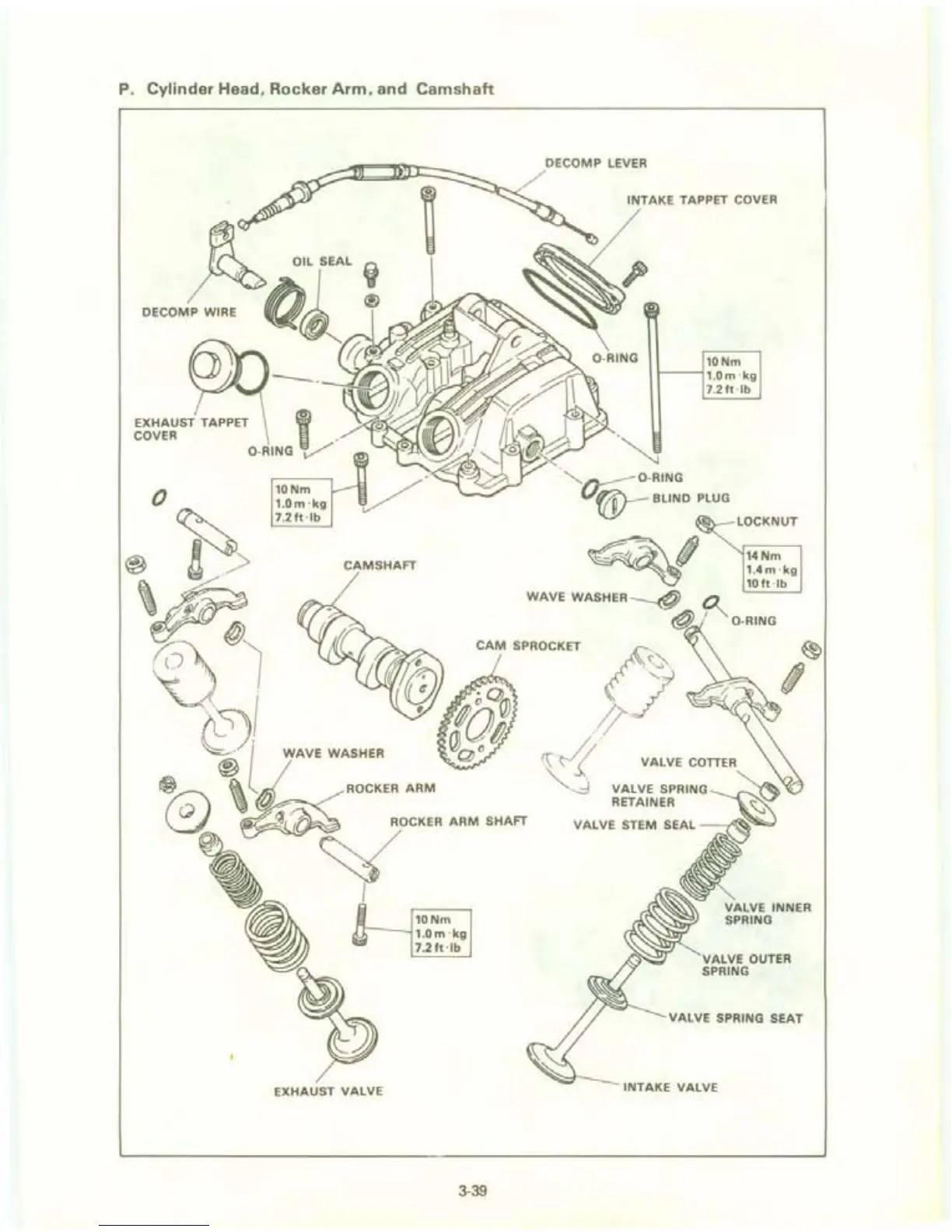

P. Cylinder Head, Rocker Arm, and Camshaft
CAMSHAFT
10Nm
r----J 1.0 m . kg
7. 2ft · lb
EXHAUST VALVE
3-39
DECaMP LEVER
INTAKE TAPPET COVER
10Nm
1----11 .0 m . kg
7.2ft · lb
LOCKNUT
14Nm
1.4m - kg
10ft - lb
WAVE WASHER---@ ~
@ .' a-RING
VALVE SPRING SEAT
INTAKE
VALVE
