Intake Manifold
5-68 BY Service Manual
© 2009 Yanmar Marine International
8. Ensure seal in charge air pipe is not damaged
and is in place. Connect charge air pipe
(Figure 5-133, (4)) and bracket
(Figure 5-133, (5)). Install four screws
(Figure 5-133, (3)) and tighten to 9.5 N·m
(84 in.-lb)

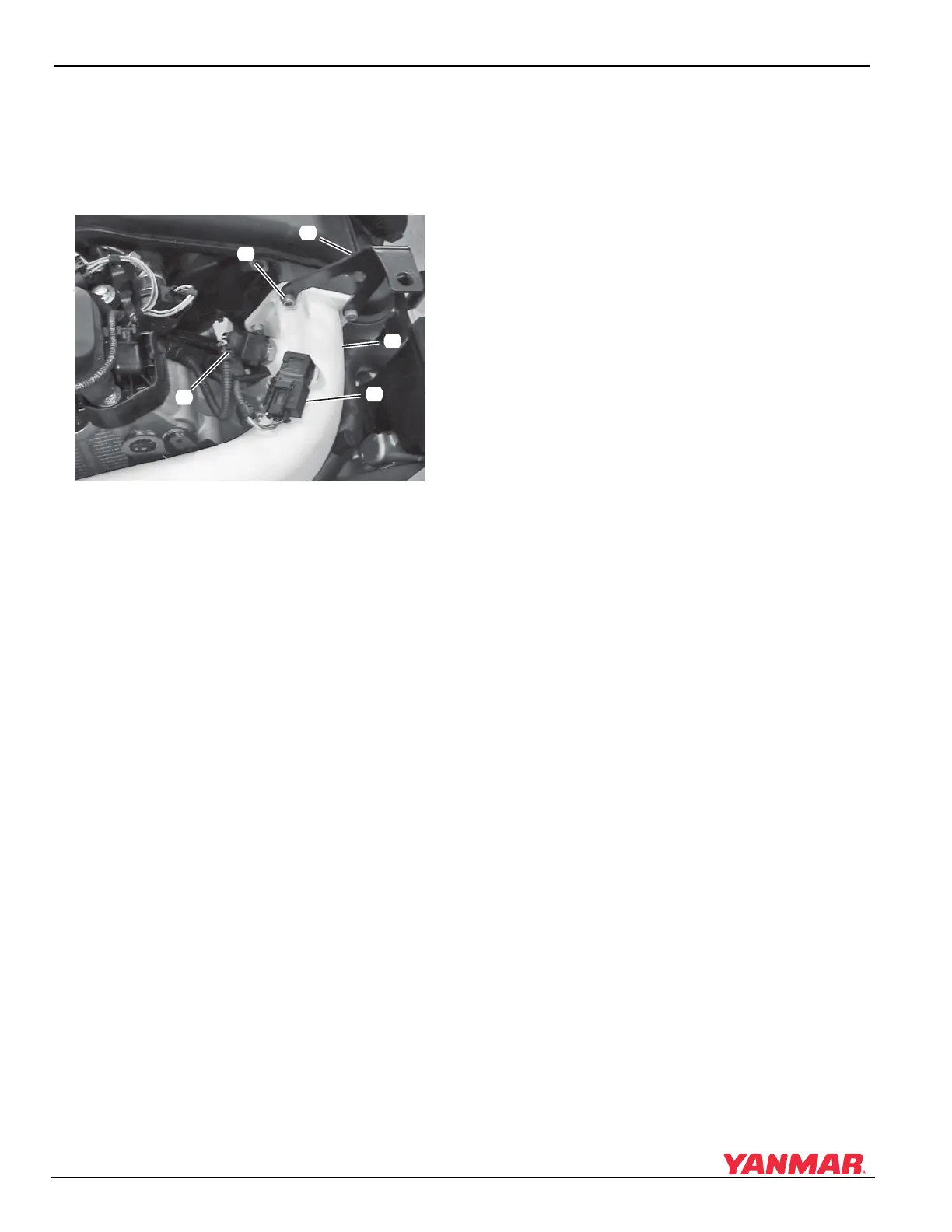

Figure 5-133
Figure 5-133
9. Connect electrical connectors to charge air
pressure sensor (Figure 5-133, (1)) and charge
air temperature sensor (Figure 5-133, (2)).
10. Secure injector harness to intake manifold and
connect to fuel injectors.
11. Bleed the fuel system. See Bleed the Fuel
System on page 6-22.
