Yanmar 6BY2 - 4 BY2 (Stern Drive)

GENERAL SERVICE INFORMATION

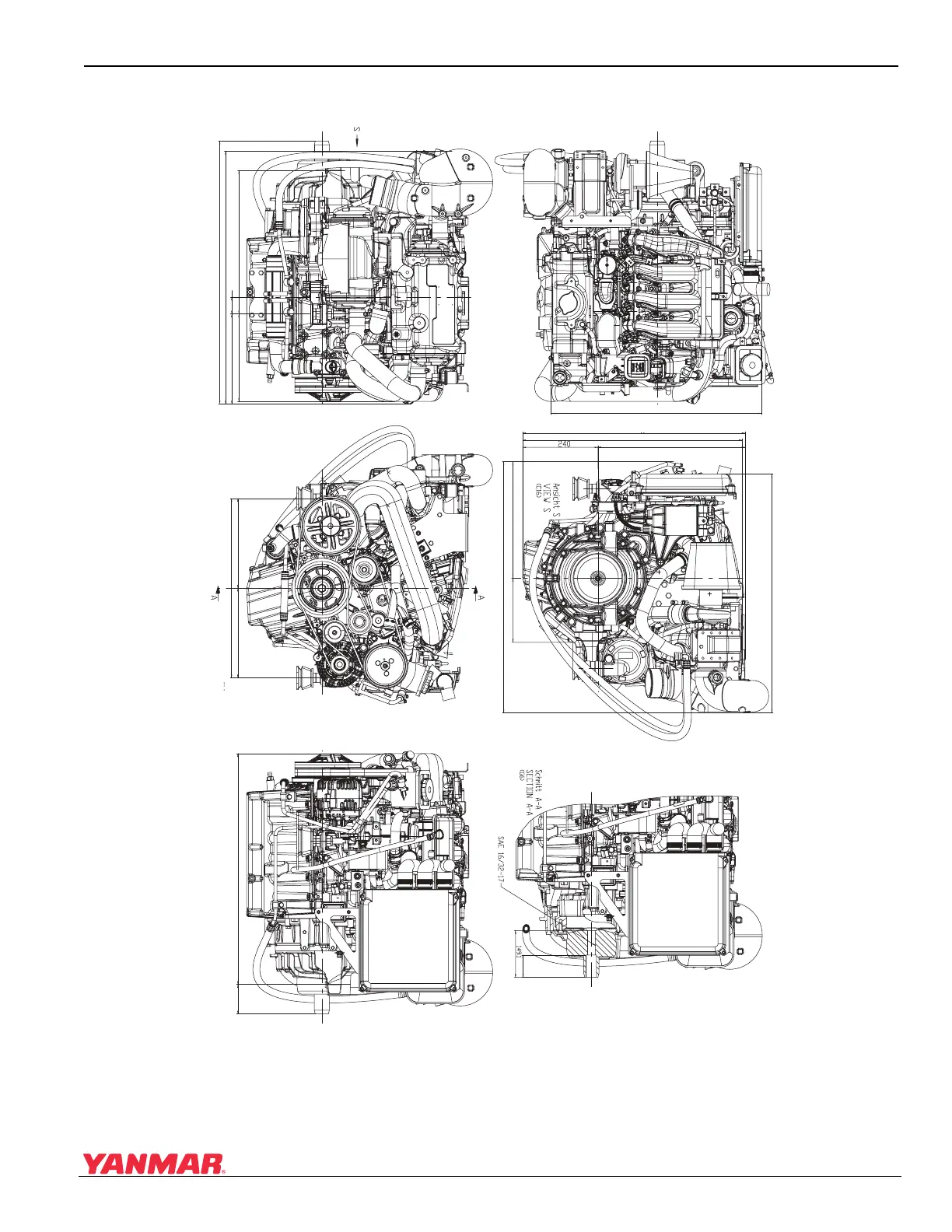

Engine Outline Drawings
12/05
BY Service Manual
3-5
© 2009 Yanmar Marine International
4BY2 (Stern Drive)
Figure 3-2
Figure 3-2
0006531
806 (31.73)
839 (33.03)
54 (2.13)
287 (11.3)
279 (10.98)
457.5 (18.01)
671 (26.41)
709 (27.91)
700 (27.56)
469 (18.46)
761 (29.96)
149.1 (5.87)
737 (29.02)
572 (22.52)
286 (11.26)
286 (11.26)
373 (14.69)
802 (31.57)
204 (8.03)
94.2
(3.71)
71.1
(2.8)
